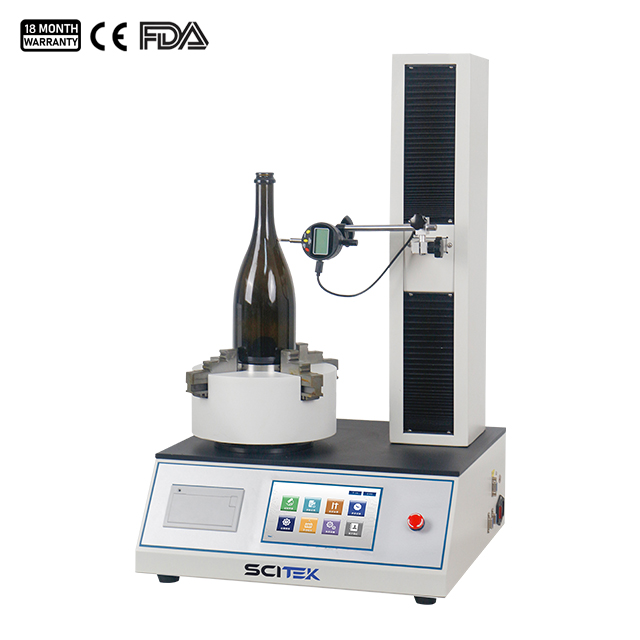

AD-127 bottle perpendicularity tester is suitable for measuring the perpendicularity (deviation) of ampoule, vial, medicine bottle, cosmetic bottle, ect.
Principle:
Fix the bottom of the bottle on the rotating plate in horizontal, make the mouth of the bottle touch the dial gauge, and rotate 360° to read the maximum value and minimum one. 1/2 of the difference between the maximum and minimum is the perpendicularity value.
Bottle Perpendicularity Tester Feature:
7-inch touch interface is convenient to operate.
Group and analyze data automatically: maximum, minimum, average value.
Dual test modes: vertical axis deviation and circle run-out.
360° measurement deviation of compensation is to ensure the accuracy.
The bottle perpendicularity tester is equipped with micro-printer.
Functions of curve display, storage of data, statistics are essential.
GMP management of users’ grading authority is advanced.
Bottle Perpendicularity Tester Specifications:
| Model | AD-127 |
|---|
| Test Range | 0-12.7mm/0.5″ |
| Resolution | 0.001mm/0.00005″ |
| Diameter of Sample | 5mm - 190mm |
| Height of Sample | 5mm - 400mm |
| Speed of Electric Chunk | 2r/min |
| Speed of Testing Head | 300mm/min (Electronic) |
| Configuration | Standard: Instrument, Measuring Device, Micro-Printer |
| Optional: Professional Software, Communication Cable |
| Shipping Size (WxDxH)(mm) | 350x500x600 |
| N.W/G.W (kg) | 42/63 |
Standard:
This bottle perpendicularity tester conforms to many national and international standards:
GB/T 8452-2008, GB/T 2639, QB/T 2357, QB/T 1868, YBB00332002-2015, YBB00332003-2015, YBB00032004-2015.
Why Bottle Perpendicularity Measurement Matters
Misaligned bottles can cause blockages in filling machines.
Label application may be uneven.
Unstable stacking affects storage and transportation safety.
Appearance defects lead to negative consumer perceptions.
