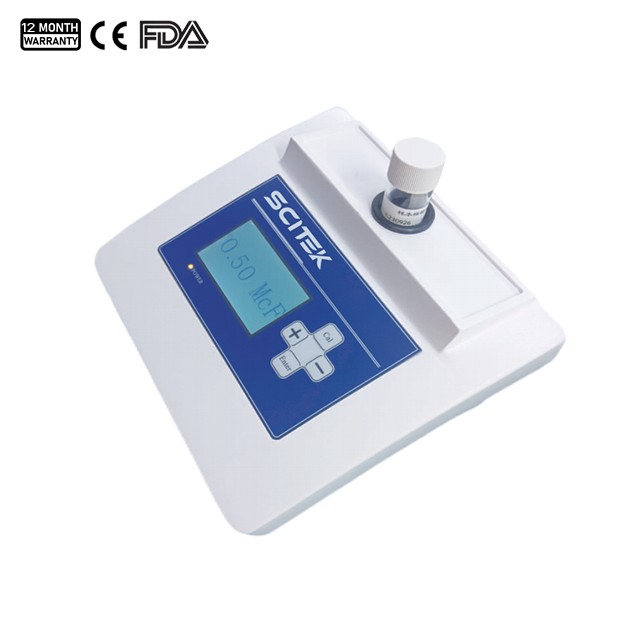

Benchtop Nephelometer

Benchtop Nephelometer Application:

The NEP-01 Nephelometer is designed to measure the turbidity of microbial suspensions, with a

measurement range equivalent to McFarland standards from 0.0 to 4.0. This instrument can be used

to determine inoculum density for the MCS-X Microbial ID/AST System.

Benchtop Nephelometer Feature:

1. The collection accuracy in turbidity standard bottle test: MCF (McFarland turbidity units)

0.5 standard tube measurement error: ≤±0.1 MCF.

2. The collection repeatability in turbidity standard bottle test: MCF 0.8 standard tube measurement error: CV≤5%.

3. The measurement range is 0.0~4.0 MCF: linear correlation coefficient: R²≥0.95.

4. Transmittance stability: within 30min, the change of the detected value: ≤±0.1 MCF.

5. Simple Operation Process.

Benchtop Nephelometer Specification:
