7-inch colored capacitive touch screen with high resolution (1024*600) and sensitivity.
Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
It supports wireless bluetooth printing. Real-time data transfer to mobile phone via bluetooth is optional.
Smart electrode status display to ensure accurate use.
Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3 point calibration.
Can store 2000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel

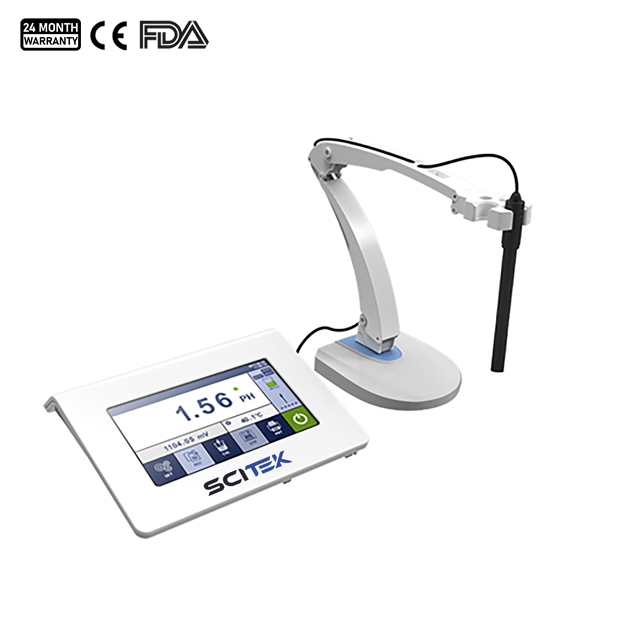

Model | PH-B10 | |
---|---|---|
pH | Measurement Range | (-2.000 ~ 18.000)pH |
Resolution | 0.01 pH | |
Accuracy | Electrode: ±0.02 pH | |
Input Current | ≤2×10-12 A | |
Input Impedance | ≥1×1012 Ω | |
Stability | ±0.01 pH/3h | |
Temperature Compensation | (0 ~ 100)℃, auto; (-5 ~ 110)℃, auto or manual | |
mV | Measurement Range | (-1999.00 ~ 1999.00) mV |
Resolution | 1 mV | |
Accuracy | ±0.1% FS | |
Temperature | Range | (-5 ~ 110)℃ |
Resolution | 0.1℃ | |
Accuracy | ±0.5℃ | |
Calibration | 1, 2, 3 point, auto | |
Buffer | Europe & USA, NIST, China standards | |
Other Parameters | Display | 7-inch colored capacitive touch screen |
Data Storage | 1000 sets | |
Power | 12V (110-220, 50-60Hz adapter) | |
Communication Interface | USB, RS232, Bluetooth | |
Size & Weight | 240×170×70mm/600g | |
Working Conditions | Temperature | 5 ~ 40 ℃ |
Humidity | 5-85% | |
IP Grade | IP54 | |
Meter Kits | 1) pH meter | |
2) Electrode holder | ||
3) Two-in-one electrode that consists of pH combination electrode and temperature probe. | ||
4) pH buffer solution | ||
5) Power adapter | ||
External Size | 215x170x40mm | |
Shipping Size | 475x430x75mm | |
Net /Gross Weight (kg) | 0.6/3 |
