Model | PHO-P320 | |
---|---|---|
PH | Range | -2.000-20.000pH |
Resolution | 0.001,0.01,0.1pH, selectable | |
Accuracy | 0.002pH | |
Calibration Points | 1 to 5 points | |
pH Buffer Options | USA, NIST, DIN, 2 custom buffers | |
Ion | Range | 0.001-19999 (depending on the range of ISE) |
Resolution | 0.001,0.01,0.1,1 | |
Accuracy | ±0.5% FS.(monovalent), ±1% FS.(divalent) | |
Measurement Units | ppm, mg/L,mol/L, mmol/L | |
Calibration Points | 2to 5 points | |
Calibration Solutions | 0.001,0.01,0.1,1,10,100,1000,10000 | |
ORP | mV Range | ±1999.9mV |
Relative mV Range | ±1999.9mV | |
Resolution | 0.1, 1mV, selectable | |
Accuracy | ±0.2mV | |
Calibration Points | 1 point | |
Temperature | Range | 0~105°C/32~221°F |
Resolution | 0.1°C/0.1°F | |
Accuracy | ±0.5°C/±0.9°F | |
Offset Calibration | 1 point, reading ±10°C | |
Other Specifications | temperature Compensation | 0~100°C, manual or automatic |
Stability Criteria | Low or high | |
Calibration Due Alarm | 1 to 31 days or off | |
Slope/Offset Display | Yes | |
Hold Function | Manual or auto-endpoint | |
Auto-Off | 10, 20 or 30 minutes after the last key is pressed | |
Memory | 500 data sets | |
Communication Interface | USB | |
Connector | BNC,3.5mm jack socket | |
Display | Custom LCD (80×60mm) | |
Power Requirements | 3× 1.5V AA batteries or DC5V power adapter | |
Battery Life | Approximately 150 hours (Turn off the backlight) | |
Sizes(W×D×H)(mm) | 170×85×30 | |
Shipping Size (W×D×H)(mm) | 485x165x360 | |
N.W./G.W. (kg) | 0.3/2 |

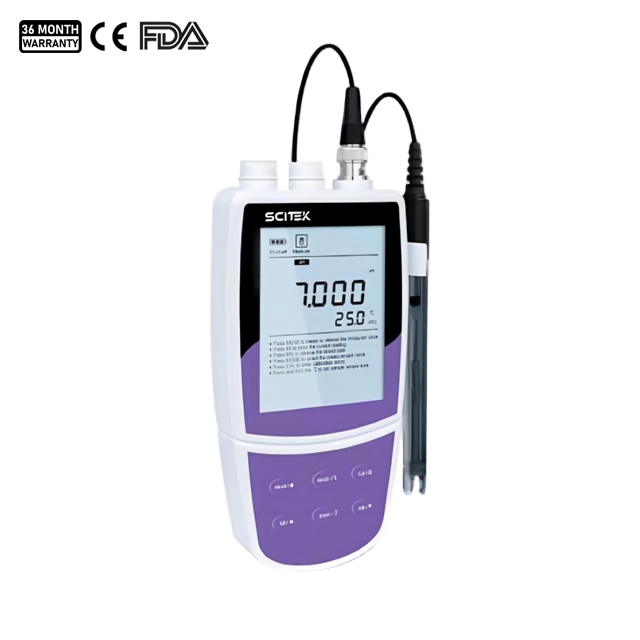

The wide pH measurement range of this portable meter ensures accurate readings for all types of samples.
High accuracy and customizable resolution to meet the specific measurement needs ensure accurate results.
The portable pH/ORP meter can be fully calibrated to improve the accuracy and reliability of your measurements.
With the ability to measure ions in ppm, mg/L, mol/L and mmol/L, the instrument is ideal for analyzing ion concentrations in a wide range of samples.
Reliable ORP measurements ensure accurate monitoring, which is essential for assessing water quality and chemical processes.
The ortable pH/ORP meter features a memory capacity of up to 500 data sets, a slope/offset display, improved workflow efficiency and data management capabilities.
The compact design ensures portability for on-the-go measurements in a variety of settings.
