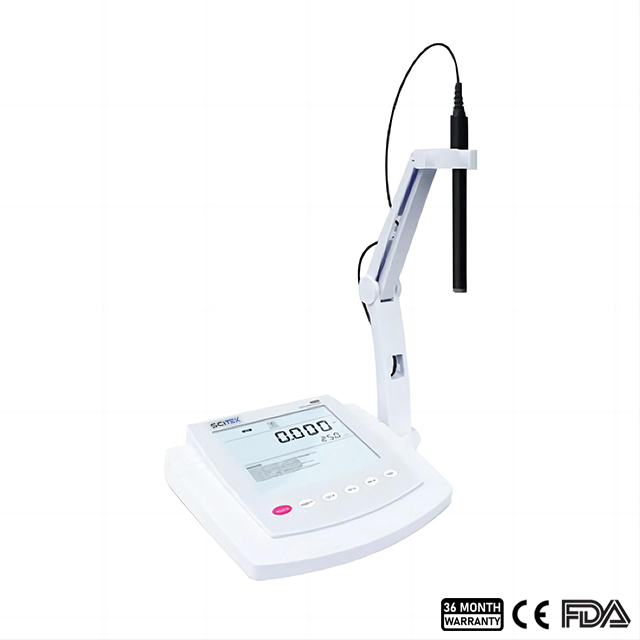

Benchtop Ion Meter 2 to 5 Points Calibration

Model : ION-B931

Range : 0.001~19999 (depending on the range of ISE)
Accuracy : ±0.5% F.S. (monovalent), ±1% F.S. (divalent)
Calibration Points : 2 to 5 points
Sizes(W×D×H)(mm) : 210×188×60
Intuitive, simple operation and high accuracy measurements are provided by the compact, affordable benchtop ion meter. Flexible measurement of pH or ion concentration in a reliable measuring system.
Availability:
Quantity:

Benchtop Ion Meter Specifications:

ModelION-B931
Ion
Range0.001~19999 (depending on the range of ISE)
Resolution0.001, 0.01, 0.1, 1
Accuracy±0.5% F.S. (monovalent), ±1% F.S. (divalent)
Measurement Unitsppm, mg/L, mol/L, mmol/L
Calibration Points2 to 5 points
Calibration Solutions0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
ORP
mV Range±1999.9mV
Resolution0.1, 1mV, selectable
Accuracy±0.2mV
Temperature
Range0~105°C/32~221°F
Resolution0.1°C/0.1°F
Accuracy±0.5°C/±0.9°F
Offset Calibration1 point, reading ±10°C
Other Specifications
Temperature Compensation0~100°C, manual or automatic
Stability CriteriaLow or high
Calibration Due Alarm1 to 31 days or off
Slope/Offset DisplayYes
Hold FunctionManual or auto-endpoint
Memory500 data sets
Communication InterfaceUSB
ConnectorBNC, 3.5mm jack socket
DisplayCustom LCD(125x100mm)
Power RequirementsDC5V power adapter
Sizes(W×D×H)210×188×60
Shipping Size (W×D×H)(mm)300x250x200
N.W./G.W. (kg)1.5/2

Benchtop Ion Meter Features:

The benchtop ion meter accurately measures the concentration of many ions, including ammonium, bromine, cadmium, calcium, chlorine, copper, cyanide, fluoride, and lead. Measurements are accurate to 0.5% F.S., making it ideal for precision experiments.

  1. Precision laboratory ion meter with large backlit LCD.

  2. 2 to 5 point calibration, including 8 concentration calibration points.

  3. Direct reading of ion concentration values, eliminating tedious conversions and calculations.

  4. Choose from ppm, mg/L and mol/L units.

  5. Automatic temperature compensation ensures accurate measurements over the full range.

  6. Automatic endpoint lockout keeps stable readings for easy viewing and recording.

  7. Calibration due reminder, prompting the user to calibrate the meter regularly.

  8. Automatic electrode diagnostics with calibration point and slope display.

  9. Setup menu with customizable settings for multiple functions

  10. Reset function automatically restores the meter to factory default settings.

  11. Large memory, can store 500 sets of data.

  12. USB interface, easy to transfer data
