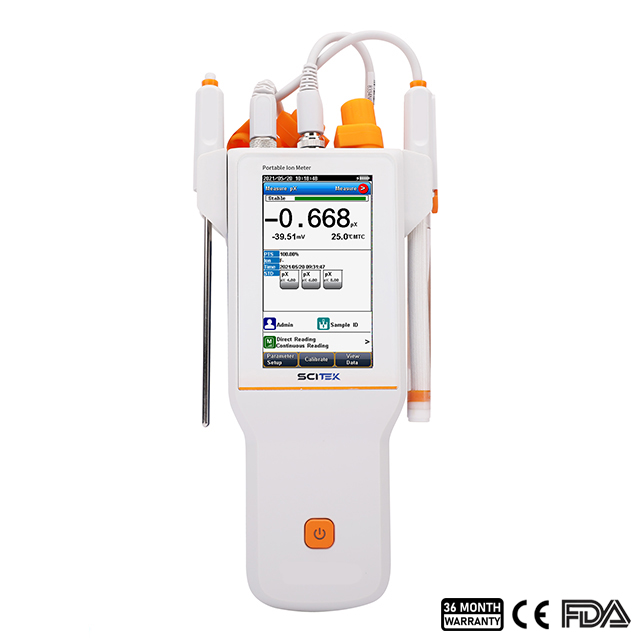

Portable Ion Meter, 8 Points Calibration

Model : ION-P510

pH Range : -2.000 to 20.000 pH
Accuracy : ±0.002 pH

Calibration Points : Up to 8

Sizes(W×D×H)(mm) : 90×255×40

This portable ion meter is a water and dust resistant, IP65 rated meter suitable for portable or on-site measurements.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Portable Ion Meter Specifications:

Model		ION-P510
Parameters		pH/ISE/Temp.(mV/ORP/pX)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
	Calibration Points	Up to 8
	Standard Customization	Yes
	Calibration Reminder	Yes
	Standard Recognition	USA, NIST, MERK, JIS, GB and DIN buffers
	Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	±0.1 mV or ±0.03% of
	Accuracy	reading whichever is greater
	EH ORP Mode	Yes
	ORP Calibration Points	1 custom point (relative mV)
pX	Range	-2.000 to 20.000 pX
	Resolution	0.1, 0.01, 0.001 pX
	Accuracy	±0.002 pX
	Calibration Points	Up to 6
ISE	Range	1E-9 to 9.999E9
	Units	mol/L, mmol/L, g/L, mg/L, μg/L
	Resolution	Up to 4 significant digits
	Accuracy	±0.3%
	Calibration Points	Up to 8
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Relative Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data Management	Data Storage	1000 Groups
Data Management	GLP Features	Yes
Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	4-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC, scanner
Display Options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600 sec., off
	IP Rating	IP65
	Date and Time	Yes
General	Electricity	Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
	Sizes(W×D×H)	90×255×40
	Shipping Size (W×D×H)(mm)	410×330×165
	N.W./G.W. (kg)	0.5/5.5

Portable Ion Meter Features:

Portable ion meter's portability allows it to be easily transported to different locations and its user-friendly interface makes it accessible to many users. In addition, it may have features such as automatic temperature compensation and data storage functions.

This is an advanced multi-functional portable ion meter, and its portability makes transporting it to different locations easy. And it offers unmatched accuracy, portability and ease of use, making it the first choice for measuring ion concentrations in various applications.

High accuracy: It provides highly accurate measurements of ion concentrations in solution, making it ideal for laboratory and pharmaceutical research.
High quality: The high-quality housing material gives it a long service life
Versatile: Portable ion meter can measure pH, ions, mV/ORP, pX, ISE, Temperature, etc., in liquid or semi-solid materials.
Easy to use: Simple operation interface, supports customized setting parameters
Intelligent data storage: Measurement data can be saved automatically and easily transferred to electronic devices.

Model	ION-P510
Parameters	pH/ISE/Temp.(mV/ORP/pX)
pH	Range	-2.000 to 20.000 pH
Resolution	0.1, 0.01, 0.001pH
Accuracy	±0.002 pH
Calibration Points	Up to 8
Standard Customization	Yes
Calibration Reminder	Yes
Standard Recognition	USA, NIST, MERK, JIS, GB and DIN buffers
Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
Resolution	0.1, 0.01 mV
Accuracy	±0.1 mV or ±0.03% of
reading whichever is greater
EH ORP Mode	Yes
ORP Calibration Points	1 custom point (relative mV)
pX	Range	-2.000 to 20.000 pX
Resolution	0.1, 0.01, 0.001 pX
Accuracy	±0.002 pX
Calibration Points	Up to 6
ISE	Range	1E-9 to 9.999E9
Units	mol/L, mmol/L, g/L, mg/L, μg/L
Resolution	Up to 4 significant digits
Accuracy	±0.3%
Calibration Points	Up to 8
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
Unit	ºC, ºF
Resolution	0.1
Relative Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts	Reading, Stable, Locked
Temp. Compensation	ATC, MTC
Data Management	Data Storage	1000 Groups
GLP Features	Yes
Inputs	pH Electrode	BNC(Q9)
Temp. Probe	4-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC, scanner
Display Options	Backlight	Yes
Auto Shutdown	300, 600, 1200, 1800, 3600 sec., off
IP Rating	IP65
Date and Time	Yes
General	Electricity	Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Sizes(W×D×H)	90×255×40
Shipping Size (W×D×H)(mm)	410×330×165
N.W./G.W. (kg)	0.5/5.5
