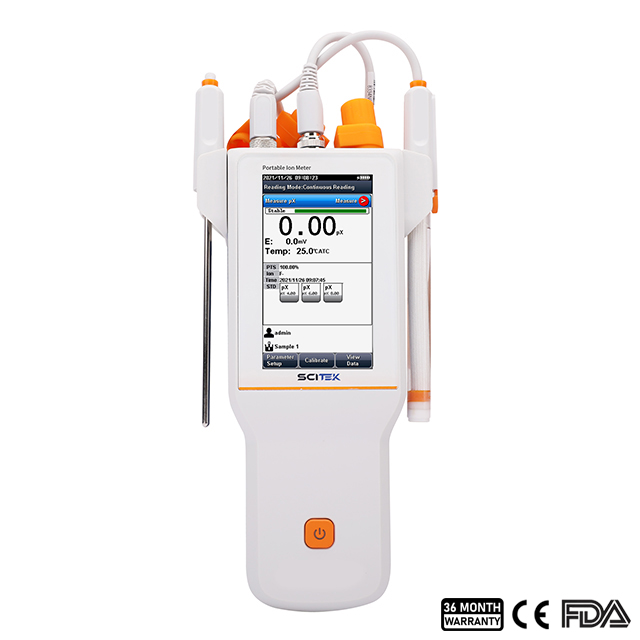

Portable Ion Meter, 5 Points Calibration

Model : I310T

pH Range : -2.00 to 20.00pH
Accuracy : ±0.01 pH
Calibration Points : Up to 5
Sizes(W×D×H)(mm) : 90x255x40
Reliably measure pH, mV, ORP, pX and temperature with our portable ion meter for advanced laboratory analysis and connectivity. Perform up to 5 points pH and ISE calibrations.
Availability:
Quantity:

Portable Ion Meter Features:

  1. Color High contrast LCD touchscreen, 4.3 inches.

  2. Multi-reading feature allows auto-read, timed-read and continuous-read.

  3. Automatic/Manual temperature compensation ensures accurate results.

  4. Auto-hold feature senses and locks the measurement endpoint.

  5. Data capacity of up to 500 sets for each parameter (GLP-compliant).

  6. Support for USB communication.

  7. Auto-power off feature effectively extends the battery service life.

  8. Reset feature automatically resumes all settings back to factory default options.

  9. IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

pH

  1. 1-5 points calibration with Standard Recognition.

  2. Selectable pH buffer groups, including NIST, DIN, GB, USA.

  3. Automatic electrode diagnosis with pH slope and offset display.

Ion


  1. 1-5 points calibration.

  2. Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, ppb, etc.

  3. Measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

  4. Over 10 methods are built-in, including F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.

Portable Ion Meter Specifications:

ModelI310T
ParameterspH/ISE/Temp.(mV/pX)
pHRange-2.00 to 20.00pH
Resolution0.1, 0.01 pH
Accuracy±0.01 pH
Calibration PointsUp to 5
Standard CustomizationYes
Standard RecognitionNIST, GB and DIN buffers
Slope LimitYes
mV/ORPRange-2000.0 to 2000.0 mV
Resolution0.1 mV
Accuracy±0.3 mV or ±0.1%
pXRange-2.00 to 20.00 pX
Resolution0.1, 0.01 pX
Accuracy±0.02 pX
Calibration PointsUp to 5
ISERange1.000e-9 to 9.999e+9
Unitsmol/L, g/L, mg/L, μg/L, ppm, ppb
ResolutionUp to 4 significant digits
Accuracy±0.5%
Calibration PointsUp to 5
TemperatureRange-5 to 110 ºC, 23 to 230 ºF
UnitºC, ºF
Resolution0.1
Relative Accuracy±0.2
MeasurementReading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading PromptsReading, Stable, Locked
Temp. CompensationATC, MTC
Data ManagementData Storage1000 Groups
GLP FeaturesYes
InputspH ElectrodeBNC(Q9)
Temp. Probe4-pin aviation connector
OutputsUSBPC, printer
Display OptionsBacklightYes
Auto Shutdown300, 600, 1200, 1800, 3600sec., off
IP RatingIP65
Date and TimeYes
GeneralPower

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

External Size (W×D×H)(mm)90x255x40
Shipping Size (W×D×H)(mm)410×330×165
G.W. (kg)5.5
IncludesAccessories

Electrode holder

Silicone rubber case

Wristbands

Touch pen

Carrying Case
