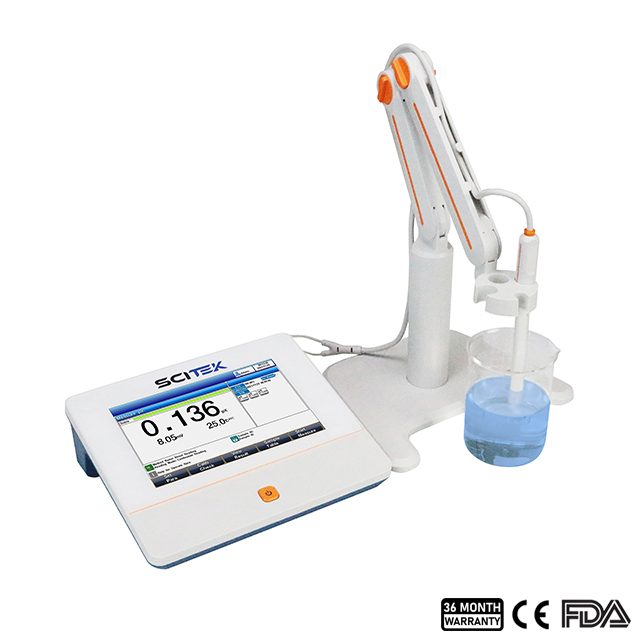

Benchtop Ion Meter, 6 Points

Model : ION-B500

Range : -2.000 to 20.000 pH
Accuracy : ±0.002 pH

Calibration Points : Up to 6

Sizes(W×D×H)(mm) : 220×195×68

The benchtop ion meter's vivid colour touch screen display ensures that your measurements are reliable.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Benchtop Ion Meter Specifications:

Model		ION-B500
Parameters		pH/ISE/Temp.(mV/ORP/pX)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
	Calibration Points	Up to 6
	Standard Customization	Yes
	Calibration Reminder	Yes
	Standard Recognition	NIST, GB, DIN, USA, MERK, JIS buffers
	Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	±0.1 mV or ±0.03% of reading whichever is greater
	Accuracy	±0.1 mV or ±0.03% of reading whichever is greater
	EH ORP Mode	Yes
	ORP Calibration Points	1 custom point (relative mV)
pX	Range	-2.000 to 20.000 pX
	Resolution	0.1, 0.01, 0.001 pX
	Accuracy	±0.002 pX
	Calibration Points	Up to 6
ISE	Range	1E-9 to 9.999E9
	Units	mol/L, mmol/L, g/L, mg/L, μg/L, ppm
	Resolution	Up to 4 significant digits
	Accuracy	±0.3%
	Calibration Points	Up to 6
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data Management	Data Storage	1000 Groups
	GLP Features	Yes
	Log Management	Yes
Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	4-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC
Outputs	RS 232	printer, scanner, auto-sampler
Display Options	Backlight	Yes
	Auto Shutdown	1~60 min, off
	IP Rating	IP54
	Date and Time	Yes
General	Electricity	AC Adapter, 100-240V AC input, DC24V output
	Sizes(W×D×H)	220×195×68 mm
	Shipping Size (W×D×H)(mm)	370×305×330
	N.W./G.W. (kg)	0.95/6.5

Benchtop Ion Meter Features:

The benchtop ion meter is ideal for monitoring the quality of high-purity water in power plants (e.g., condensate, steam, boiler feed water, etc.). Of course, it is also a good choice for scientific research institutions, microelectronics departments, and higher education institutions that need to test water quality.

Adopting large LCD segment code liquid crystal, the display is clear and beautiful;
The instrument can measure a variety of ion concentrations
The instrument has a manual temperature compensation function, two-point calibration (static and dynamic calibration);
Static and dynamic are two kinds of measurement.
Not only can display the ion value but also the ion concentration.
The instrument has a beautiful and lightweight appearance.

Model	ION-B500
Parameters	pH/ISE/Temp.(mV/ORP/pX)
pH	Range	-2.000 to 20.000 pH
Resolution	0.1, 0.01, 0.001pH
Accuracy	±0.002 pH
Calibration Points	Up to 6
Standard Customization	Yes
Calibration Reminder	Yes
Standard Recognition	NIST, GB, DIN, USA, MERK, JIS buffers
Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00 mV
Resolution	0.1, 0.01 mV
Accuracy	±0.1 mV or ±0.03% of reading whichever is greater
EH ORP Mode	Yes
ORP Calibration Points	1 custom point (relative mV)
pX	Range	-2.000 to 20.000 pX
Resolution	0.1, 0.01, 0.001 pX
Accuracy	±0.002 pX
Calibration Points	Up to 6
ISE	Range	1E-9 to 9.999E9
Units	mol/L, mmol/L, g/L, mg/L, μg/L, ppm
Resolution	Up to 4 significant digits
Accuracy	±0.3%
Calibration Points	Up to 6
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
Unit	ºC, ºF
Resolution	0.1
Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts	Reading, Stable, Locked
Temp. Compensation	ATC, MTC
Data Management	Data Storage	1000 Groups
GLP Features	Yes
Log Management	Yes
Inputs	pH Electrode	BNC(Q9)
Temp. Probe	4-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC
RS 232	printer, scanner, auto-sampler
Display Options	Backlight	Yes
Auto Shutdown	1~60 min, off
IP Rating	IP54
Date and Time	Yes
General	Electricity	AC Adapter, 100-240V AC input, DC24V output
Sizes(W×D×H)	220×195×68 mm
Shipping Size (W×D×H)(mm)	370×305×330
N.W./G.W. (kg)	0.95/6.5

Portable Ion Meter, 2 to 5 Points Calibration

Benchtop Ion Meter 2 to 5 Points Calibration

Benchtop Ion Meter, 6 Points Calibration

Pocket Ion Meter

Portable Ion Meter, 5 Points Calibration
