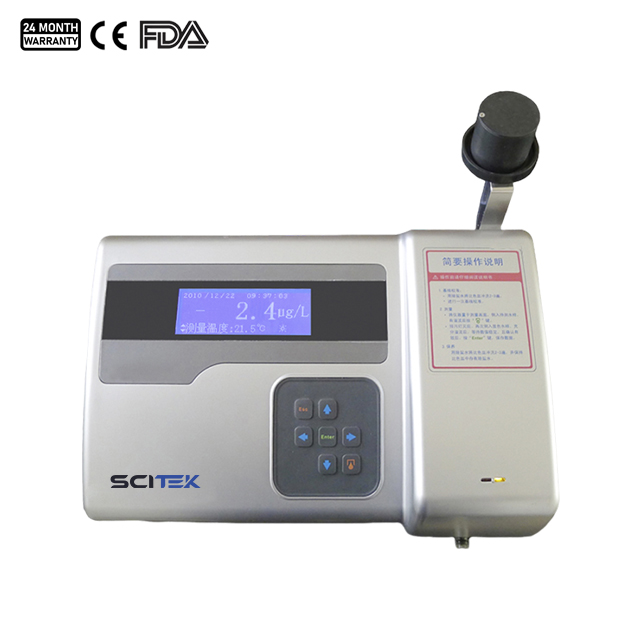

HY-B228 benchtop hydrazine meter adopts imported monochrome cold light source, which is stable and accurate. It is equipped with a strong waterproof shell. It is widely used in power, chem. or petrochemical, pulp and paper etc. Industries
Benchtop Hydrazine Meter Features:
Advanced 32 bits embedded MCU technology
Advanced SMT and integrative design improve cost performance and reliability
Membrane touch keys
LCD display in Chinese or English
The light source adopts imported monochrome cold light source. Enhanced performance, concentrated energy, and reduced power consumption
Receive photocell using imported component Ensure steady and accurate measurement
The benchtop hydrazine meter adopts new patent technology of fuzzy PID constant temperature control to ensure the stability of measurement.
Blank calibration simplified the process of calibration and improve work efficiency
Unique multi-point curve calibration option increase measurement accuracy
Security access code avoid mis-operation except professional operators
History data logger allow any useful information to be saved and checked at any time
Benchtop Hydrazine Meter Specifications:
| Model | HY-B228 |
|---|
| Display | 192×64 lattice LCD, display in Chinese or English |
| Measuring Range | 0-100 μg/L |
| Accuracy | ±2%F.S |
| Resolution | 0.1μg/L |
| Repeatability | 1% |
| Stability | ±1%F.S/4h |
| Ambient Temperature | (5-45)℃ |
| Ambient Humidity | ≤90%RH(no condensation) |
| Overall Sizes(LxWxH)(mm) | 392x260x100 |
| Power Supply | (85-265)VAC, (45-65)Hz |
| Power Consumption | 40W |
| Shipping Size (WxDxH)(mm) | 560x360x300 |
| N.W. / G.W. (kg) | 5 / 7.5 |
