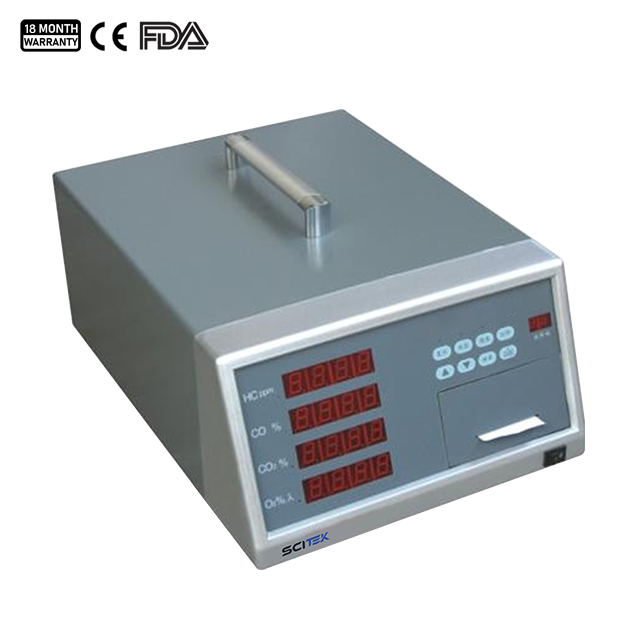

Automobile Exhaust Analyzer AEA-401

Model : AEA-401

Measuring Range :
HC: 0~10000×10-6 (ppm)vol;
CO: 0~10×10-2 (%)vol
CO2: 0~20×10-2 (%)vol
O2: 0~25×10-2 (%)vol
Lambda: 0.50~3.00
COcor: 0~10×10-2(%)vol
Stability : Moment drift ≤±3%; Repeatability ≤±2%
Size (WxDxH)(mm) : 420×310×170
Availability:
Quantity:
Inquiry Add to Inquiry List

Automobile Exhaust Analyzer Specifications:

ModelAEA-401
Measuring RangeHC: 0~10000×10-6(ppm)vol, CO: 0~10×10-2(%)vol )
CO2: 0~20×10-2(%)vol; O2: 0~25×10-2(%)vol
Lambda: 0.50~3.00; COcor:0~10×10-2(%)vol
Indicating error
HC±12×10-6 (ppm)vol (absolute error) or ±5% (relative error)
CO±0.06×10-2 (%)vol (absolute error) or ±5% (relative error)
CO2±0.5×10-2(%)vol (absolute error) or ±5% (relative error)
O2±0.1×10-2(%)vol (absolute error) or ±5% (relative error)
StabilityMoment drift≤±3% Repeatability ≤±2%
Resolution
HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol
CO2: 0.1×10-2(%)vol, O2: 0.01×10-2(%)vol, Lambda: 0.01
Response Time95% response is not more than 10 seconds
Preheating Time8min (preheating 3min emergency detection)
Output Mode
Digital direct reading, gases can be attached printer name, the maximum concentration, average value, minimum value, test time, date. Can interface with computer networking
And-use Temperature-5~50°C, Relative humidity: ≤90%
PowerAC100~240V 50/60Hz or DC12V( Add power inverter)
Power Consumption40VA
Size (WxDxH)(mm)420×310×170
Shipping Size (WxDxH)(mm)620×435×295
N.W. / G.W. (kg)9/12

Automobile Exhaust Analyzer Feature:

  1. Automobile exhaust analyzer is used to measure the concentration of HC, CO, CO2, O2 in the exhaust gas of automobile. It can automatically calculate and display the air-fuel ratio λ.

  2. It can comprehensively detect the combustion performance and emission pollution of engine.

  3. Using foreign advanced technology, Germany imported movement.

  4. It has high brightness digital display, automatic zero calibration, automatic data linearization processing, automatic alarm in case of gas path blockage, and automatic diagnosis unit in case of fault.

  5. The automobile exhaust analyzer is applicable to the detection of engine exhaust components using gasoline, LPG, CNG, alcohol and diesel as fuel.

  6. It is equipped with built-in printer (or Bluetooth/ RS232 ) to meet the new national standard gb18285-2018 and American bar-97 standard Accurate, in line with iso3930 or oimlr99 class I accuracy, it can carry out free idle, double idle measurement and multi working condition measurement, with the characteristics of convenient operation, accurate measurement data, stable and reliable operation.
