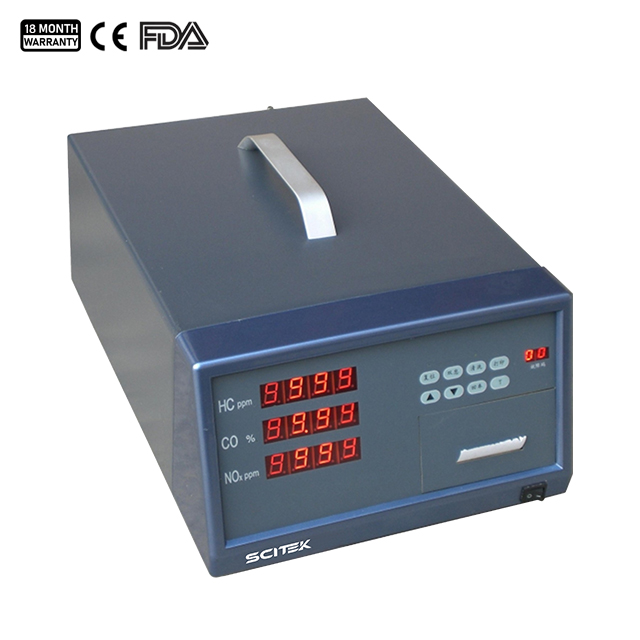

Automobile Exhaust Analyzer AEA-301

Model : AEA-301

Measuring Range :
HC: 0~10000×10-6(ppm)vol
CO: 0~10×10-2(%)vol
NOx : 0~4000×10-6(ppm)vol
Stability : Moment drift ≤ ±3%
Repeatability ≤ ±2%
Response Time : 95% response is not more than 10 seconds
Size (WxDxH)(mm) : 420×310×170
Availability:
Quantity:
Inquiry Add to Inquiry List

Automobile Exhaust Analyzer Specifications:

ModelAEA-301
Measuring RangeHC: 0~10000×10-6 (ppm)vol
CO: 0~10×10-2 (%)vol
NOx: 0~4000×10-6 (ppm)vol
Indicating Error
HC ± 12×10-6 (ppm)vol (absolute error) or ±5% (relative error)
CO ± 0.06×10-2(%)vol (absolute error) or ±5% (relative error)
NOx ± 25×10-6 (ppm)vol (absolute error) or ±4% (relative error)
Stabilitymoment drift ≤±3%; Repeatability ≤±2%
Resolution
HC:1×10-6 (ppm)vol
CO: 0.01×10-2 (%)vol
NOx: 1×10-6 (ppm)vol
Response Time95% response is not more than 10 seconds
Preheating Time8min (preheating 3min emergency detection)
Output Mode
Digital direct reading, gases can be attached printer name, the maximum concentration, average value, minimum value, test time, date. Can interface with computer networking
And-use Temperature-5~50°C, Relative humidity: ≤90%
PowerAC100~240V, 50/60Hz or DC12V( Add power inverter)
Power Consumption40VA
Size (WxDxH)(mm)420×310×170
Shipping Size (WxDxH)(mm)620×435×295
N.W. / G.W. (kg)9/12

Automobile Exhaust Analyzer Feature:

  1. Used to measure vehicle emissions of HC, CO, NOx gas concentration, using advanced foreign technology, import the key components assembled.

  2. With a high-brightness digital display, automatic zero, linear automatic data processing, auto-alarm when the gas line blocking, fault diagnosis where the unit automatically and print testing date, time functions.

  3. With built-in printer (or the analog output interface or or Bluetooth / RS232), can be freely idling and dual idling measure, with easy operation, accurate measurement data, work stable and reliable characteristics.
