Model | AEA-201 |
---|---|
Measuring Range | HC: 0~10000×10-6 (ppm)vol |
CO: 0~10×10-2 (%)vol | |
Indicating Error | HC±12×10-6 (ppm)vol (absolute error) or ±5% (relative error) |
CO±0.06×10-2 (%)vol (absolute error) or ±5% (relative error) | |
Stability | moment drift ≤ ±3% Repeatability ≤ ±2% |
Resolution | HC:1×10-6(ppm)vol |
CO: 0.01×10-2(%)vol | |
Response Time | 95% response is not more than 10 seconds |
Preheating Time | 8min (preheating 3min emergency detection ) |
Output Mode | digital direct reading, gases can be attached printer name, the maximum concentration, average value, minimum value, test time, date. Can interface with computer networking |
And-use Temperature | -5~50°C, Relative humidity: ≤90% |
Power | AC100~240V 50/60Hz or DC12V( Add power inverter) |
Power Consumption | 40VA |
Size (WxDxH)(mm) | 420×310×170 |
Shipping Size (WxDxH)(mm) | 620×435×295 |
N.W. / G.W. (kg) | 9/12 |

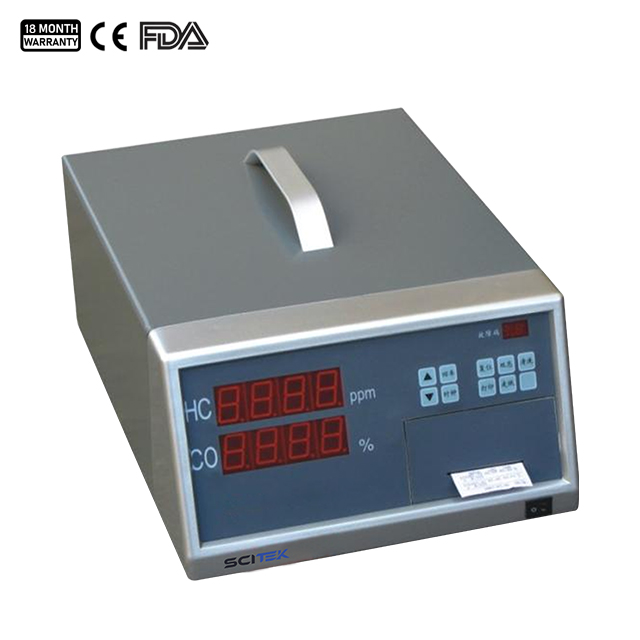

Used to measure vehicle emissions of HC and CO gas concentrations, using advanced foreign technology, import the key components assembled.
With a high-brightness digital display, automatic zero, linear automatic data processing, auto-alarm when the gas line blocking, fault diagnosis where the unit automatically and print testing date, time functions.
With built-in printer (or the analog output interface or or Bluetooth/ RS232), can be freely idling and dual idling measure, with easy operation, accurate measurement data, work stable and reliable characteristics.
Model | AEA-201 |
---|---|
Measuring Range | HC: 0~10000×10-6 (ppm)vol |
CO: 0~10×10-2 (%)vol | |
Indicating Error | HC±12×10-6 (ppm)vol (absolute error) or ±5% (relative error) |
CO±0.06×10-2 (%)vol (absolute error) or ±5% (relative error) | |
Stability | moment drift ≤ ±3% Repeatability ≤ ±2% |
Resolution | HC:1×10-6(ppm)vol |
CO: 0.01×10-2(%)vol | |
Response Time | 95% response is not more than 10 seconds |
Preheating Time | 8min (preheating 3min emergency detection ) |
Output Mode | digital direct reading, gases can be attached printer name, the maximum concentration, average value, minimum value, test time, date. Can interface with computer networking |
And-use Temperature | -5~50°C, Relative humidity: ≤90% |
Power | AC100~240V 50/60Hz or DC12V( Add power inverter) |
Power Consumption | 40VA |
Size (WxDxH)(mm) | 420×310×170 |
Shipping Size (WxDxH)(mm) | 620×435×295 |
N.W. / G.W. (kg) | 9/12 |
Used to measure vehicle emissions of HC and CO gas concentrations, using advanced foreign technology, import the key components assembled.
With a high-brightness digital display, automatic zero, linear automatic data processing, auto-alarm when the gas line blocking, fault diagnosis where the unit automatically and print testing date, time functions.
With built-in printer (or the analog output interface or or Bluetooth/ RS232), can be freely idling and dual idling measure, with easy operation, accurate measurement data, work stable and reliable characteristics.
