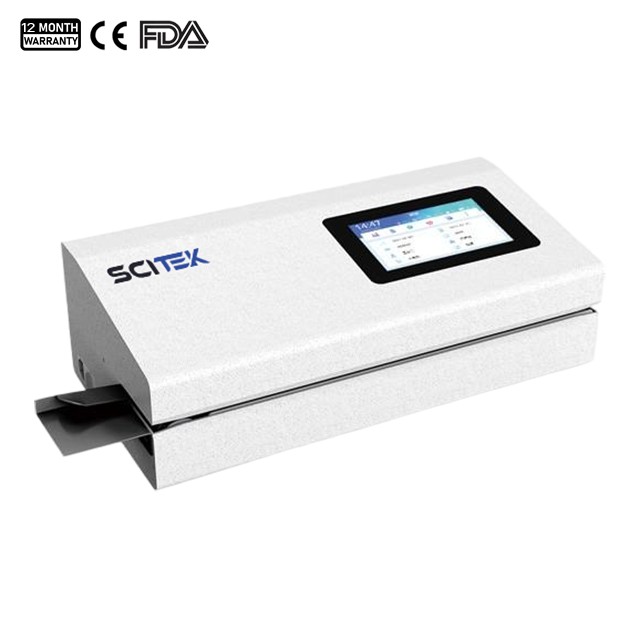

The SM-A series automatic sealing machine enables continuous and consistent pouching. Its sealing velocity is much faster. In addition it has no limit on the width of pouches to be sealed.
1. Seal both PE/paper pouches and Tyvek pouches.
2. Automatic rapid continuous heat sealing technology to improve packaging efficiency.
3. Concise, intuitive digital display and button control.
4. Precise temperature control makes your sealing meet related regulations. The temperature is adjustable from room temperature to 220 ℃, and the working temperature is accurately controlled to ±1°C.
5. Overheating protection invoked when the upper temperature limit is exceeded.
6. Standby functionality prolongs sealer service life and reduces energy consumption. Standby time and temperature are adjustable.
7. High-temperature ceramic plus plate is high-temperature resistant, heats up quickly and evenly.
Model | SM-A10 | SM-A40 |
Sealed Seam Width | 12 mm | |
Sealing Speed | ≥10 m/min | |
Margin | 0–35 mm | 0–40 mm |
Display | Digital tube | 7-inch touch screen |
Control | Button | Touch Screen |
Printer | NA | Yes, Double line dot-matrix printing (can be disa-bled) |
Shell | Powder coated carbon steel | |
Sealing Temperature Range | RT to 220 ℃ | |
Sealing Temperature accuracy | ±1 ℃ | |
Heating Speed | Heat to 180 ℃ within 40s (only for 220 V power supply) | |
Power Supply | 220 V, 50 Hz; 110 V, 60 Hz | |
Power | 400 VA | |
Size (W×D×H) | 535×232×188 mm | |
N.W. | 14 kg | |
