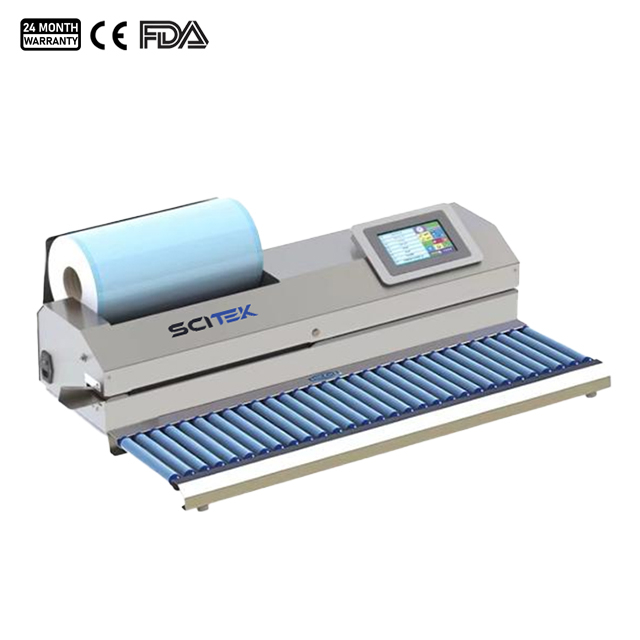

Cutting-Sealing Printing Machine

Model : SM-CSP121

Max Cutting Width : ≤400mm
Sealing Speed : 10+0.5m/min
Cutting Length : >50mm
External Size(WxDxH)(mm) : 1030x290x200
The cutting-sealing printing machine can be loaded with multiple rolls of different widths at the same time, cutting and sealing at the same time, with high working efficiency.
Availability:
Quantity:

Cutting-Sealing Printing Machine Specifications:

ModelSM-CSP121
Max Cutting Width≤400mm
Max Current(A)3.2
Fuse5Ax2
Display7" color capacitive LCD
Sealing Speed10+0.5m/min
Sealing Width12mm
Cutting Length>50mm
Cutting Speed20+0.5m/min
Sealing Margin0~35mm adjustable
Working Temperature60~220°C adjustable
Temperature Control Precision≤±1°C
AC PowerAccording to customer requirements
Power(w)600
Weight(kg)42
External Size(WxDxH)(mm)1030x290x200

Cutting-Sealing Printing Machine Features:

  1. Automatic feeding, cutting and sealing: You only need to set up the length and quantity of the paper-plastic pouches as per the requirements and start theprogram, then the machine will automatically complete the feeding, uttingand sealing process;

  2. Touch screen with Android OS, which features in graphical operation interface, single chip control system, adjustable parameters etings with English input methods or optional scanning gun, automatic storage with functions of voice reading, voice prompt and wireless Wifi connection etc.;

  3. If necessary, several rolls of paper-plastic puches with different widths could be loaded into the machine at the same time to improve its working efficiency by finish cutting and sealing simultaneously;

  4. Temperature controlled by a microcomputer: Fast heating and high temperature control precision;

  5. Safe operation: If the sealing temperature and sealing pressure exceeds setting range ,the machine will automatically stop working, which effectively guarantees the seal quality and safety.
