Automated nucleic acid extraction system efficiently performs DNA extraction and purification of methylation products from a wide range of sample types, including whole blood, serum, nasopharyngeal swabs, secretions, sputum, feces, urine, and lung lavage fluid. Provides laboratories with a simple, stable, and reliable solution for nucleic acid pretreatment.
10.1-inch full-color touchscreen LCD for real-time visual program operation; no external computer required.
Utilizes magnetic bead complex transfer technology; transfers beads rather than liquids, resulting in an inter-well CV of <3% and reduced sample loss.
Features multi-speed oscillation mixing with digitally adjustable mixing and magnetic separation speeds, allowing for flexible optimization of extraction conditions.
Modular linear motion design ensures quiet operation of the magnetic assembly and motors, as well as a long service life for motors and guide rails.
Nucleic acid extractor equips with negative-pressure exhaust filtration and UV disinfection modules to effectively prevent cross-contamination.
Ceramic heating module featuring a fully enclosed bottom and semi-enclosed side heating structure for rapid, uniform, and stable temperature control.
Built-in LED chamber lighting, controllable via a one-touch screen switch, for convenient monitoring of the experimental process.
Stores over 10,000 experimental programs and supports user-defined editing and modification of extraction protocols.
Includes power-on self-test, over-temperature protection, and power-loss protection; allows for the resumption of interrupted experiments following a power outage.

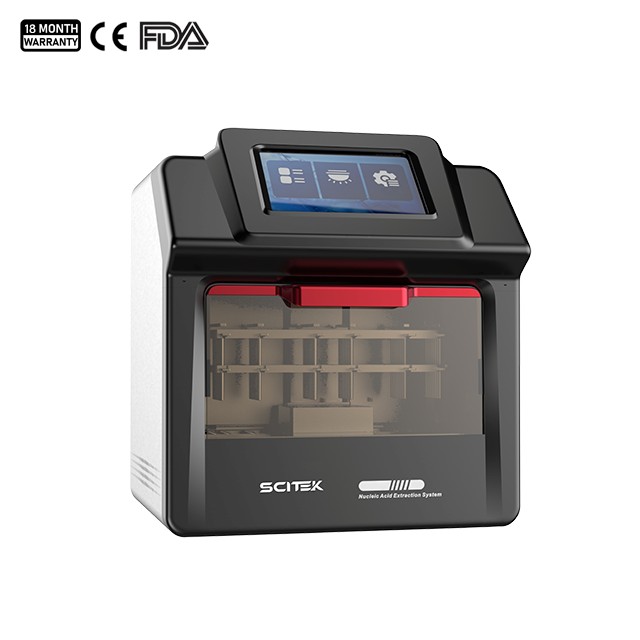

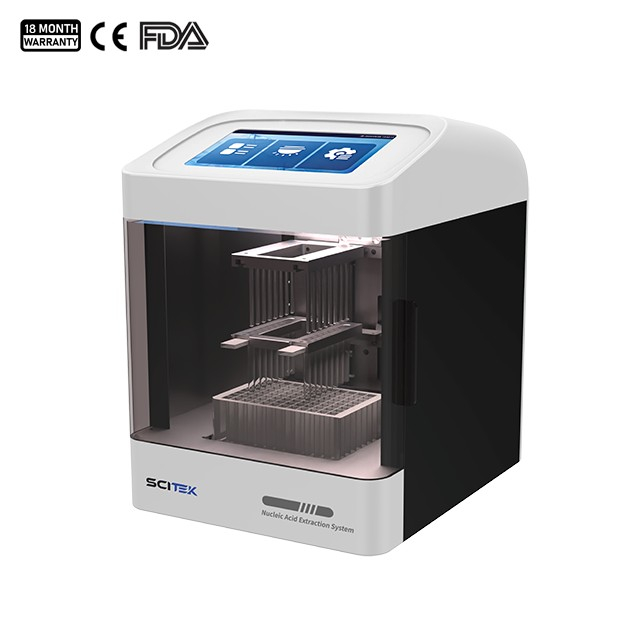

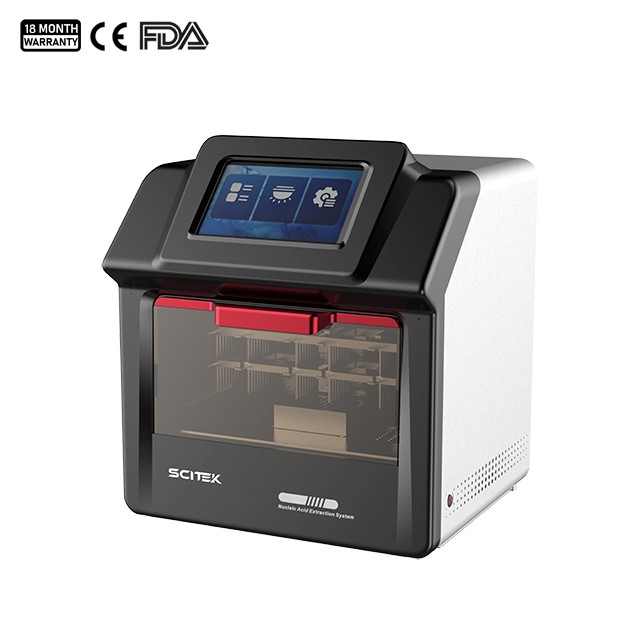

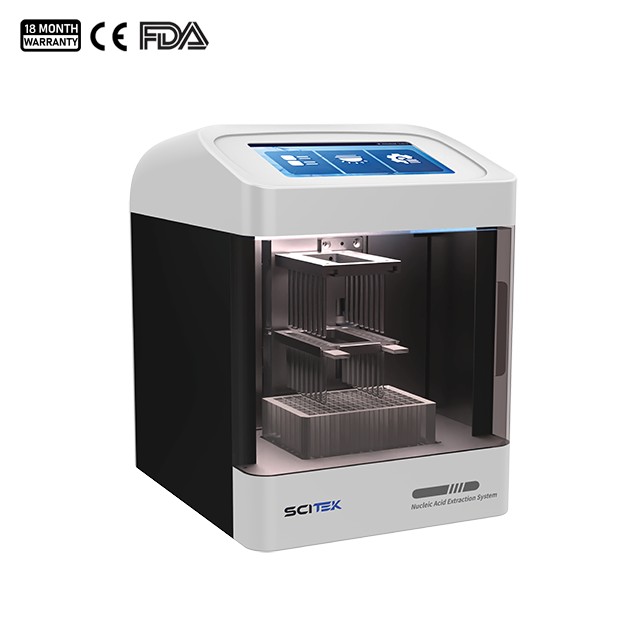

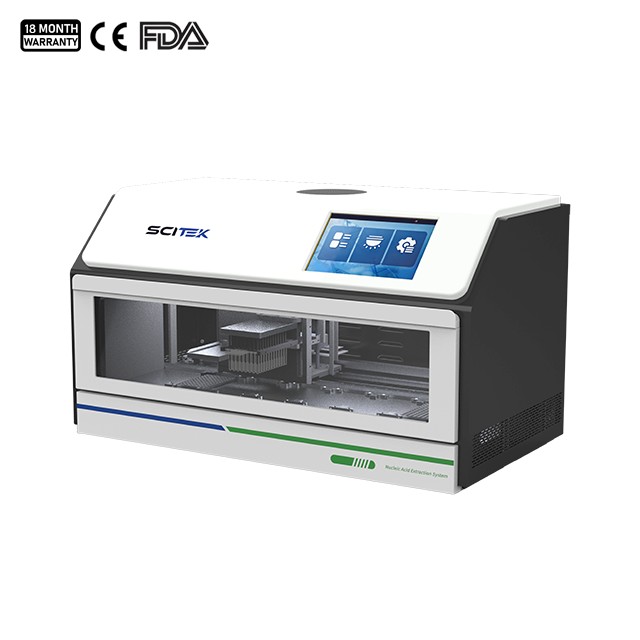

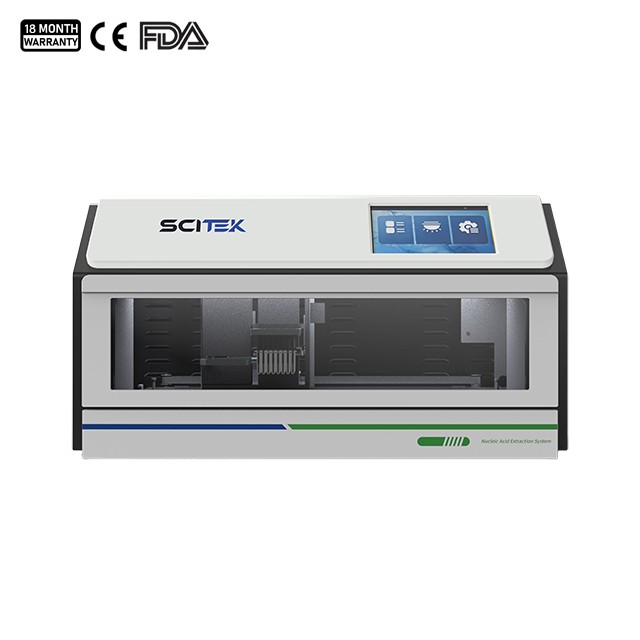

Model | NAE-16N | NAE-48N | NAE-96N |
Display | 7" Touch screen | 10" Touch screen |
Throughput | 1–16 | 1–48 | 1–96 |
Volume | 20–1000 μL |
Processing Time | 10–60 min |
Compatible Consumable | 96 deep-well plates (2.2 mL), 8-tip round-bottom magnetic rod tip comb | 96 deep-well plates (2.2 mL, 1.6 mL, 1.0 mL), 8-tip round-bottom magnetic rod tip comb |
Collection Efficiency | ＞99% | ＞98% | ＞99% |
Stability | CV<3% |
Heating Temp. Range | RT. to 120 °C |
Oscillatory Mixed Mode | Multi-level adjustable |
Pollution Control | Optional | Filter +UV |
Program | >10,000 sets |
Interface | USB |
Optional Accessory | / | 1. PCR module (for purification of 96-well 0.2 mL PCR plates) |
2. High-throughput (96 × 2.2 mL) or large-capacity (24 × 15 mL) modules |
Power Supply | AC 220/110V, 50/60Hz |
Consumption (W) | 160 | 500 | 350 |
External Size (W×D×H)(mm) | 300×240×320 | 500×390×540 | 870×450×502 |
Shipping Size (W×D×H)(mm) | 390×340×460 | 570×600×820 | 980×560×680 |
N.W/G.W (kg) | 10/12 | 31/50 | 50/70 |
