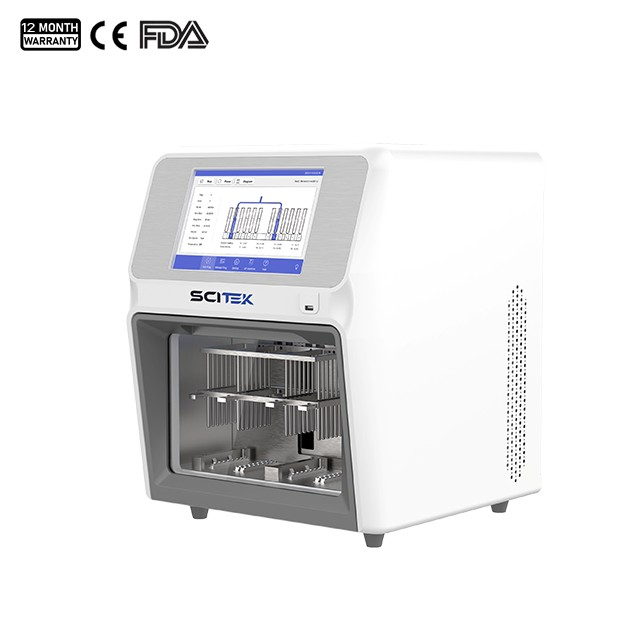

NAE-32 employs the globally mainstream magnetic bead-based purification technology to achieve highly efficient nucleic acid isolation and purification, balancing both experimental speed and product quality. The resulting high-purity, high-integrity nucleic acid products are directly compatible with various downstream applications such as PCR, qPCR, and NGS, ensuring the accuracy and reliability of experimental results. NAE-32 meets the application needs of various fields, including research, clinical diagnosis, and public health.
Automated Nucleic Acid Extractor Feature:
Concurrently purify nucleic acids up to 32 samples, with a single nucleic acid extraction taking only 10 to 50 minutes (extraction time varies based on the reagent), significantly improving experimental throughput.
Heating mode and oscillation speed are flexibly adjustable, enabling the selection of optimal experimental parameters to accommodate a wide variety of experimental scenarios.
Built-in UV sterilization function that significantly reduces the risk of sample cross-contamination and aerosol contamination, providing accurate experimental results.
10.1-inch capacitive touchscreen, real-time display of program execution progress. Supports Ethernet expansion capabilities to facilitate laboratory information management, ensuring the experimental process is fully traceable and controllable.
Automatic power-failure alert and power-resumption continuation functions significantly minimize sample loss, safeguarding the integrity of the extraction and purification processes.
Automated Nucleic Acid Extractor Specification:
Model
NAE-32
Reagent Type
Magnetic bead method reagents
Throughput
1–32 samples
Volume
20–1000 μL
Consumable
96 deep well Plate +Magnetic rod's tip
Collection Efficiency
≥98%
Stability
CV≤3%
Operation Temp.Range
10–40 ℃
Humidity Range
10%–90%
Heating Temp.Range
R.T.+5℃ to 125 ℃
Oscillatory Mixed Mode
Multi-level adjustable
Pollution Control
UV lamp
Lighting System
Equipped
Safety Protection
Power-off protection
Display
10.1 touch screen, Android operation system
Communication
Ethernet, USB, Wi-Fi
Size (L×W×H)
430×390×505 mm
Consumption
450 W
Power Supply
AC100–240 V, 50/60 Hz
N.W.
30 kg
FAQ
Q: Why chose Scitek?
A:
Consistent with international standards, high-precision magnetic bead purification ensures nucleic acid yield and purity meet professional laboratory benchmarks.
Designed to meet user experience demands, intelligent touch controls, multi-layered security safeguards and flexible expandability to strike a balance between professional-grade capabilities and ease of use.
By guaranteeing product quality and core performance, we are able to offer competitive prices and flexible customization services.
Q: What types of samples is the instrument compatible with?
A:
The NAE-32 can process a wide range of sample types, including cells, tissues, blood, saliva, sputum, feces and other sample types.
Q: Why does the extraction time vary between 10 and 50 minutes?
A:
Variations in extraction time primarily depend on the reagent system used, the sample type, and the complexity of sample processing. Specific adjustments can be made based on the reagent manual and experimental requirements.
