HPLC Chromatograph Specifications:
| Model | LC-BGH5100 | LC-QGL5100 | LC-QGL5100D |
| Pump | P-HT-5100*1 | P-LF5100*1 |
| Detector | UV-VIS5100*1 | DAD-5100*1 |
| System Controller | M5101*1 | M5103*1 |
| Sampler Injector | LPS-110035*1 |
| Column | CC-4625 ODS2 5μm
ID4.6x250mm *1 |
| Workstation | CW-5100*1 | PDA-5100 |
| Valve Mounting Frame | VB-5100 *1 |
| System Kit | ST-5100 *1 |
| Power Supply | AC220V±10%, 50Hz |
| Optional Accessory | 500ml Solvent bottle*2, Column, Column Oven, S5101 Auto-sampler, M5102 System controller | 500ml Solvent bottle*4, Column, Column Oven, S5101 Auto-sampler |
| Shipping Size (W×D×H)(mm) | 730x600x380*2
730x600x340*1 |
| G.W. (kg) | 85 |
Pump
P5100 Series Pumps:
P5101 high pressure pump; P-HT-5100 high pressure binary pump; P-LF5100 low pressure quaternary pump |
|
|
| Flow Range | 0.001 ~10.000 mL/min (step 0.001 mL/min) |
| Accuracy | ≤±0.2% |
| Precision | ≤0.06% RSD |
| Pressure Range | 0- 63 MPa |
| Power | AC220V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 730x600x380 |
| G.W. (kg) | 30 |
D5101 UV-VIS Detector
| UV-VIS5100 UV-VIS Detector |
| Linearity | ≥2.0 AU |
| Wavelength Range | 190~800 nm |
| Noise | ≤±0.25x10-5AU |
| Drift | ≤0.5x10-4AU/h |
| Power | AC220V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 730x600x380 |
| G.W. (kg) | 30 |
Diode Array Detector
| DAD-5100/5116 Diode Array Detector |
| Lineality | ≥2.0 AU |
| Wavelength Range | 190~800 nm |
| Noise | ≤1.0*10-5AU/h |
| Drift | ≤2.0*10-4 AU/h |
| Power | AC220V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 730x600x380 |
| G.W. (kg) | 30 |

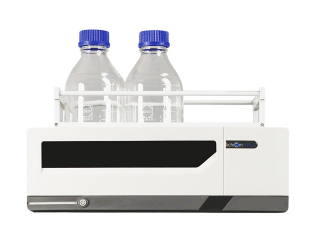

System Controller
M5100 System Controller:
M5100 system controller integrates data communication hub, power distribution hub, solvent tray, and on-line degassing.
M5101 System controller for LC5100
M5102 System controller for LC5100 with binary on-line degassing
M5103 System controller for LC5100 with quaternary on-line degassing use with P5103 |
|
|
|
|
| On-line Degasser | 2~4 |
| Wetted Materials | PEEK, TeflonⓇAF |
| Power | AC220V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 730x600x340 |
| G.W. (kg) | 30 |
O5101 Column Oven
| CTB-5100 Column Oven |
| Temperature Range | Ambient+5 °C~85°C |
| Accuracy | ±0.1°C |
| Precision | ≤0.1°C |
| Power | AC220 V±10%, 50Hz |
| Shipping Size(W×D×H)(mm) | 730x600x340 |
| G.W. (kg) | 30 |
LC5100 High Performance Liquid Chromatography System
Application:
LC5100 system can load variety of configurations, such as manual valve and automatic sampler, detectors including UV, DAD, LIFD, Rl, ELSD, and widely used in food, medicine, environmental protection and scientific research.
Advantages:
1. Automatic wavelength positioning and excellent wavelength accuracy.
2. Intellectualized sequence analysis and batch processing functions bringing more convenience.
3. Enable 21 CFR Part 11 compliance
4. High integrated SPI, I2C bus and ARM micro-controller technology Poston floating design makes more stable flow.
