This automatic chemiluminescence gel imaging systems is a commonly used device for detecting and analysing chemiluminescence signals generated in gel electrophoresis experiments. Such systems are commonly used to detect the distribution and quantitative analysis of biomolecules such as proteins and nucleic acids on gels.
Automatic Chemiluminescence Gel Imaging System Specifications:
| Model | ACG-I600 | ACG-I600M |
| Pixel | 9.0MP |
Multi-color Fluorescent
Function | No | Yes |
| Cooling Temperature | -65°C |
| Photosensitive Efficiency | High QE: >75% |
| Pixel Size | 4.54μm×4.54μm |
| Binning | 1×1 2×2 4×4··· 8×8 |
| Exposure | 1ms-120min |
| Bit | 16 bit (0-65535) |
| OD | ≥4.8OD |
| Lens | F = 0.95, 25mm, optionaF= 0.8, 25mm |
| UV Transmission | 302nm, Area: 21x21cm |
| Lighting | LED |
| UV Reflection | No |
| Filter Whee | Optional 2,5 position filter wheel |
| Filter | Optional 590nm, other options |
| Imaging Area | 20x20cm |
| APP Timer Shut Down | 1 ~ 60min |
| Sizes(W×D×H)(mm) | 405x380x695 |
| Shipping Size (W×D×H)(mm) | 530x500x830 |
| N.W./G.W. (kg) | 36/40 | 37/42 |
Automatic Chemiluminescence Gel Imaging System Features:
Fully automatic control of the lens and lightsource.
Precise automatic exposure in calculate, noneed to repeat calculation the exposure time.
One button shooting, marker and chemiluminescence image automatic stacking.
Cryogenic scientific research ultrasensitiveCCD camera, wide aperture Lens.
Details of Gel Imaging System(ACG-I600M):

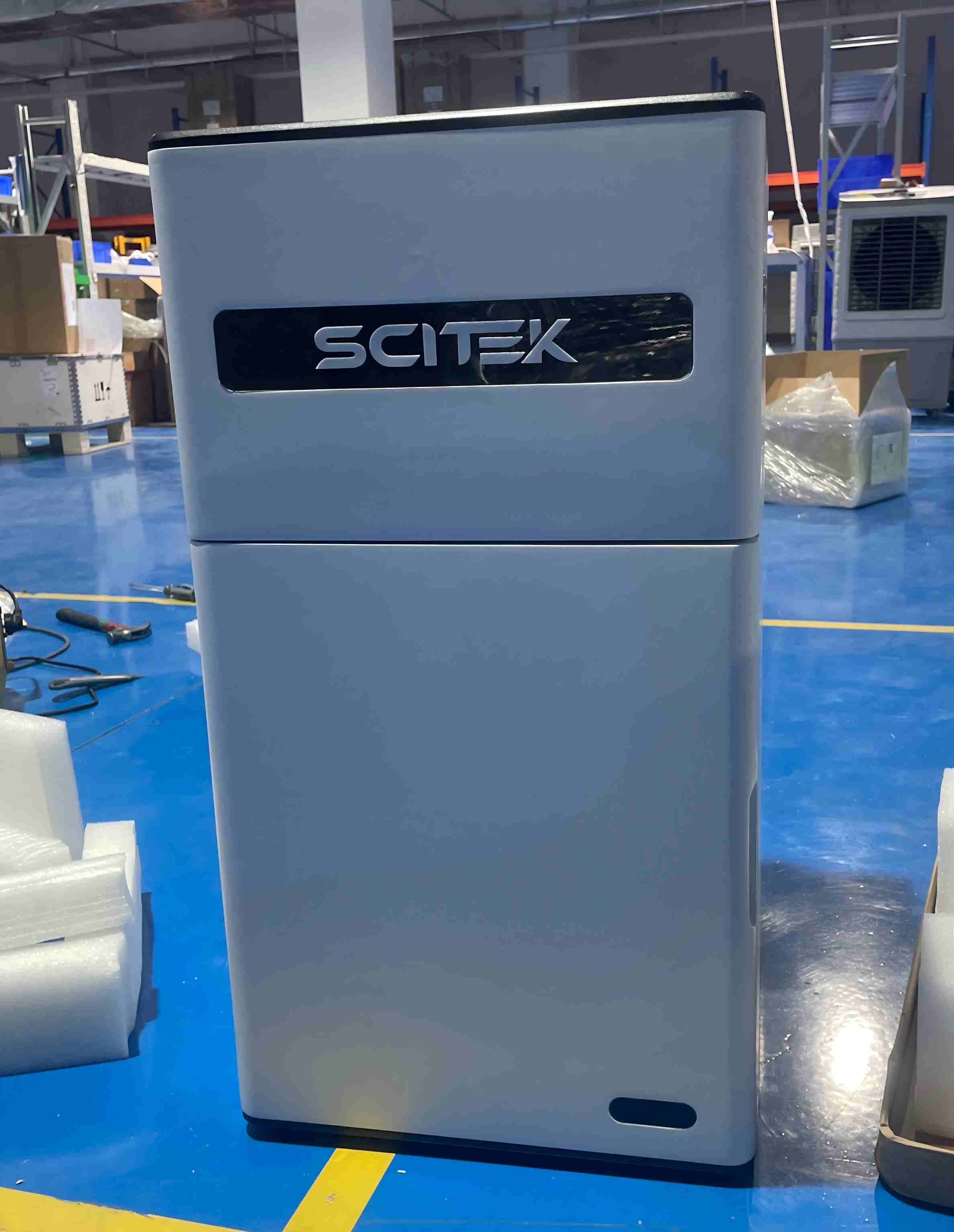

Professional design and intuitive operating interface, providing convenient access for routine gel imaging and analysis.

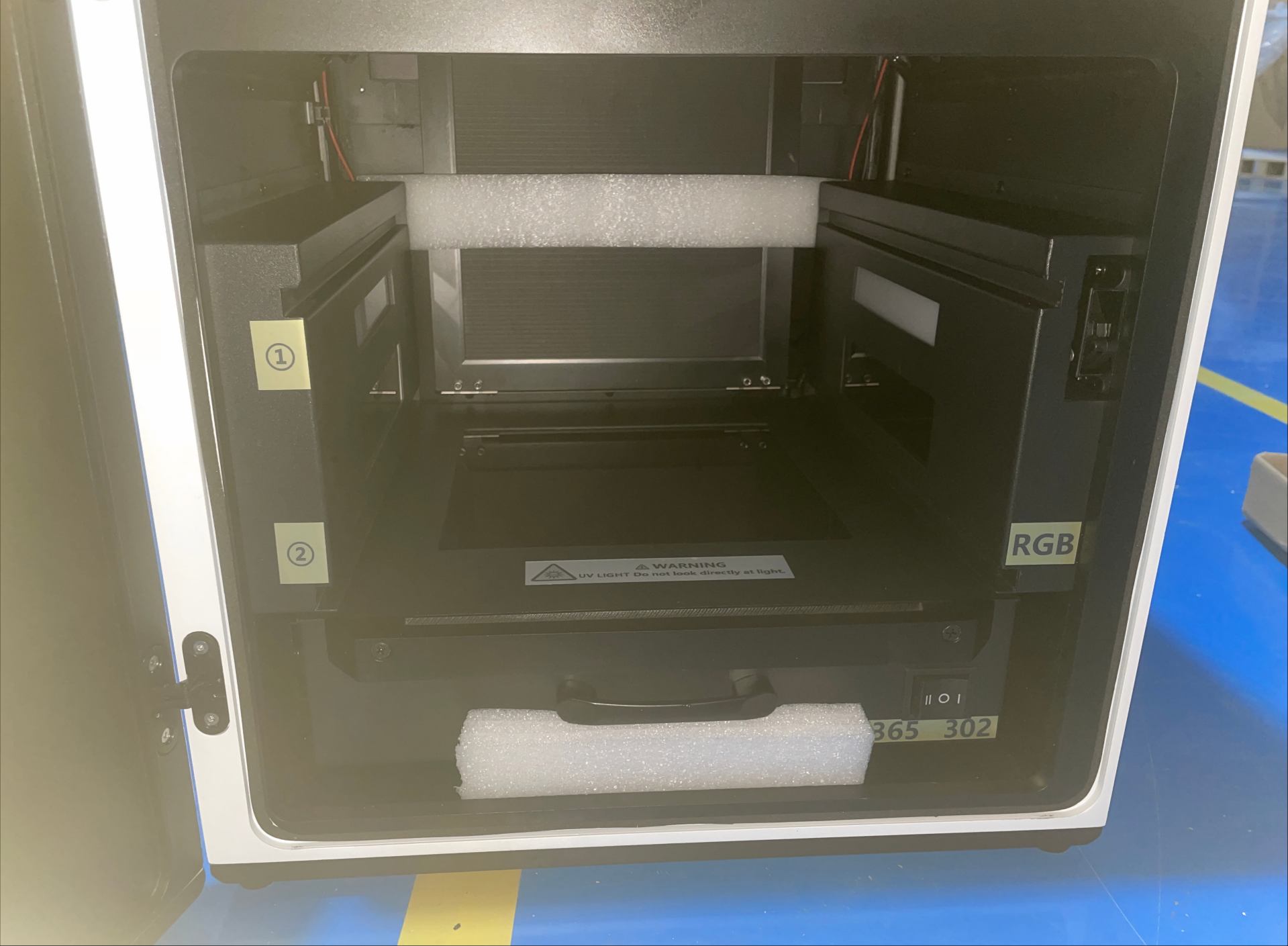

The internal view reveals the system’s well-organized optical and imaging components, designed to support stable image acquisition and reliable gel analysis performance.

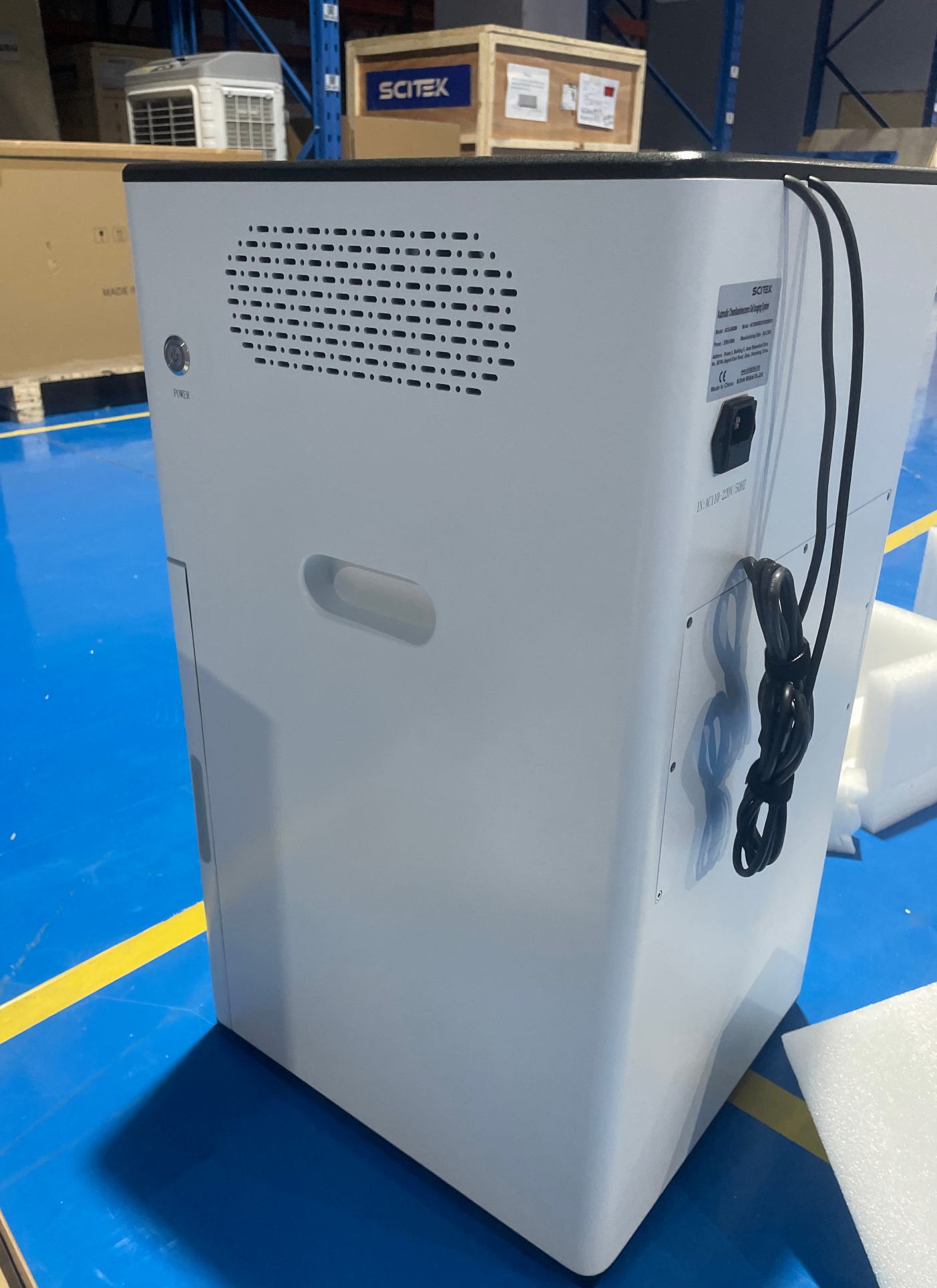

Connection ports and ventilation design, ensuring convenient installation and stable operation.
The ACG-I600M is securely packed with protective materials to minimize the risk of damage during handling and international transportation, ensuring it arrives in good condition.
