Introducing a new module design featuring a high-resolution CCD camera with rapid focusing capabilities. With reduced noise and enhanced sensitivity, the camera offers a large resolution. The F1.0 high-throughput 20 million high-definition auto-focusing lens ensures optimal imaging, while the multi-layer coating special filter enhances performance.
Key Application:
Automatic Gel Imaging and Analysis System Specification:
| Model | AG-I3T | AG-I5T |
| Diaplay | 12.5" Touch screen |
| Pixel | 6 million pixels | 12 million pixels |
| Exposure | 1 ms to 5000 ms | 1 ms to 60 min |
| Photosensitive Efficiency | High QE: >79% |
| Pixel Merge | 1×1 | 1×1, 2×2, 4×4 |
| Electric Lens | F=1:1.0 20 million auto focus lens |
| Dynamic Range | ≥4.8 orders of magnitude |
| Image Density | 16 bit (0-65535 colors) |
| Ultraviolet Transmission | 302 nm, optional transmission blue light |
| White Light Reflection | LED reflection (cold light) |
| White Light Transmission | White light conversion sample plate |
| Filter Lens | 590 nm standard configuration, others optional |
| Shooting Area | Shooting area: 210×210 mm |
| Timed Close | 1 to 60 minutes |
| External Size (W×D×H) | 362×360×566 mm |
| Shipping Size (W×D×H) | 470×460×670 mm |
| N.W./G.W. | 19.5/25 kg |
Gel Imaging and Analysis System Feature:
The 6-megapixel high-resolution image sensor makes capturing fine details in gel electrophoresis experiments possible.
Wide range of exposure times to meet the need for flexibility in experimental conditions.
20-megapixel autofocus function provides clear, high-quality images, making the system easier to operate and maintain.
High dynamic range helps to capture differences between strong and weak signals accurately.
Automatic gel imaging and analysis system provides 16-bit image density capable of accurately recording and presenting signals of various strengths in gels.
LED reflector system provides a cool light source to avoid sample heating.
Multiple filter options to meet the specific wavelength and spectral needs of different experiments.
Details of Automatic Gel Imaging and Analysis System:

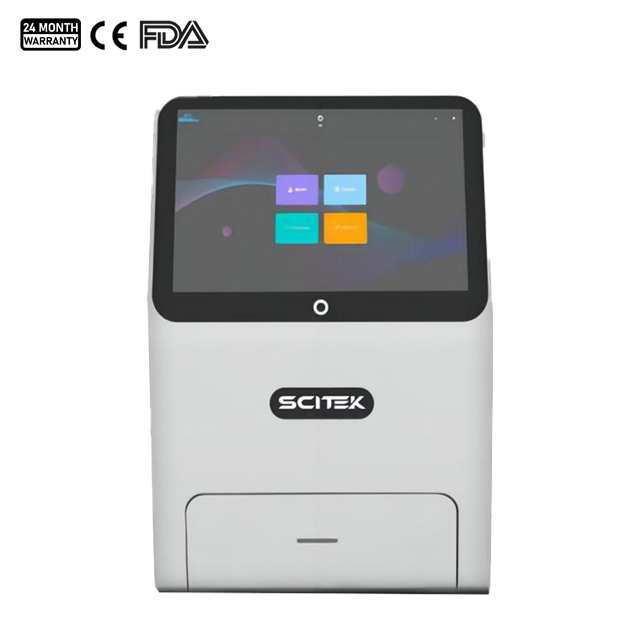

AG-I3T:

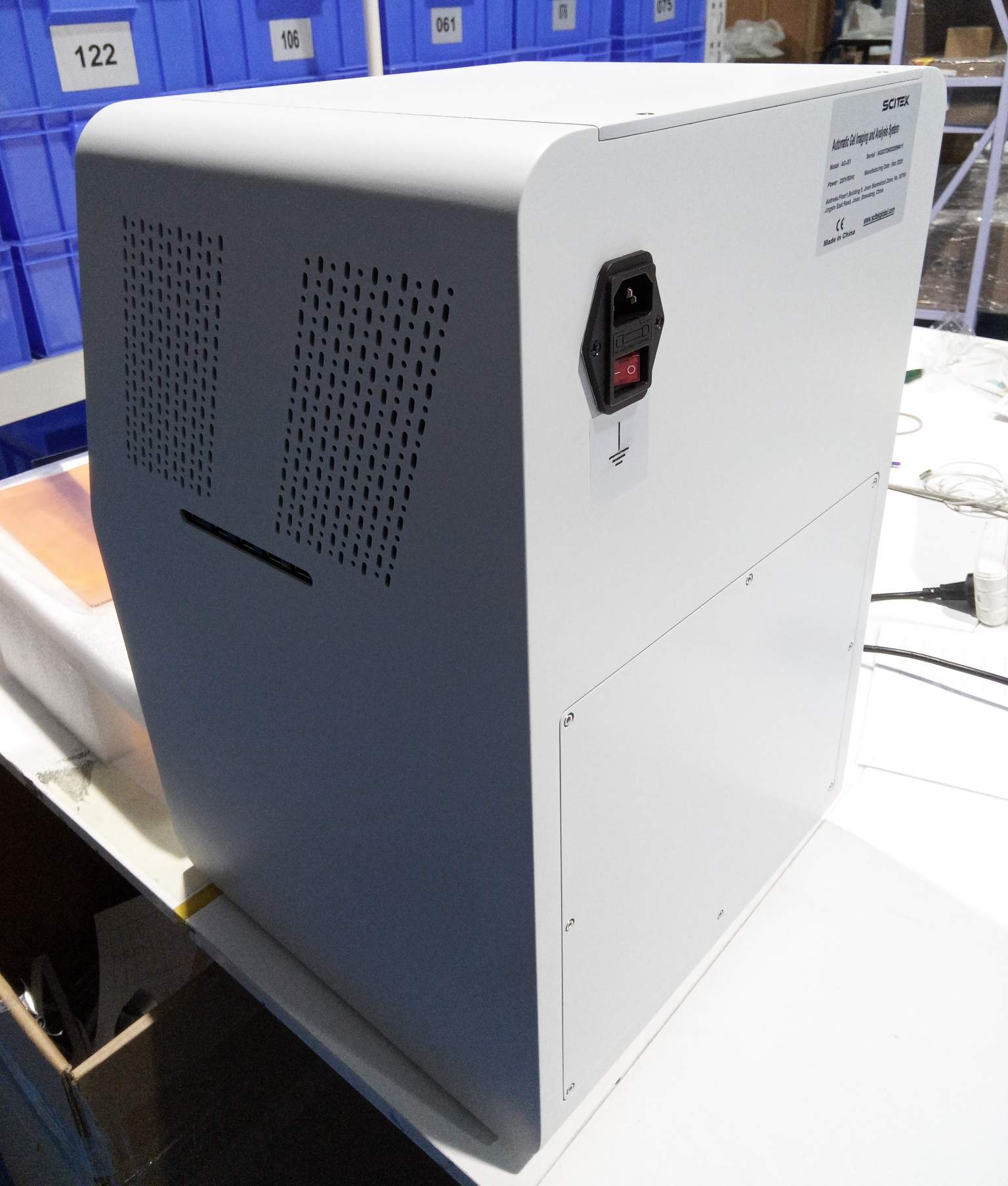

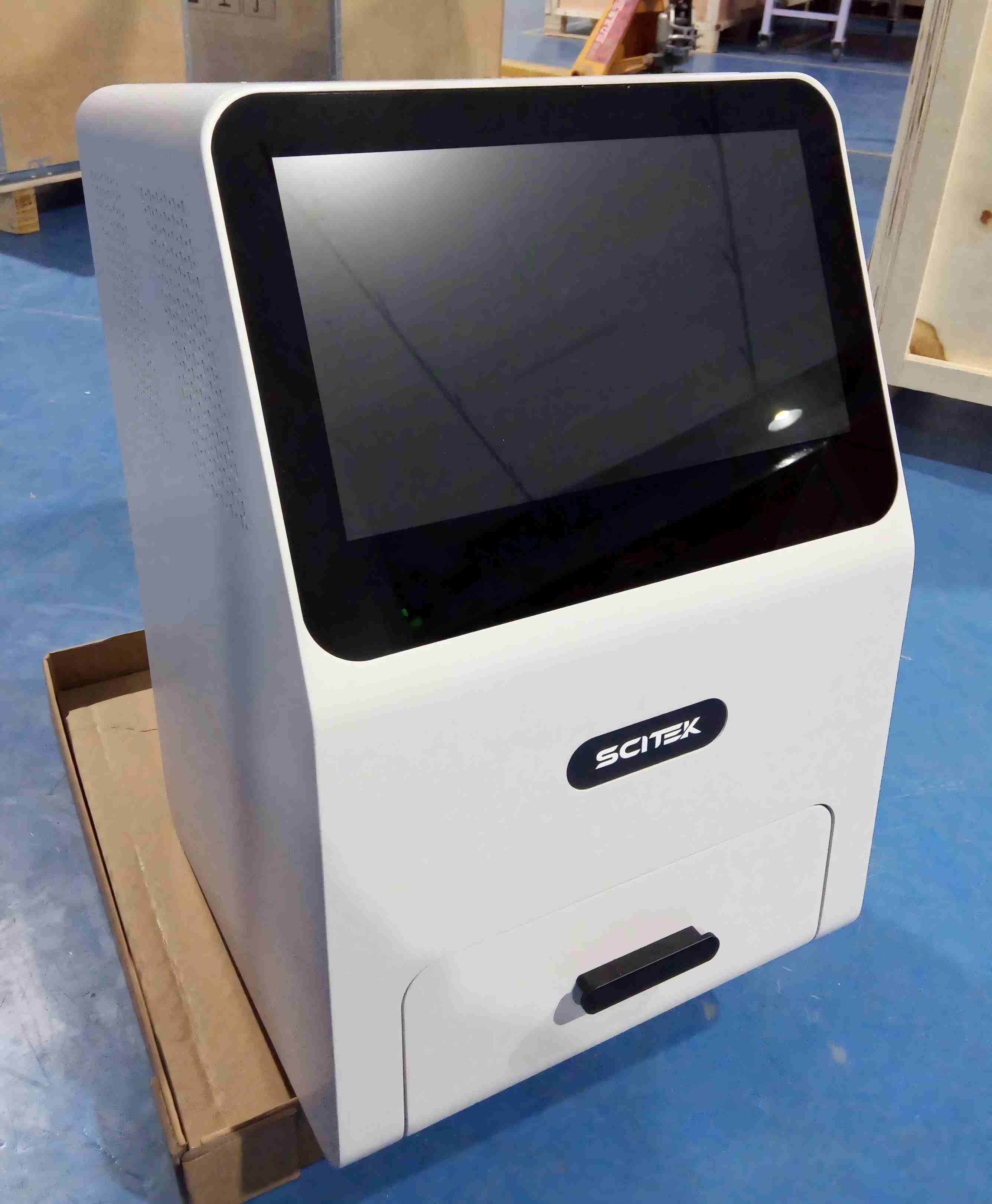

The AG-I3T Automatic Gel Imaging and Analysis System, ready for final inspection before shipment.

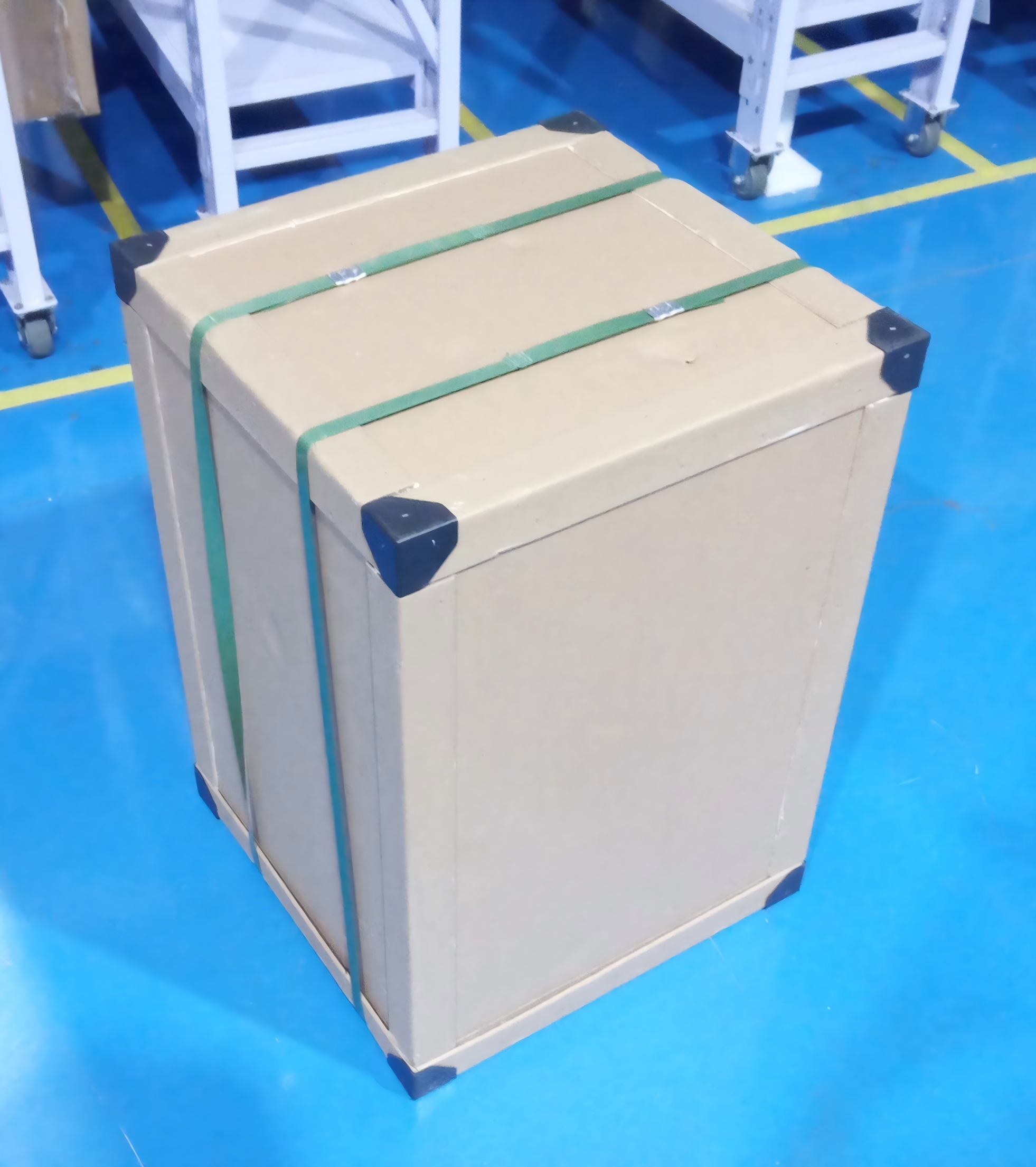

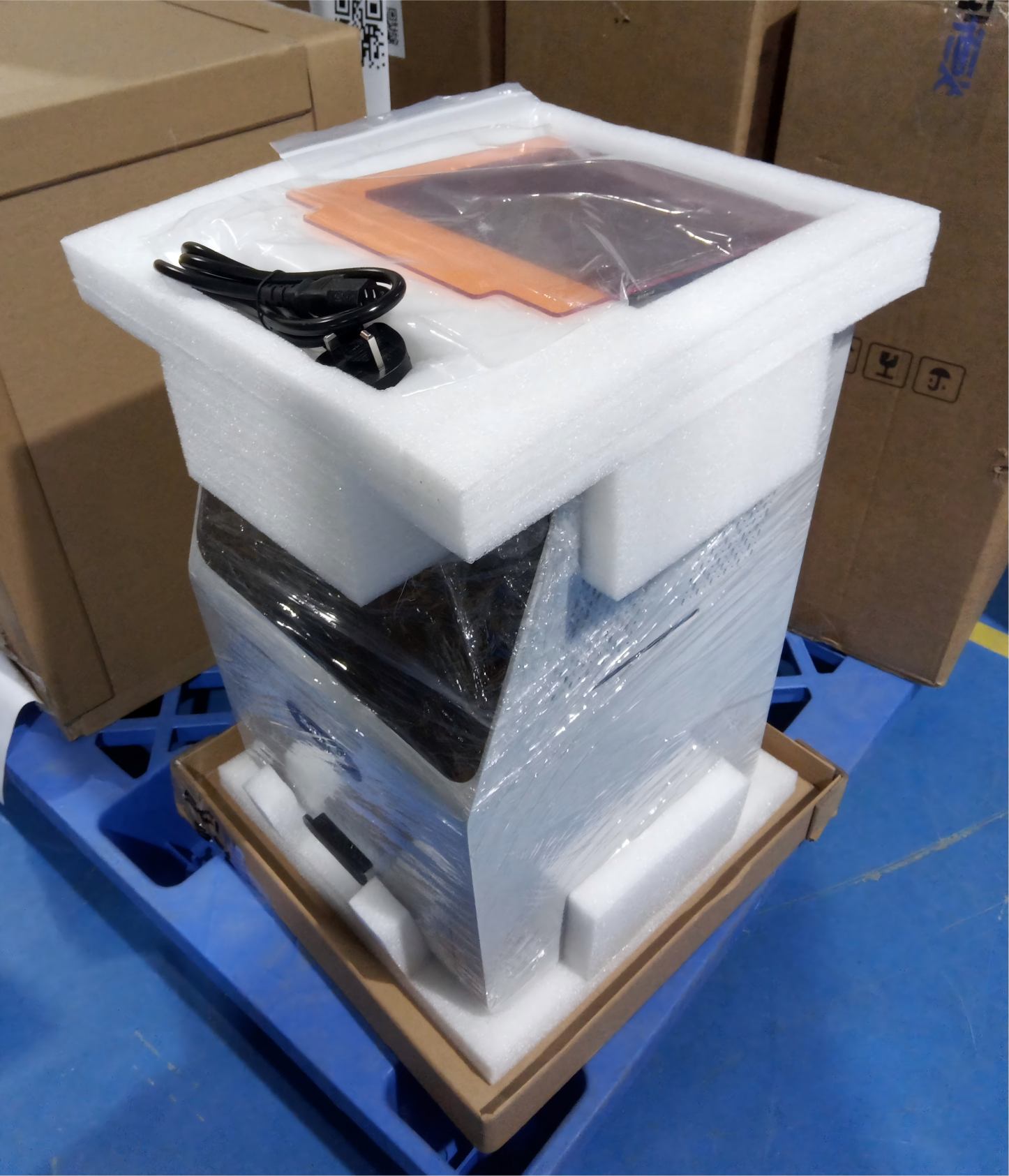

Securely packaged and ready for shipment, the AG-I3T is protected for safe international delivery.

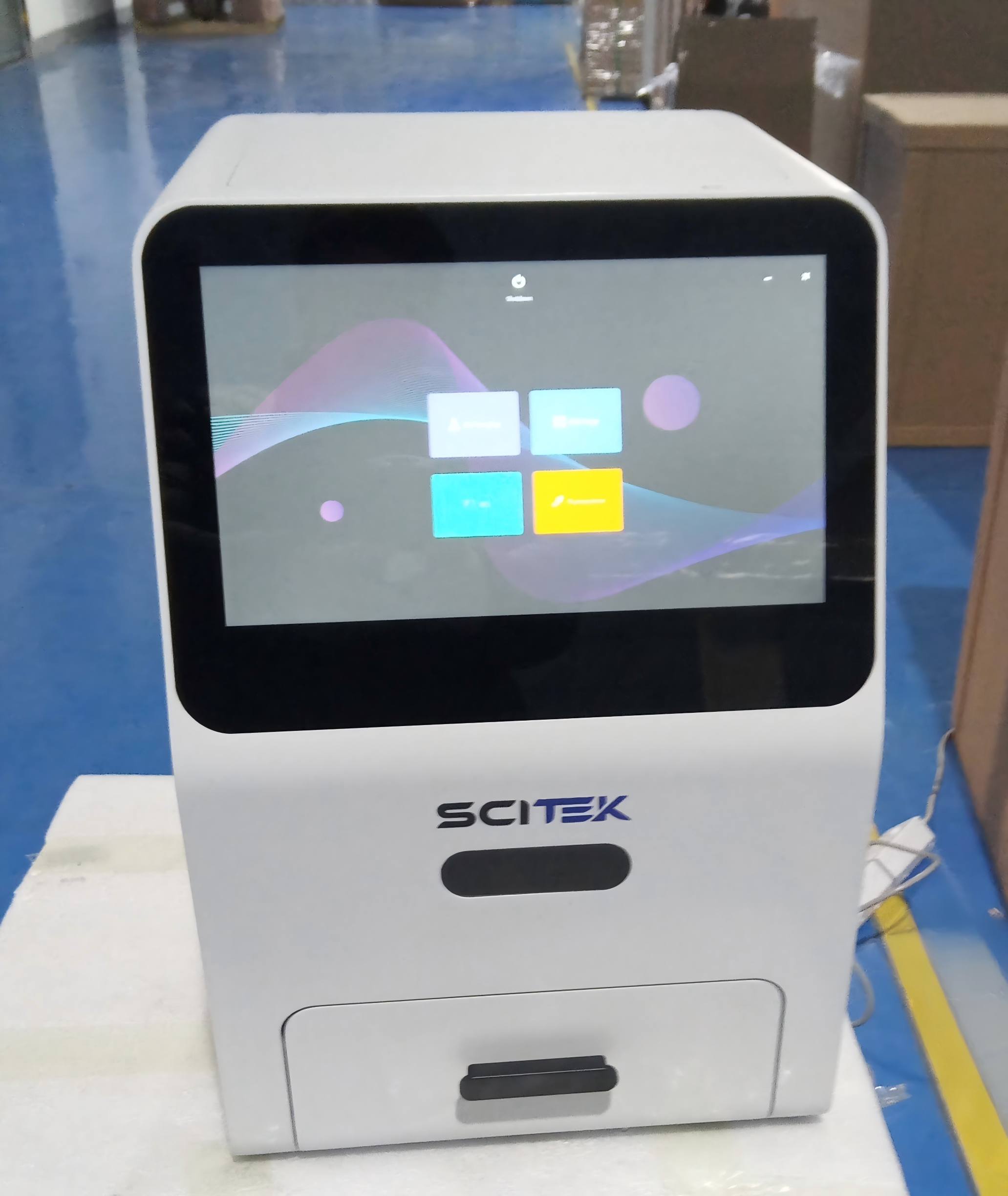

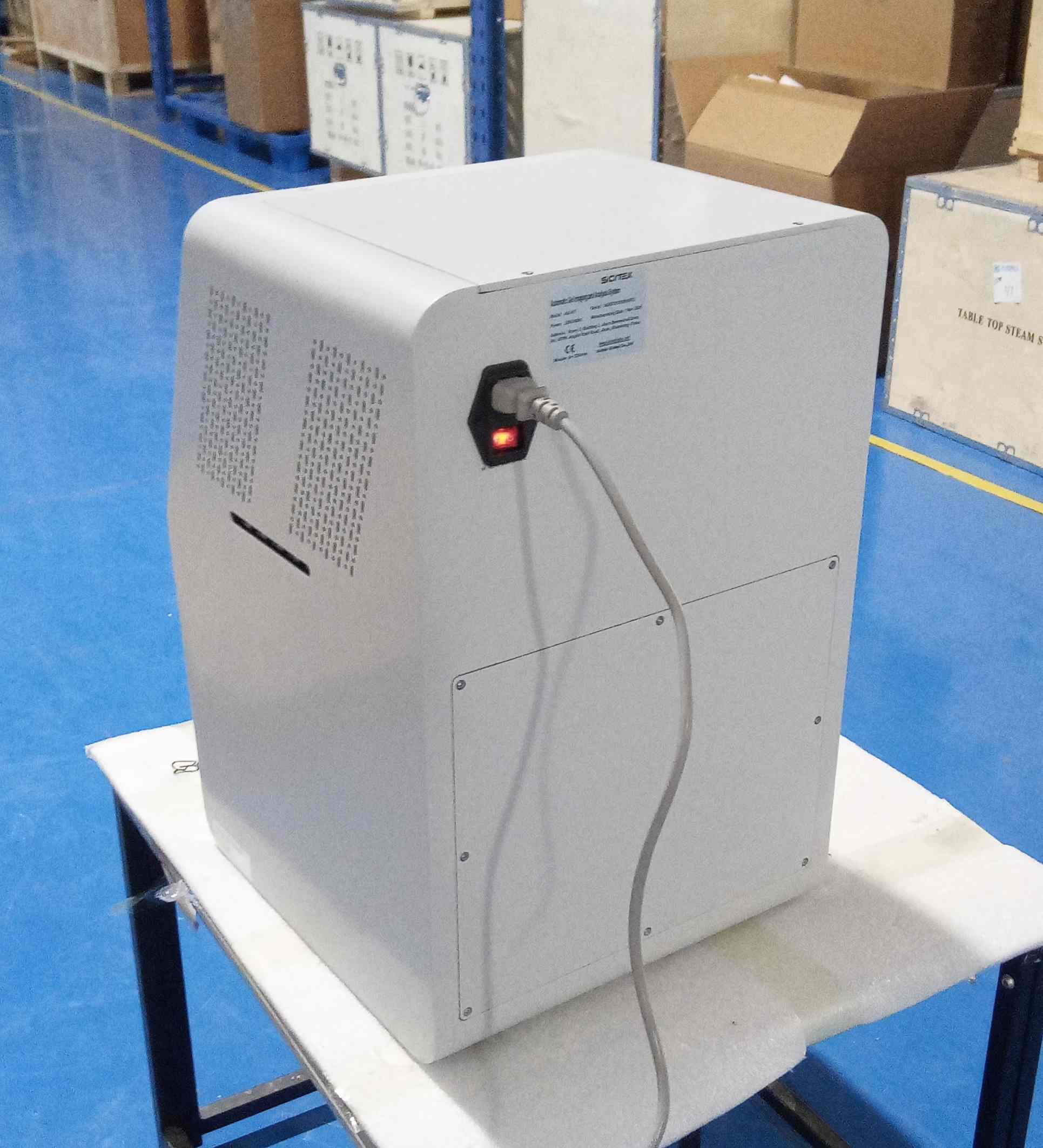

AG-I5T Automatic Gel Imaging and Analysis System:

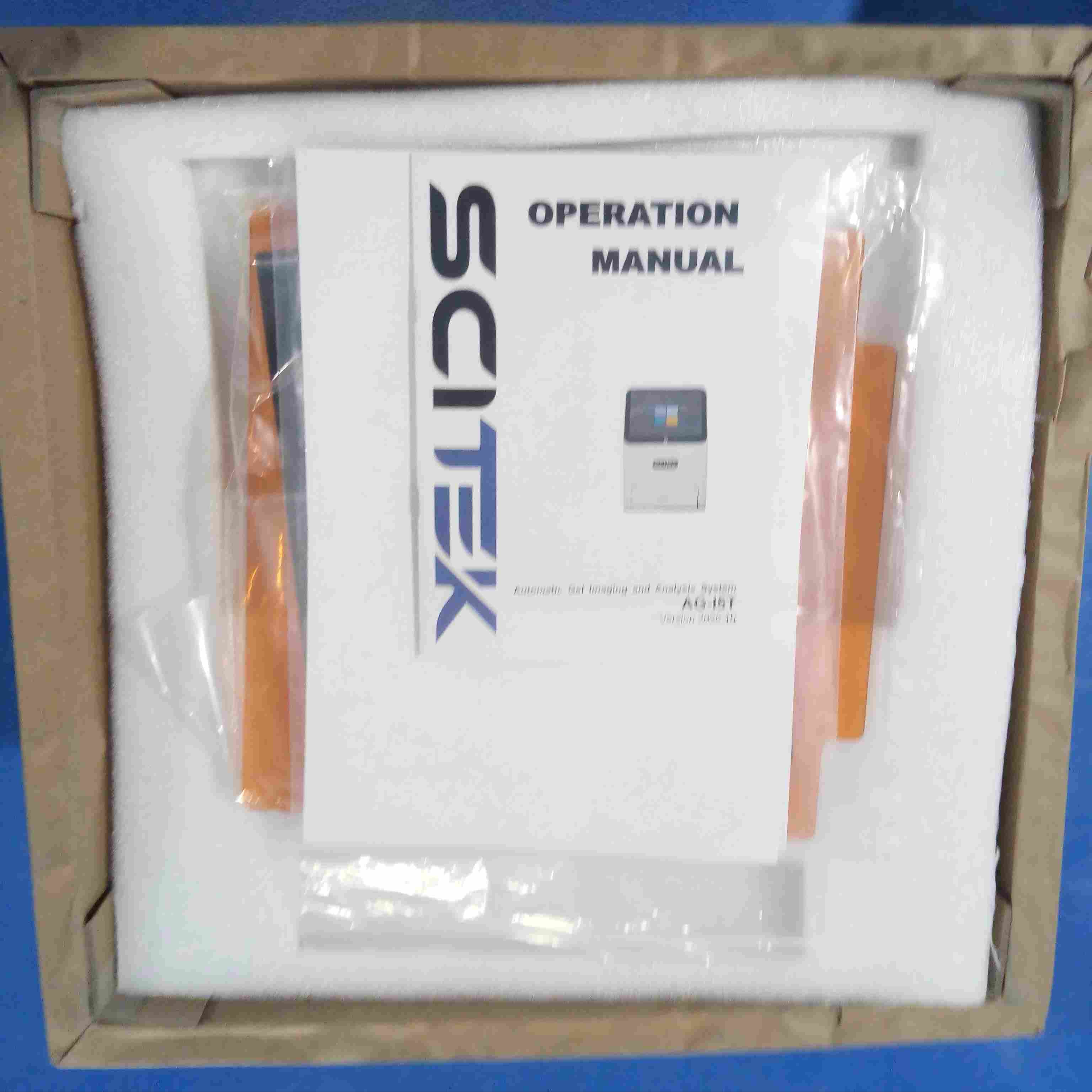

The AG-I5T Automatic Gel Imaging and Analysis System is carefully packed with protective materials to ensure safe handling and reliable delivery during international transportation.
