US-30I leverages advanced automated detection technologies and intelligent recognition algorithms, the system minimizes manual intervention, enhancing detection efficiency and result accuracy. Provides reliable analytical support for the formed elements in urine, aiding clinical diagnosis. Adaptable to diverse application scenarios, from laboratories in healthcare institutions of all levels to physical examination centers, the system balances operational convenience with testing standardization, striving to optimize the laboratory workflow for urine analysis.
Automated Urinalysis Analyzer Feature:
1. Fully Automated Sample Processing:
An intelligent automatic sampling and aspiration system, the instrument can accommodate up to 10 samples simultaneously, enabling continuous multi-sample analysis. This minimizes human operational errors and significantly enhances testing efficiency.
2. Intelligent Capture & HD Imaging:

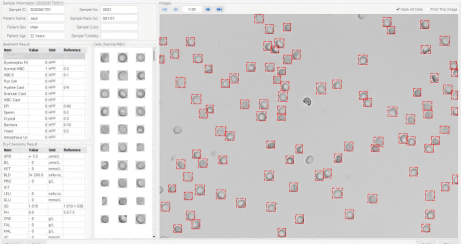

Intelligent autofocus capabilities, precisely captures clear and complete images of samples, providing high-quality visual data to support accurate component identification and counting, thereby minimizing misinterpretations and the need for re-examination.
3. High-Efficiency Detection Without Pre-processing:
Pre-processing-free design, eliminates cumbersome sample preparation steps, thereby enhancing detection efficiency and preventing sample contamination or result deviations caused by human intervention. Ensuring the standardization and consistency of the testing workflow.
4. AI Self-Learning Upgrades:
Features a built-in self-learning intelligent algorithm that continuously learns and optimizes its recognition models, enabling dynamic performance upgrades. Offers distinct advantages for long-term use and helps reduce laboratory operating costs.
5. One-Stop Inspection Solution:
Supports flexible integration with urine dry chemistry analyzer, providing more comprehensive and systematic urine testing information to facilitate the creation of a one-stop urine analysis workstation.
Automated Urinalysis Analyzer Specification:
Model
US-30
US-30I
Test Principle
Machine vision technology, automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods
Sample can be directly tested without centrifugation
Automatic trail suction, 10 samples on the machine at the same time
Requires no manual intervention; automatically identifies and ejects test tubes
High accuracy, single channel flow cell (test channel)
Comprehensive Parameter Analysis
Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC, WBCC, Pus cell, Hyaline Cast, Granular Cast, WBC Cast, Squamous Epithelial cell, Normal Epithelial Cell, Sperm, Calcium Crystal, Oxalate Crystal Bacteria, Yeast, Amorphous Urates, Mucus etc.
Report Form
~unit/uL, HPF&LPF etc. International universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis
Measurement (L×W×H)(mm)
520×440×550
380×286 ×363
Shipping Size (W×D×H)(mm)
950×630×750
610×570×810
N.W./G.W.
35/73.5 kg
30/53 kg
Match
US-30I can be connected to a Urine Chemistry Analyzer to establish a fully automated urinalysis workflow. A compatible analyzer of the same model is recommended.
Data Interface
Two-way communication interface, can be connected with dry chemistry analyzer, printer and hospital management system
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
