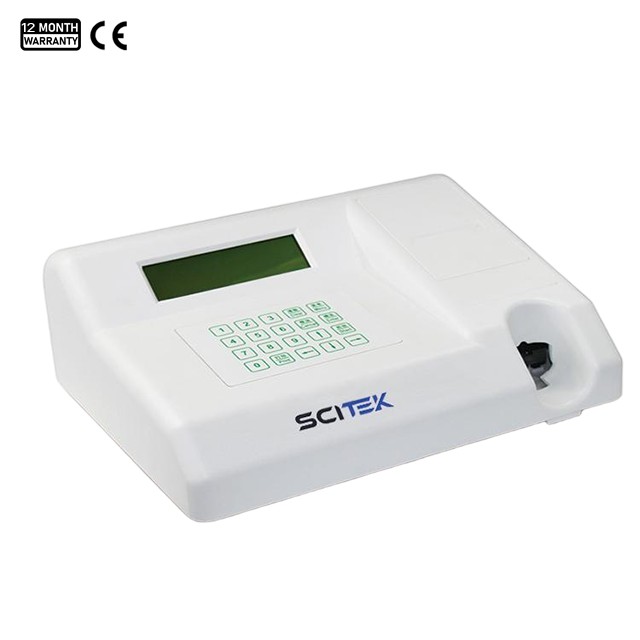

Semi-Automatic Urinalysis Analyzer

Model : UA-200

Wavelength : 525-660 nm
Throughput : 120 test/hr
Storage : 2000 patient data
Sizes(W×D×H)(mm) : 350x285x140

Availability:
Quantity:

Semi-Automatic Urine Analyzer Specifications:

ModelUA-200
Test Speed120 samples/hour
Measurement PrincipleUltra-high brightness cold light source, reflectometry principle
Scope of Application10, 11, 12 and 14 parameters
Test ItemsGlucose (GLU), Bilirubin (BIL), Ketone (KET), Specific gravity (SG), pH, Blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Leukocyte (LEU), Ascorbic acid (VC), Creatinine (CRE), Calcium (CAL) and Microalbumin (MAL)
Record MethodThermal print/LCD display
Detection Wavelength525nm-660nm
Working EnvironmentTemperature: 15°C~35°C; Humidity: <85%
Power50VA
Data CommunicationRS232 interface, can connect with urine sediment analysis system, hospital management system
Data Storage2000 test results can be stored, can be queried according to the record number
Report ModeInternational units or conventional units
PrintingBuilt-in high-speed thermal printer
LCD Display40x64 dot matrix, 37x13mm
Sizes(W×D×H)(mm)350x285x140
Shipping Size(W×D×H)(mm)520x400x270
N.W./G.W. (kg)2.6/7

Semi-Automatic Urine Analyzer Features:

The UA-200 is a semi-automatic urinalysis machine that uses advanced technology and algorithms to quickly and accurately analyze the chemical composition of urine samples. The device can analyze urine samples and generate detailed reports quickly. Using the urinalysis machine improves the efficiency and quality of healthcare services, bringing convenience and accuracy to the urine testing process.

  1. Easy to use and quick to operate

  2. Accurate testing

  3. Built-in thermal printer for direct printing of test results

  4. RS232 interface to connect to other systems, such as the urine sedimentation system.

  5. Failure diagnosis function, when the instrument malfunction can be automatically diagnosed and recovery/alarm

  6. Traceability: Each test result can be photographed and archived for the user's convenience.
