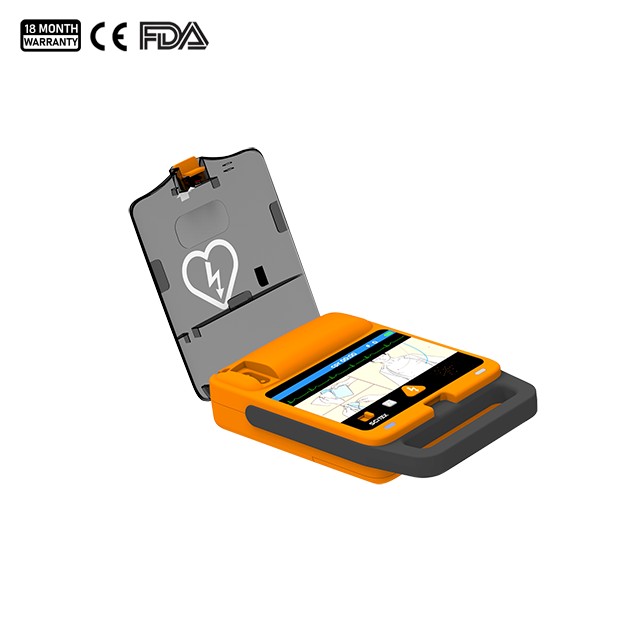

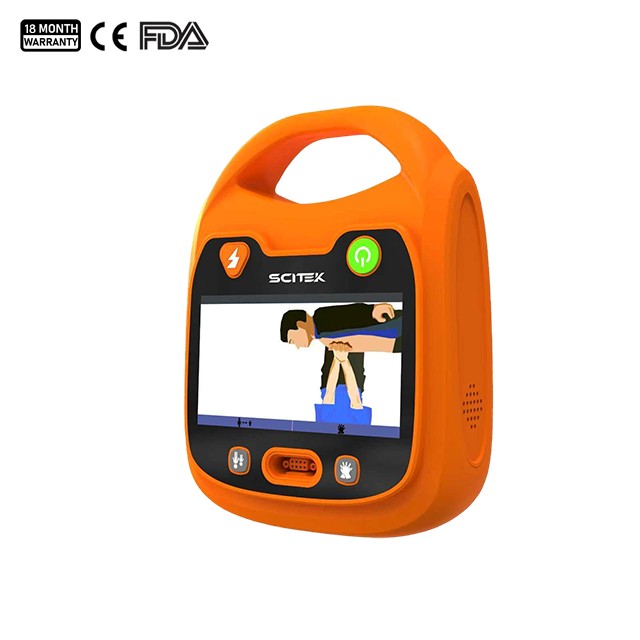

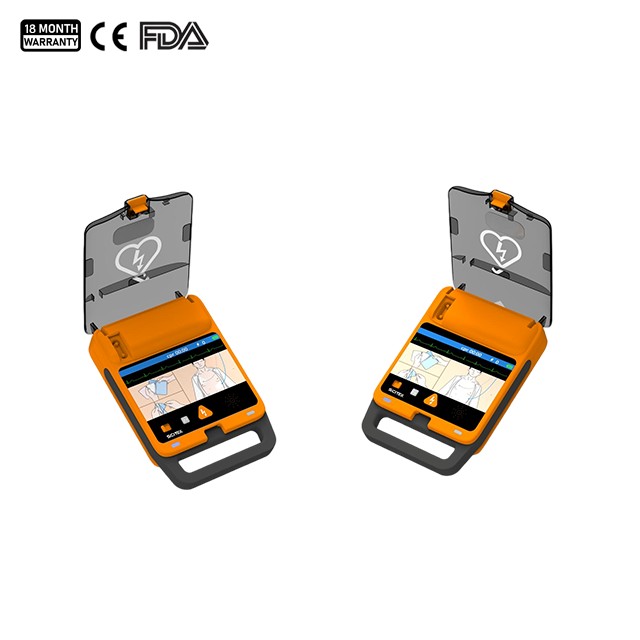

Automated External Defibrillator Application:
AED is a crucial piece of equipment for emergency treatment of cardiac arrest, helping to restore a patient's normal heart rhythm. When used in conjunction with CPR (cardiopulmonary resuscitation), it can significantly improve the success rate of resuscitation. Widely deployed in various densely populated places and special settings, covering civilian, commercial, and medical fields.
Automated External Defibrillator Feature:
Fully intelligent voice guidance + LED lighting provide dual guidance, allowing even those with no prior experience to quickly learn first aid.
Multiple intelligent safety protections: Accurately identifies human impedance, automatically locking off discharge in case of abnormal electrode adhesion or unattended status, eliminating the risk of accidental electric shock.
Automatic self-check function monitors device status in real time, providing timely fault alerts, ensuring constant readiness for emergency rescue.
Compact and lightweight design, easy to wall-mount, carry, or vehicle for emergency placement.
Dedicated long-life disposable lithium battery offers numerous discharge cycles and a long lifespan, significantly reducing future maintenance and replacement costs.
ED-01 economical model meets over 95% of daily cardiac arrest emergency needs in public places, offering stable performance and excellent value.
ED-03 high-spec model boasts a powerful 360J output, meeting the needs of obese individuals and those experiencing severe cardiac arrest, providing broader emergency coverage.
ED-03 Equipped with a standard ECG lead interface, supporting diagnostic-grade ECG monitoring.
Automated External Defibrillator Specification:
Model | ED-03 | ED-01 |
|---|
Mode | Adult, Child |
Waveform | Biphasic truncated exponential |
Energy | Max. 360 Joues | Max. 200-Joues |
Energy Sequence | Child: 10–100 J; | Child: 50 J; |
Adult: 100–360 J; | Adult: 150/200 J; |
Charge Time | 4 s to 200 J; | 6 s to 150 J; |
7 s to 360 J (New battery); | 8 s to 200 J (New battery); |
Control | 3 buttons: Defibrillation, Mode switching, Language switching | 4 buttons: On/Off, Shock, Adult/child, CPR |
Voice Prompt | Extensive Voice Prompt |
Visual Indicator | LED prompts, Automatic Self-test |
Output Energy Accuracy | ±10% into any impedance from 25 to 175 Ω |
The Maximum Voltage | 2000±50 V | 1400±50 V |
Human Body Impedance Protection | 20 to 200 Ω |
Rhythm Analysis To Discharge Preparation (New Battery) | Max. time ≤10 s |
Rhythm Analysis To Discharge Preparation (After 6 Shocks) | Max. time ≤10 s |
Power-On To Discharge Ready Time | Max. time ≤15 s | Max. time ≤18 s |
Non-Rechargeable Battery | 4200 mAh | 2800 mAh |
Battery Service Life | 200 times discharges at 360 Joules | 120 times discharges at 200 Joules |
Operating Temperature & Humidity | 0–40 °C, 30%–95% RH (non-condensing) |
Storage Temperature & Humidity (Without Battery) | -20 to 55 °C, Up to 93% (non-condensing) |
External Size (W×D×H)(mm) | 280×209×80 | 280×209×80 |
Shipping Size (W×D×H)(mm) | 280×140×415 | 330×165×360 |
N.W./G.W. (kg) | 2.6/3.2 | 2.5/3.2 |
