Fully Automatic Tissue Slide Stainer TS-II

Model : TS-II

Number of Processing Cups : 18
Number of Slides Processed at the Same Time : 52 slides
Dripping Time : Adjustable within 0-30 s (shakes above cup)
Sizes(W×D×H)(mm) : 1175×460×470
The fully automatic slide stainer is suitable for staining tissue samples in scientific research.
Availability:
Quantity:

The TS-II is a high-throughput, fully automated slide stainer with the flexibility to process H&E and specialty stains simultaneously. Optimized and validated protocols and specially designed consumables provide consistent staining results at all intensities expected by pathologists.

The new, fully automated and innovative TS-II slide stainer simplifies the staining process and eliminates workflow bottlenecks. Intuitive, easy-to-use software provides more control and reduces the potential for human error. Ultimately, this frees up your time to perform other tasks and meet the demands of an ever-increasing workload.

Fully Automatic Tissue Slide Stainer Specifications:

Model TS-II
Number of Cups 18 (Station 10 is for washing and Station 1 is for drying)
Number of Slides Processed at the Same Time 52 slides
Length of Processing Time in the Cup Adjustable within 0 – 59 minutes and within 0 -59 seconds
Dripping Time Adjustable within 0-30 s (shakes above cup)
Power  Supply AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power 500 W
Sizes(W×D×H)(mm) 1175×460×470
Shipping Size(W×D×H)(mm) 1320×570×670
N.W./G.W. (kg) 85/115

Fully Automatic Slide Stainer Features:

  1. High-definition sensitive touch-sensitive color LCD, clear display and easy to operate.

  2. Support man-machine dialogue; abnormal conditions can be timely alarm. Ensure that you can instruct every operation.

  3. Randomly set the start time and automatically display the end time to ensure the task is completed at the specified time.

  4. Can set 36 immersion steps, error alarm function

  5. A total of four programs can view online

  6. Randomized start time and automatic end time display ensure the task is completed within the specified time.

  7. 18 stations, the 10th station for cleaning, the first station for baking station

  8. Environmentally friendly internal circulation air purification system, exhausting harmful gases

  9. 0-30s adjustable oscillation and leaching time reduces the chance of reagent mixing and thus prolongs the use of reagents.

Details of automatic slide stainer:

automatic slide stainer

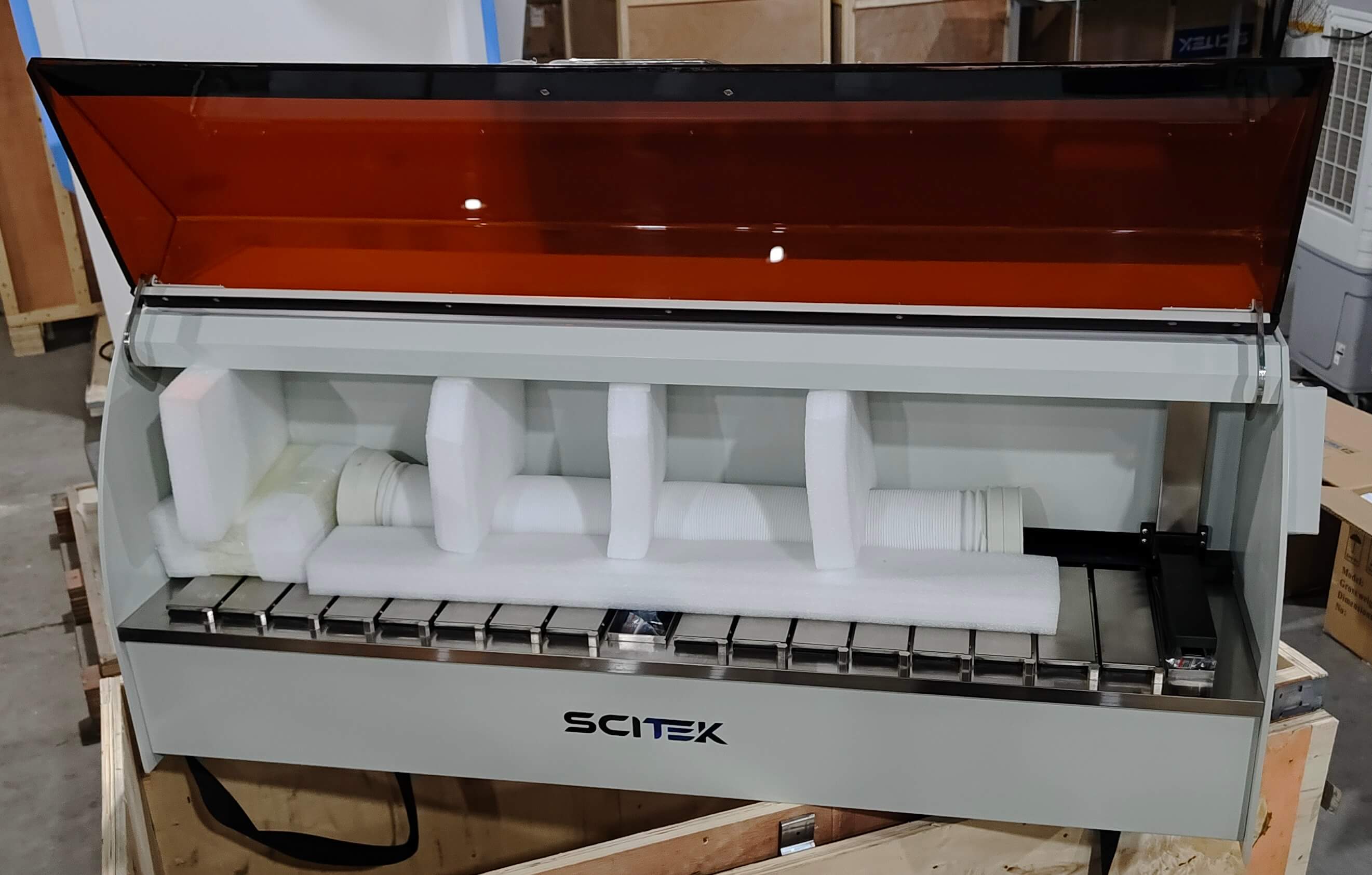

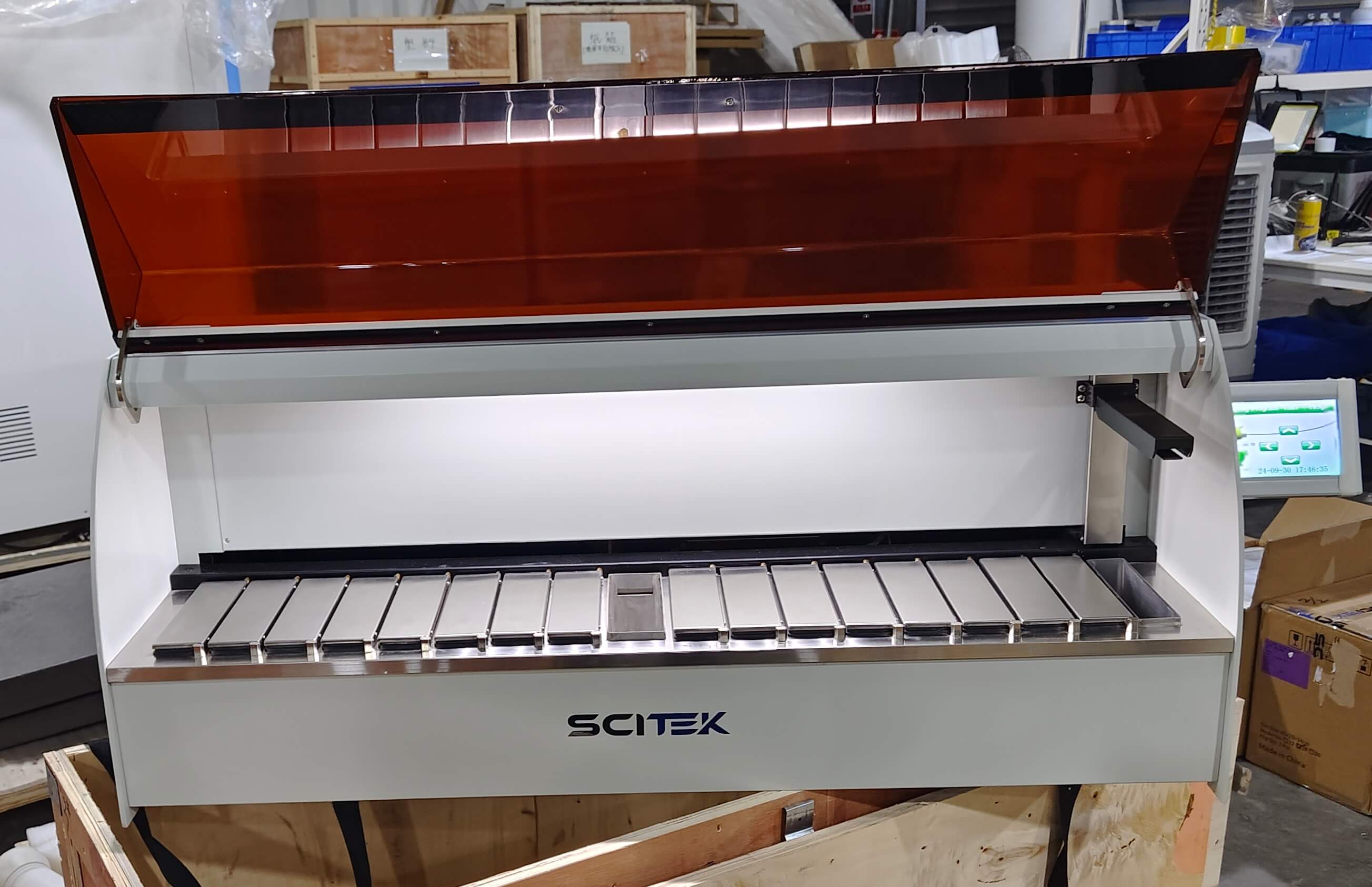

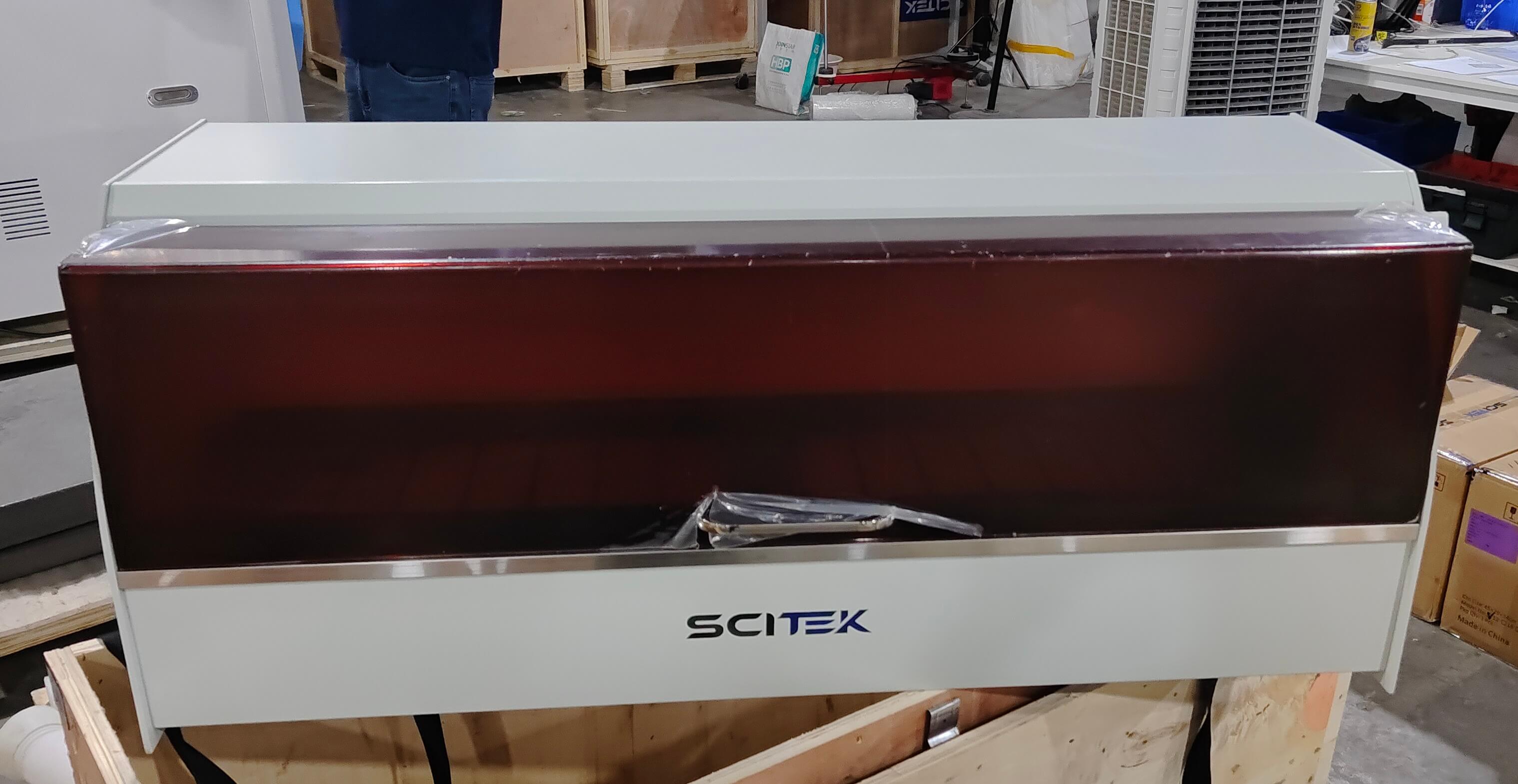

The front of this automated slide stainer has a clean design with a large clear cover set in the center for viewing the staining process in real time.

automatic slide stainer

TS-II (2)

TS-II (5)

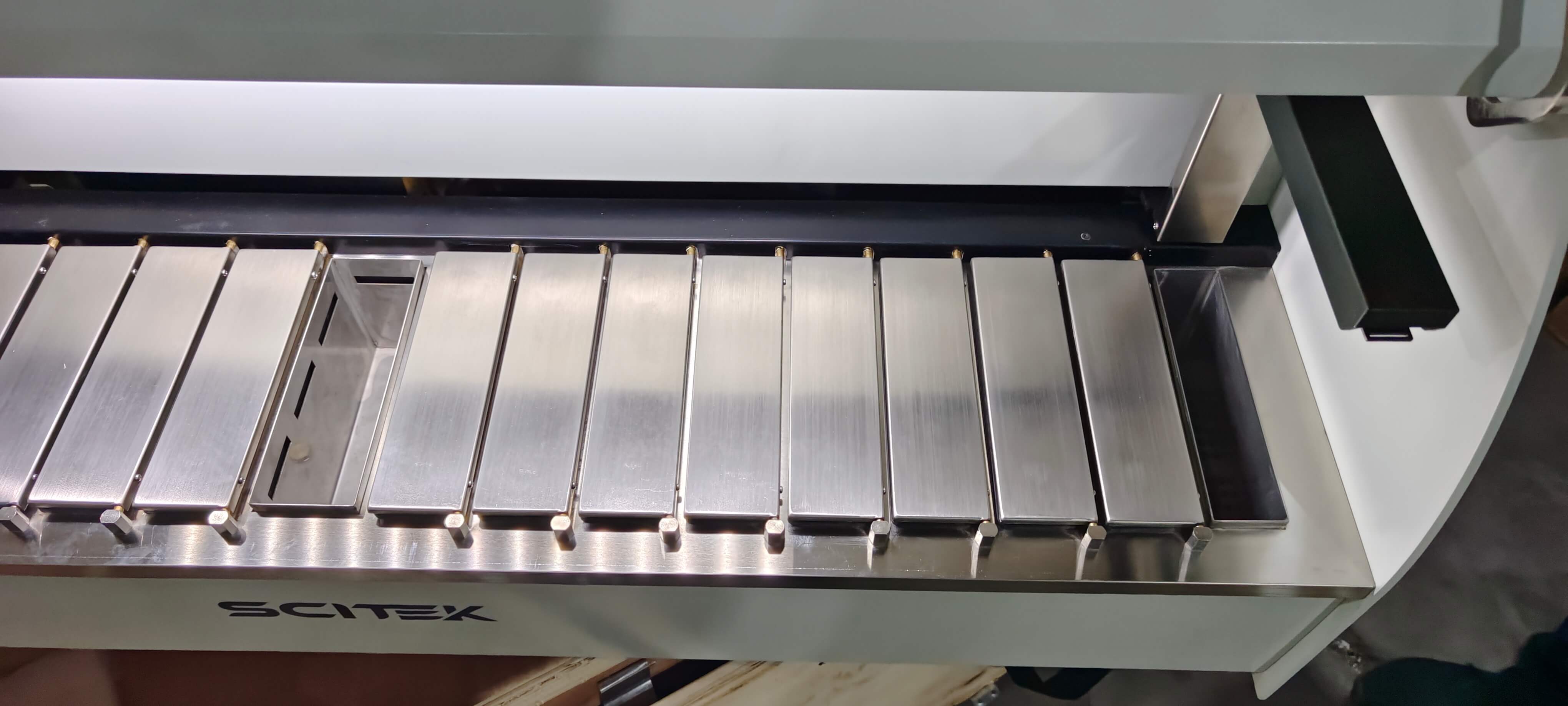

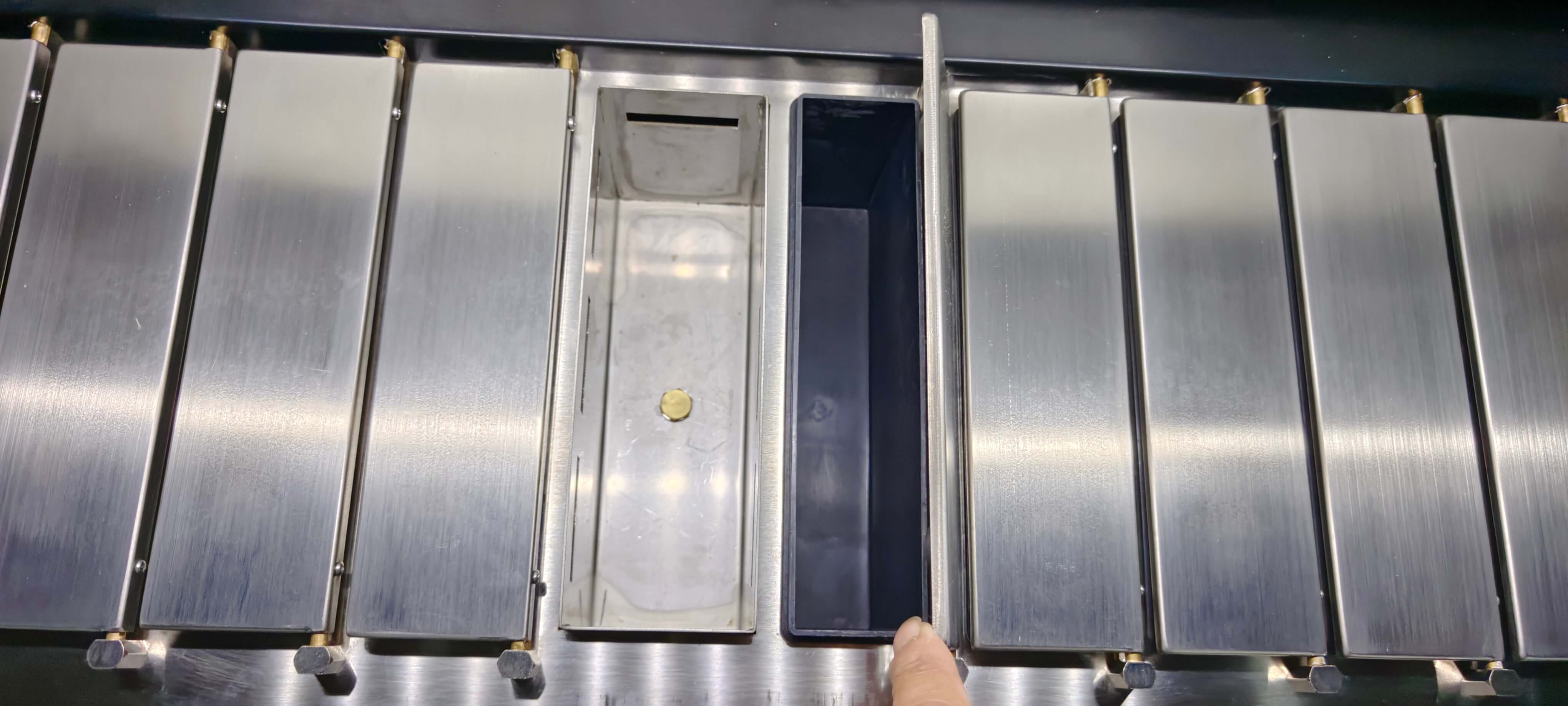

The automated slide stainer is equipped with multiple staining troughs and liquid handling system inside, the troughs are used to place slides and the staining solution is automatically transported to each trough through a piping system.

TS-II (10)

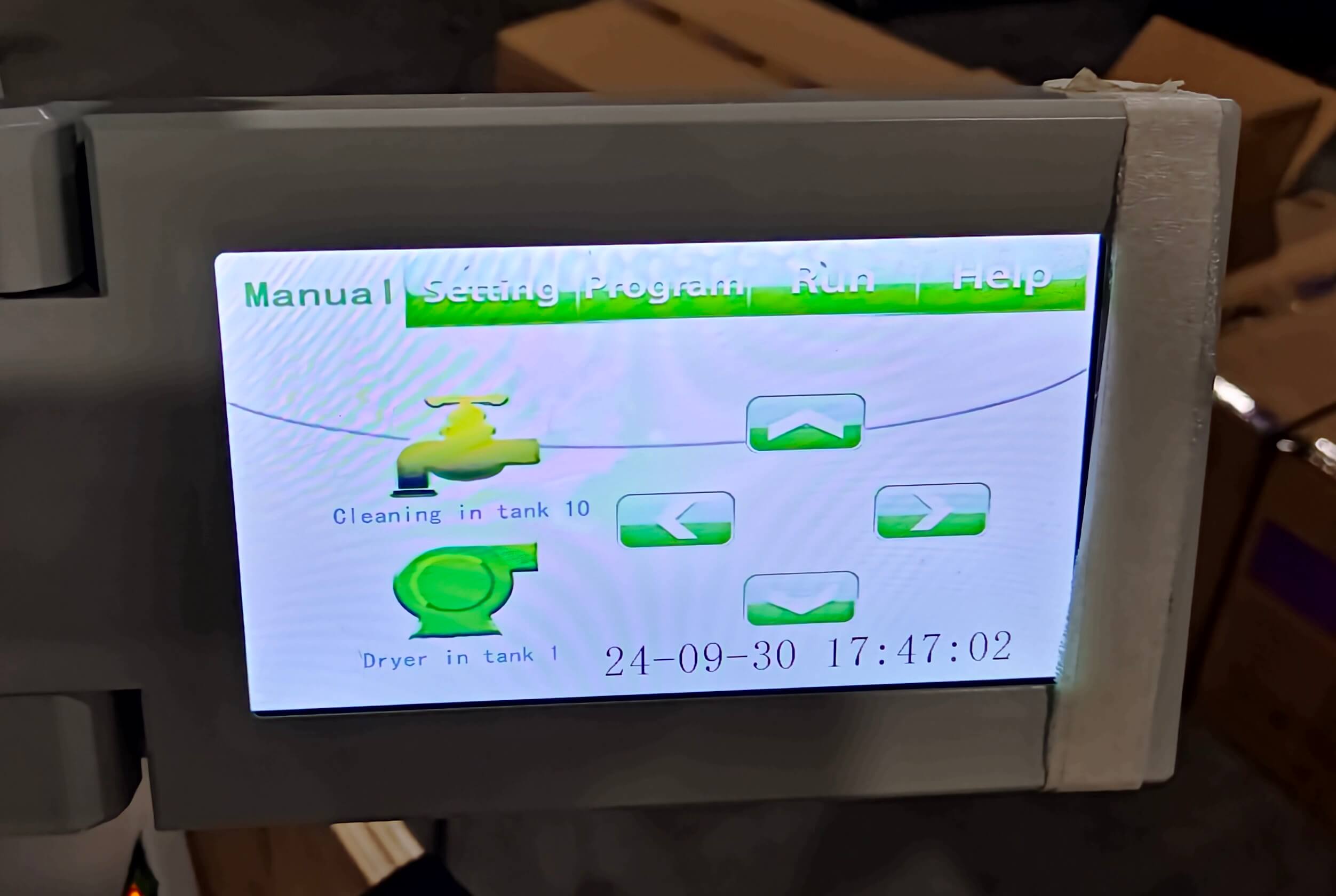

The right side of the automated slide stainer is equipped with a high-definition display showing the status and settings of the staining process for quick operation and monitoring.

automated slide stainer
