Application:

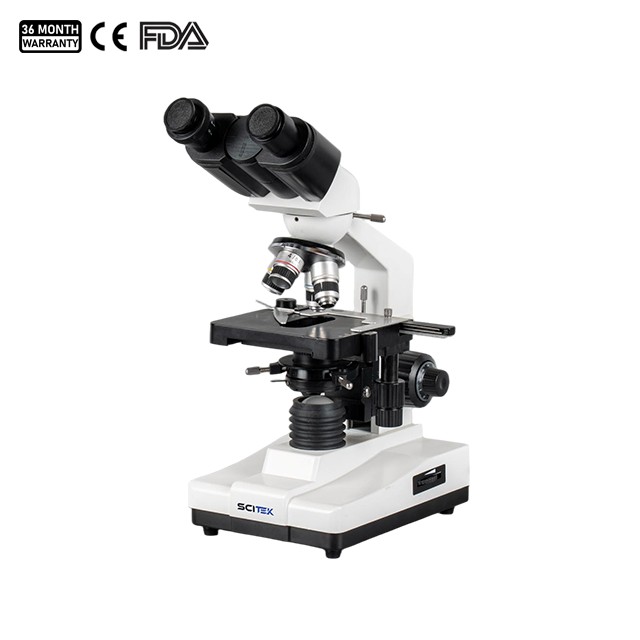

MSC-100 biological microscope is widely used in research institutes such as biology, cytology, histology, and medicinal chemistry. With high-quality optical components and engineering design, it serves as a reliable tool for laboratory work and supports a wide range of laboratory applications.
Advantage:
1. 1.45° inclined binocular head, allowing two observers to simultaneously view the sample under the microscope.
2. It can perform three routine examinations in medicine and can be used for teaching in school laboratories.
3. This instrument uses an electric light source with continuously adjustable brightness.
Specification:
Model | MCS-100 |
Achromatic Objective | 4X, 10X, 40X (spring), 100X (spring.oil) |
Eyepiece | Wide field eyepieces WF10XM (WF16X optional) |
Viewing Head | Compensation free binocular head |
Nosepiece | Quadruple |
Stage | Double layer mechanical stage, size:110×125 mm |
Focusing | Coaxial Coarse And Fine Adjustment, Focusing Range 20 mm |
Illumination&Amp;Condenser | N.A=1.25 Abbe condenser & Iris diaphragm |
Power | AC Input 220 V or 110 V, DC output 6 V |
