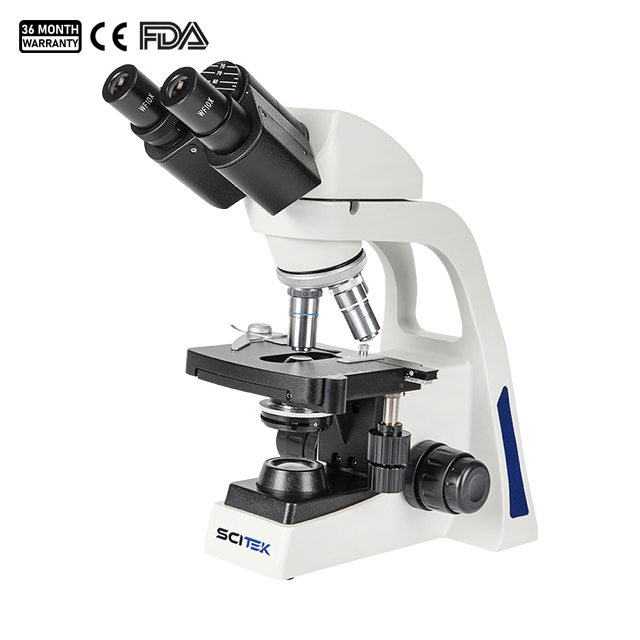

The overall structural design is small and rigid,and the penetrating flanks on both sides of the frame not only play an embellishment role,but also make the whole machine look smart. The curved arc mirrorarm adopts hollow design, which reduces weight and is ergonomic and can be moved with one hand.It is committed to meet the needs of modern biology teaching,basic medical treatment and scientificresearch in different fields.
Model | MSC-D2021B | MSC-D2021T |
---|---|---|
Viewing Head | 30°inclined, gemel binocular head, interpupillary distance: 50-75mm, Diopter±5 adjustable | |
30°inclined, gemel tinocular head, interpupillary distance: 50-75mm, Diopter±5 adjustable | ||
Eyepiece | WF10X/18mm, WF10X/20mm, PL10X/18mm Optional | |
Objective | Achromatic objective(4X, 10X, 40X, 100X) | |
Plan achromatic objective(4X, 10X, 40X, 100X) | ||
Optical system | Finite Color, Infinite Color Corrected Optical System | |
Nosepiece | Quadruple nose piece | |
Focus adjustment | Coarsely adjustable coaxial focusing mechanism, coarse rang: 8mm Fine precision: 0.004mm; With elastic adjustment device | |
Stage | Double layers stage 115*125mm | |
Condenser | N.A.1.25 ABBE Condenser and Iris Diaphragm | |
lumination | Preset, wite sitageustovi 24Bv, 50 sho Hgingomotlczv2 center preset, wide voltage 100V-240V, output bulb center | |
Others | Transmission filter: blue, yellow, green; Phototube: 0.35X, 0.5X, 1XC-mount for camera |
Sample preparation is simple. Quick preparation: Usually only simple staining or sectioning is needed for observation. Live observation: Some microscopes support direct observation of live samples.
Advanced digital imaging technology: Modern microscopes are equipped with digital cameras for easy image recording and analysis.
Easy to operate, user-friendly, designed for easy operation, suitable for researchers with different levels of experience.
High cost-effectiveness and cost-effectiveness: Compared to electron microscopes, it has a lower price and lower maintenance costs. Widely popularized: suitable for various laboratories and research institutions.
