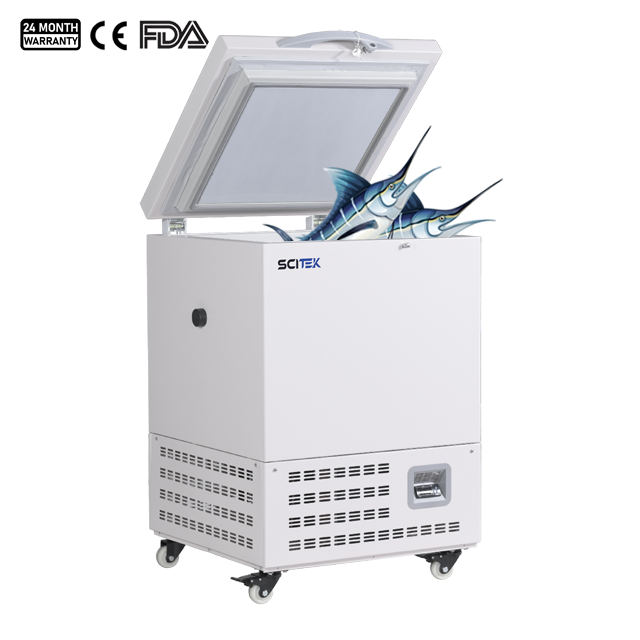

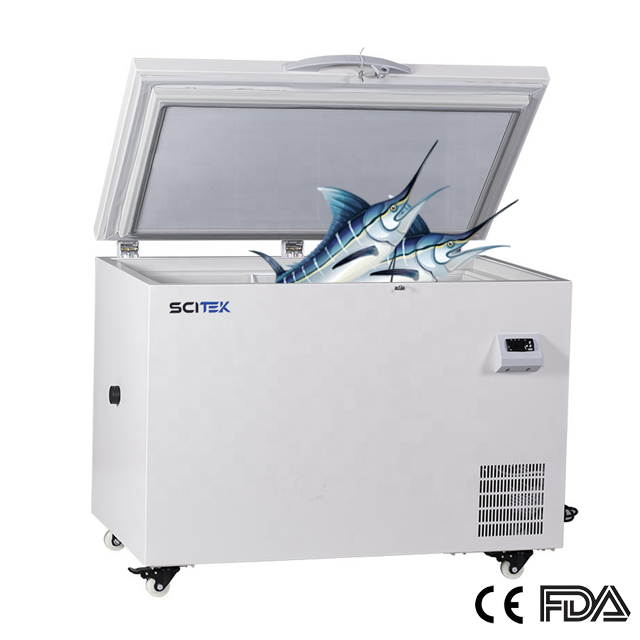

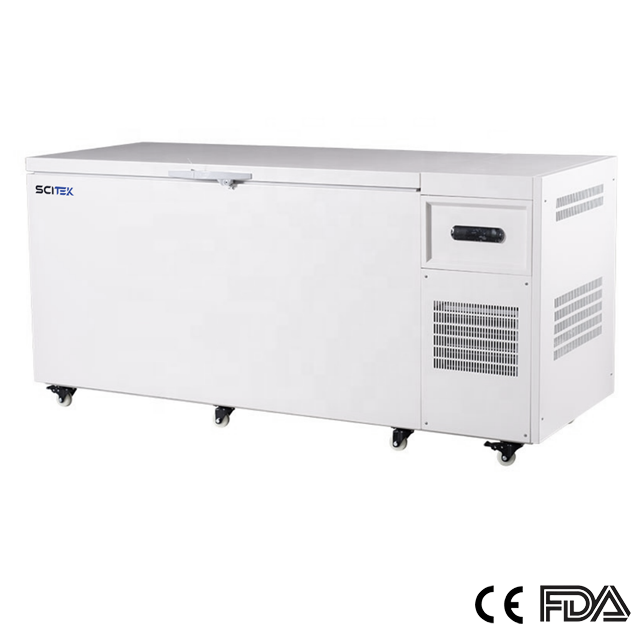

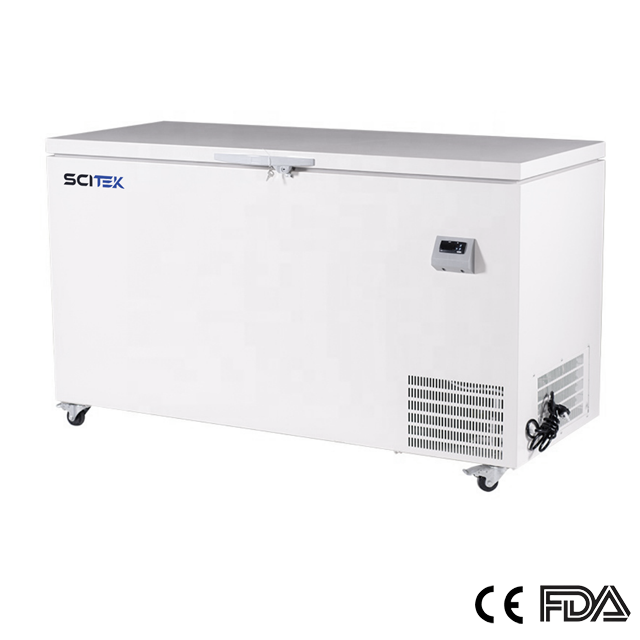

-60°C Tuna Freezer

Model : FZ-60H60; FZ-60H120; FZ-60H220; FZ-60H320; FZ-60H460

Capacity (L) : 58 / 120/ 220/ 320/ 458
Internal Size (mm) : 410x410x385 / 700x470x385 / 960x470x600 / 1330x470x600 / 1380x500x600
Temperature Range (℃) at RT.10~32℃ : -25~-65℃, adjustable

Availability:
Quantity:

Ultra-low Freezer Specifications:

ModelFZ-60H60FZ-60H120FZ-60H220FZ-60H320FZ-60H460
Capacity (L)58120220320458
Size
 (WxDxH)
Internal (mm)410x410x385700x470x385960x470x6001330x470x6001380x500x600
External (mm)670x765x1025900x765x9451160x765x8851530x765x8852110x895x1090
TemperatureRange (℃)-25~-65℃, adjustable-25~-65℃, adjustable-25~-65℃, adjustable-25~-65℃, adjustable-25~-65℃, adjustable
SensorPTCPTCPTCPTCPTC
ControllerMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessor
Cooling
 System
RefrigerantMixed with CFC freeMixed with CFC freeMixed with CFC freeMixed with CFC freeMixed with CFC free
DefrostManualManualManualManualManual
Compressor
(Qty)
SECOP/1SECOP/1SECOP/1SECOP/1SECOP/1
DisplayLEDLEDLEDLEDLED
Audible &
 Visible Alarm
High/Low
Temperature
StandardStandardStandardStandardStandard
Sensor FailureStandardStandardStandardStandardStandard
MaterialExternalElectro-galvanized steel with
 antimicrobial powder coating
Electro-galvanized steel with
 antimicrobial powder coating
Electro-galvanized steel with
 antimicrobial powder coating
Electro-galvanized steel with
 antimicrobial powder coating
Electro-galvanized steel with
 antimicrobial powder coating
Inner Door304 stainless steel304 stainless steel304 stainless steel304 stainless steel304 stainless steel

CastersStandardStandardStandardStandardStandard
Temperature
Recorder
OptionalOptionalOptionalOptionalOptional
Test Hole (Qty) /
Diameter (mm)
1/181/181/181/181/18
Shelves / Drawers (Qty)/////
Sound Emission (dB)6060606060
ElectricityVoltage /
Frequency
220V, 50/60Hz; 110V, 60Hz220V, 50/60Hz; 110V, 60Hz220V, 50/60Hz; 110V, 60Hz220V, 50/60Hz; 110V, 60Hz220V, 50/60Hz; 110V, 60Hz
Consumption (W)360340400480520
N.W. / G.W. (kg)83/10889/114106/136126/156207/237
Shipping Size (WxDxH) (mm)750x845x11751000x845x10951260x845x10351630x845x10352190x975x1240


Mainly used for scientific research institutions, ultra-low temperature experiments with special materials, electronics industry, chemical industry, military industry, university laboratories, bioengineering, offshore fisheries, etc.

Ultra-low Freezer Features:

  1. Microcomputer control, real-time temperature display, temperature with 0.1°C increment .

  2. High and low temperature alarm function, alarm temperature value can be set as required.

  3. Inner chamber temperature is adjustable; Alarm temperature could be customized as requirements.

  4. Built in adjustable stainless steel shelf, easy to use and to clean.

  5. Food grade stainless steel inner chamber, safe and secure.

  6. Heavy duty caster design, easy to move.

  7. Safety door lock is designed to prevent random opening.

  8. Wide voltage band design, suitable for 187V ~ 242V AC voltage.


Reliability

  1. Ultra-thick foam layer and double-sealed door effectively protect freezer's internal temperature.

  2. Cooling system is optimized for self-replication, and the imported compressor provides strong and efficient refrigeration capacity.

  3. German EBM fan, stable performance and low noise.


Safety system

  1. Audible and visible alarm: High and low temperature & sensor error alarm.

  2. Multiple protection functions: Frequent start-up protection, refrigeration system keeps running in case of sensor failure.
