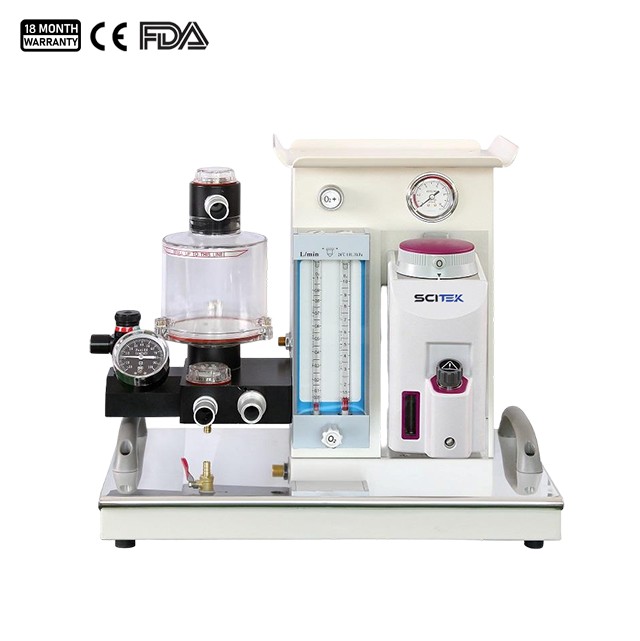

Veterinary Anesthesia Machine, VAM-T60

Model : VAM-T60

Oxygen Flush : 25~75 L/min
Airway Pressure (O₂) : 0.32~0.6 MPa
Flow Meter (O₂) : Dual tube flow meter: 0 ~ 1 L/min, 1 ~ 10 L/min
Vaporizer Reagents : Halothane / Isoflurane / Sevoflurane

Working Mode : Closed, Hand-closed, Semi-open

This machine is widely used for routine surgeries and specialised interventions, ensuring that veterinary professionals can provide safe and effective anaesthesia management, designed for anesthesia of small and medium animals weighing 1~25 kg.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

The Veterinary Anesthesia Machine is designed for use in veterinary clinics and animal hospitals to safely

administer anesthesia to small animals during surgical procedures. Its integrated, compact design allows for

easy transport and setup, making it ideal for both mobile and stationary use. The machine features stainless

steel countertops that ensure durability, rust resistance, and low maintenance costs.

Advantage:

1.Universal anesthesia machine.

2. Integrated design, compact structure, easy to move.

3. Stainless steel countertops, never rust, reduce maintenance costs.

4. Advanced Bain loop design, save oxygen and anesthetics, suitable for open anesthesia of small animals.

Specification:

Model	VAM-T60
Main Unit	Breathing Mode	Manual, Touch Control (requires adaptation to anesthesia ventilator)
	Working Mode	Closed, Hand-closed, Semi-open
	Oxygen Flush	25 ~ 75 L/min
	Airway Pressure (O₂)	0.32 ~ 0.6 MPa
	Flow Meter (O₂)	Dual tube flow meter: 0 ~ 1 L/min, 1 ~ 10 L/min
Anesthesia Breathing System	Proprietary Patent Integrated Sodium Lime CO₂ Absorption System (Can be Sterilized at High Temperature)
	Anesthesia Gas Scavenging System (Optional)
	Mild Bain circuit, suitable for open anesthesia
Vaporizer	Type & Reagents	One high-precision vaporizer (Halothane, Isoflurane, Sevoflurane)
	Type & Reagents	Halothane: 0 ~ 5 vol%; Isoflurane: 0 ~ 5 vol%; Sevoflurane: 0 ~ 8 vol%;
	Safety System	Self-lock and interlock
	Compensation	Automatic compensation for flow, temperature, and pressure
	Capacity	≥ 250 mL

Anesthesia Ventilator (Optional)
Display	High-luminance LED display
Accessories	1 set of fan
Working Principle	Pneumatically driven, electrically controlled
Monitoring Parameters	Tidal volume, respiratory frequency, I:E ratio, peak airway pressure
Breathing State	Manual, Touch Control (IPPV)
Tidal Volume	0.50~1500 mL
Respiratory frequency	2 ~ 99 bpm
I:E Ratio	5:1 ~ 1:8 (adjustable)
Synchronicity Trigger Pressure	-2 ~ 0 kPa
High Pressure Limitation	2 ~ 6 kPa
Low Pressure Limitation	0 ~ 2 kPa
