Application:

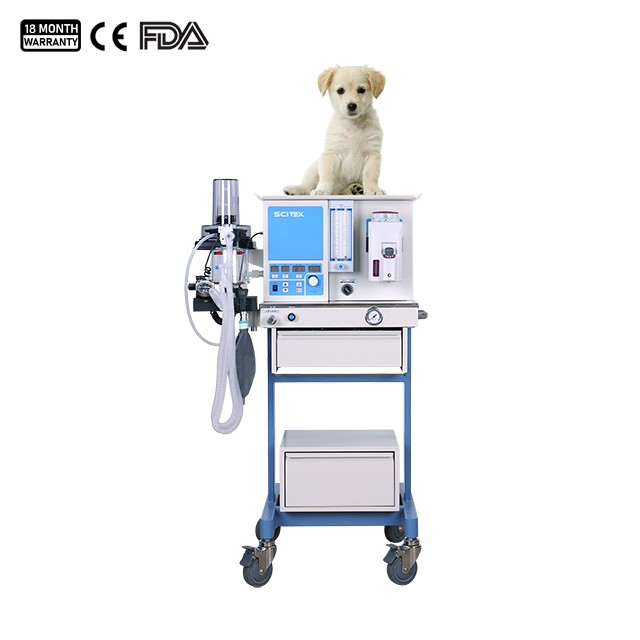

Designed to deliver safe and effective inhalation anaesthesia across a wide range of animal patients, the
Veterinary Anaesthesia Machine is a versatile and essential solution for modern veterinary practices.
It is primarily used to provide precise anaesthesia management for small, medium and large animals
weighing between 1 kg and 60 kg.
Advantage:
1. Universal anesthesia machine
2. Integrated design, compact structure, easy to move
3. Stainless steel countertops, never rust, reduce maintenance costs
4. With a proprietary direct flow anesthesia interface, designed for autonomous direct flow anesthesia in small animals
5. Standard Bain Loop and Dedicated Pet Anesthesia Mask
Specification:
Model
VAM-F60
Main unit
Working mode
For the closed system, half-closed system and half–open system
Airway pressure (O₂)
0.32~0.6 MPa
Flow Meter (O₂)
2-tube, 15~75 L/min
Integrated design, orderliness respiratory loop
Automatic compensation of flow, temperature and pressure
Vaporizer
One high precise vaporizers (Halothane, Isoflurane, Sevoflurane）
Automatic compensation of flow, temperature and pressure
Self-lock and interlock
Volume
≥250 mL
Loop
Integrated design, orderliness respiratory loop
Quick and easy replacement
Intellectual property rights
Anesthesia Gas Scavenging System (Optional)
Advanced Bain loop design, saving oxygen and anesthesia
Anesthesia Ventilator
Pneumatically driven and electrically controlled
High-luminance LED display
Working Mode
Manual control or Automatic control
Tidal Volume
0.50~1500 mL
Respiratory Frequency
2~60 bpm
I:E:
5:1~1:8 (adjustable)
Ptrig
-2~0 kPa
High Pressure Limitation
2~6 kPa
Monitoring Parameters
Tidal volume, respiratory frequency, I:E ratio, peak airway pressure
