I:E : 5:1–1:8 (adjustable) Vaporizer Volume : ≥250 mL Tidal Volume : 0.50–1500 mL Respiratory Frequency : 2–99 bpm Vaporizer Reagents : Halothane/ Isoflurane/ Sevoflurane Designed for anesthesia of small, medium, and large animals weighing 1–100 kg.

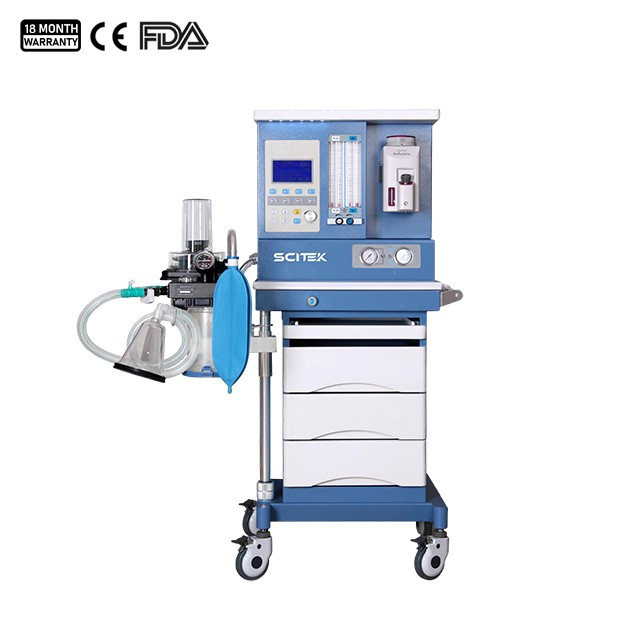

The veterinary anesthesia machine is designed for safe and efficient anesthesia administration to small, medium, and large animals weighing 1-100kg. It features a rugged metal enclosure, a highlight ceiling lighting system, and a retractable WordPad to save space. The machine includes a proprietary direct flow anesthesia interface for small animals, a standard Bain loop, and a dedicated pet anesthesia mask, ensuring versatility and ease of use during various veterinary procedures.
Veterinary Anesthesia Machine Feature:
1. Rugged metal enclosure.
2. Highlight ceiling lighting system.
3. Retractable WordPad, save space.
4. Lift arm mechanism, convenient and flexible operation.
5. With a proprietary direct flow anesthesia interface, designed for autonomous direct flow anesthesia in small animals.
6. Standard Bain Loop and Dedicated Pet Anesthesia Mask.
Veterinary Anesthesia Machine Specification:
Model
VAM-F100
Main Unit
For the closed system, half-closed system and half–open system
Alarms Parameters
Upper and lower airway pressure alarm;
Upper and lower tidal volume alarm;
Lack of oxygen alarm; Apnea; power outages
CO2 absorber
Ntegrated design, orderliness respiratory loop
Vaporizer
One high precise vaporizers (Halothane, Isoflurane, Sevoflurane）
Automatic compensation of flow, temperature and pressure
Self-lock and interlock
Volume
≥250 mL
Loop
Integrated design, orderliness respiratory loop
Quick and easy replacement
Intellectual property rights
Anesthesia Gas Scavenging System (Optional)
Advanced Bain loop design, saving oxygen and anesthesia
Anesthesia Ventialtor
Pneumatically driven and electrically controlled, high-luminance LCD display, and keys conditioning means
Monitoring Parameters
Tidal volume, the respiratory rate, I/E Ratio, the peak airway pressure, airway pressure wavefrom
Working Mode
Manual control or automatic control
Ventilation Modes
IPPV, SIGH, SIMV/f/2, SIPPV
Tidal Volume
0.50–1500 mL
Respiratory Frequency
2–99 bpm
I:E:
5:1–1:8 (adjustable)
Ptrig
-2–0 kPa
High Pressure Limitation
2–6 kPa
Low Pressure Limitation
0–2 kPa
The veterinary anesthesia machine is designed for safe and efficient anesthesia administration to small, medium, and large animals weighing 1-100kg. It features a rugged metal enclosure, a highlight ceiling lighting system, and a retractable WordPad to save space. The machine includes a proprietary direct flow anesthesia interface for small animals, a standard Bain loop, and a dedicated pet anesthesia mask, ensuring versatility and ease of use during various veterinary procedures.
Veterinary Anesthesia Machine Feature:
1. Rugged metal enclosure.
2. Highlight ceiling lighting system.
3. Retractable WordPad, save space.
4. Lift arm mechanism, convenient and flexible operation.
5. With a proprietary direct flow anesthesia interface, designed for autonomous direct flow anesthesia in small animals.
6. Standard Bain Loop and Dedicated Pet Anesthesia Mask.
Veterinary Anesthesia Machine Specification:
Model
VAM-F100
Main Unit
For the closed system, half-closed system and half–open system
Alarms Parameters
Upper and lower airway pressure alarm;
Upper and lower tidal volume alarm;
Lack of oxygen alarm; Apnea; power outages
CO2 absorber
Ntegrated design, orderliness respiratory loop
Vaporizer
One high precise vaporizers (Halothane, Isoflurane, Sevoflurane）
Automatic compensation of flow, temperature and pressure
Self-lock and interlock
Volume
≥250 mL
Loop
Integrated design, orderliness respiratory loop
Quick and easy replacement
Intellectual property rights
Anesthesia Gas Scavenging System (Optional)
Advanced Bain loop design, saving oxygen and anesthesia
Anesthesia Ventialtor
Pneumatically driven and electrically controlled, high-luminance LCD display, and keys conditioning means
Monitoring Parameters
Tidal volume, the respiratory rate, I/E Ratio, the peak airway pressure, airway pressure wavefrom
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
