Vertical Forced Air Drying Oven Features:
Intuitive and easy-to-use microprocessor controller provides excellent temperature uniformity and stability, keeping samples at the desired conditions
Wide temperature range: RT+10~300°C with automatic over-temperature alarms
Corrosion-resistant stainless steel interior and exterior provide a clean, professional look for your lab while avoiding fingerprints
Flexible shelving system with different positions to optimise chamber space
Large, easy-to-read fluorescent display
Excellent footprint/volume ratio reduces required bench space
Forced Air Drying Oven Specifications:
| Model | FDO-85A | FDO-85 | FDO-625 |
| Capacity(L) | 85 | 85 | 625 |
| Circulation Mode | Forced convection |
| Size(WxDxH) | Internal (mm) | 450x420x450 | 450x420x450 | 760x660x1250 |
| External (mm) | 590x610x830 | 590x610x830 | 974x895x1677 |
| Temperature | Range | RT+10~300℃ |
| Fluctuation | ±1℃ |
| Resolution | 0.1℃ |
| Uniformity | ±2.5% |
| Sensor | PT100 |
| Controller | PID |
| Display | LED | LCD |
| Timer | 0~9999min (with timing wait function) |
| Material | Internal | Mirror Stainless Steel |
| External | Cold rolled steel electrostatic spraying exterior |
| Shelves(Standard / Max) | 2/8 | 2/8 | 2/11 |
| Test Hole (Optional) | Φ35mm top with function of test hole | Top double exhaust |
| Safety Device | Over temperature visible & audible alarm |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | AC 380/220V, 50/60Hz |
| Consumption (W) | 2000 | 2000 | 5000 |
| N.W./G.W. (kg) | 50/56 | 50/56 | 150/190 |
| Shipping Size (WxDxH)(mm) | 680x685x1000 | 680x685x1000 | 1061x1000x1885 |

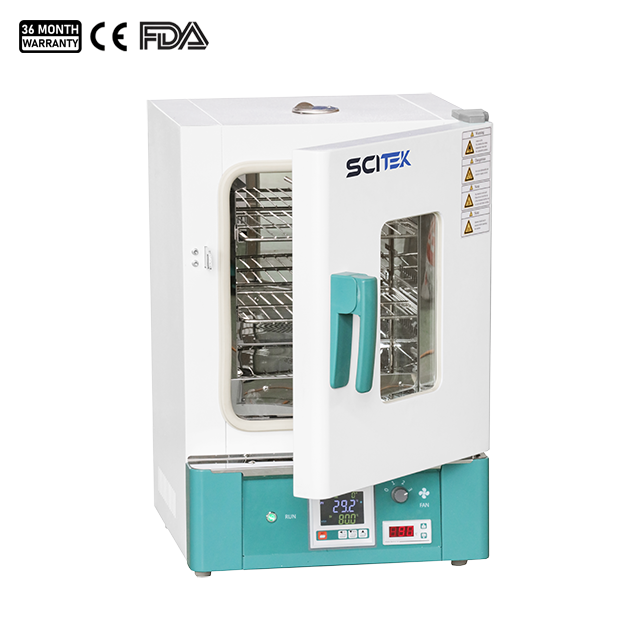

Details of Forced Air Drying Oven(FDO-85):

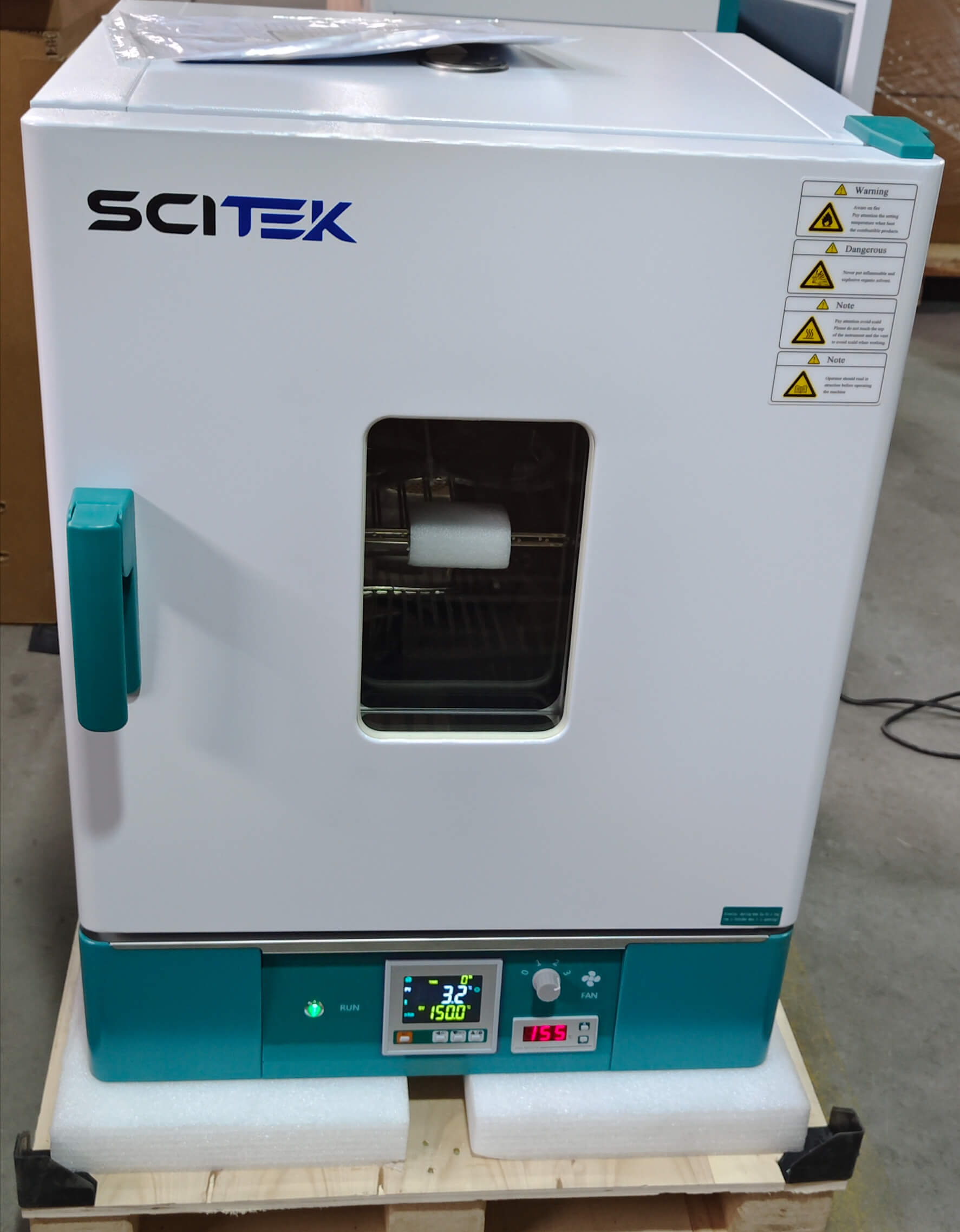

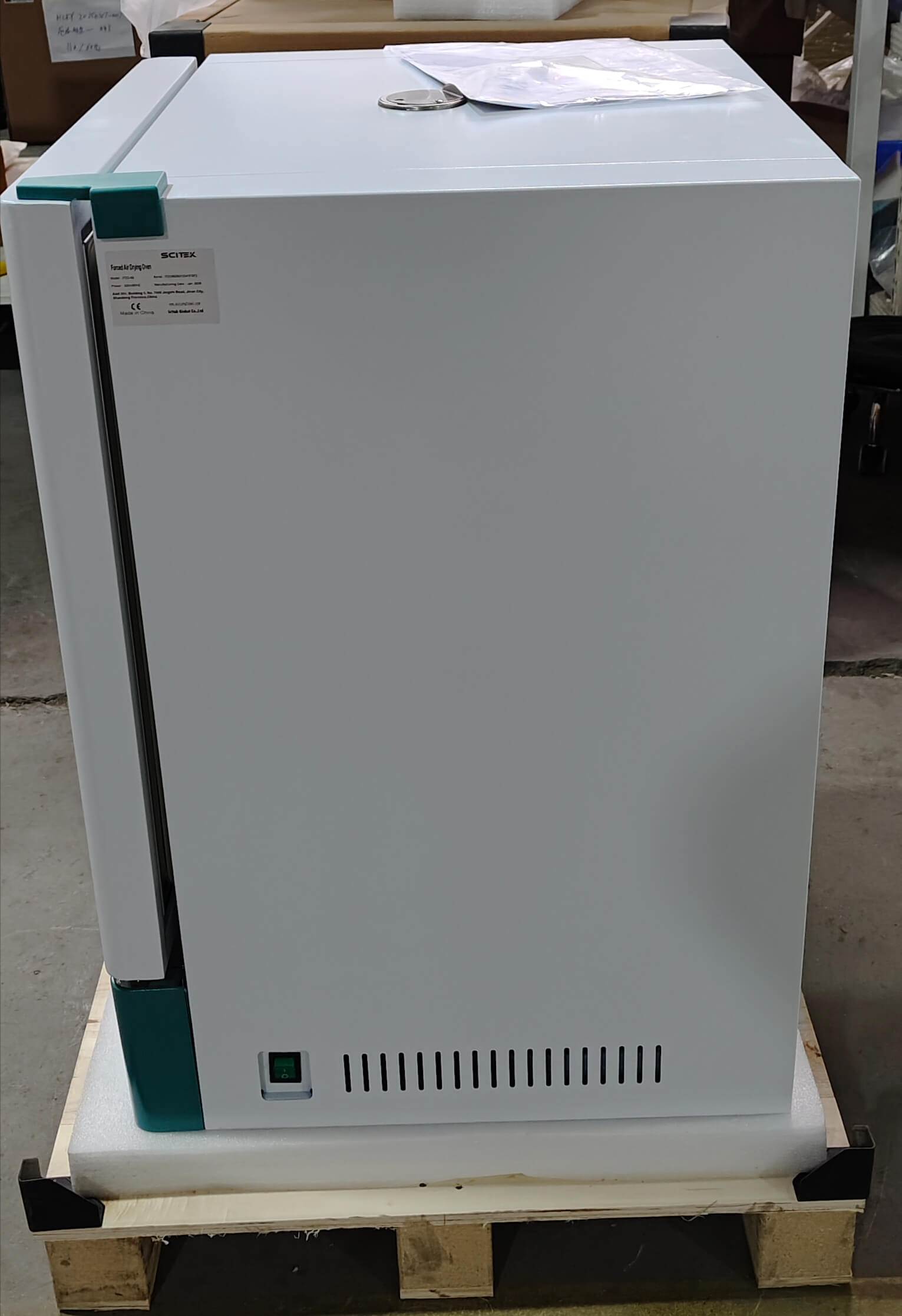

The housing is made of high temperature resistant material with a smooth surface and a modern white-green color for a simple and robust profile. The control panel is located on the front of the unit and is equipped with a temperature control display and multifunctional buttons that allow the user to easily set the drying temperature and time. Ventilation holes are located underneath the panel for air circulation and heat dissipation. The overall design is aesthetically pleasing and suitable for long term use in laboratory and industrial environments.

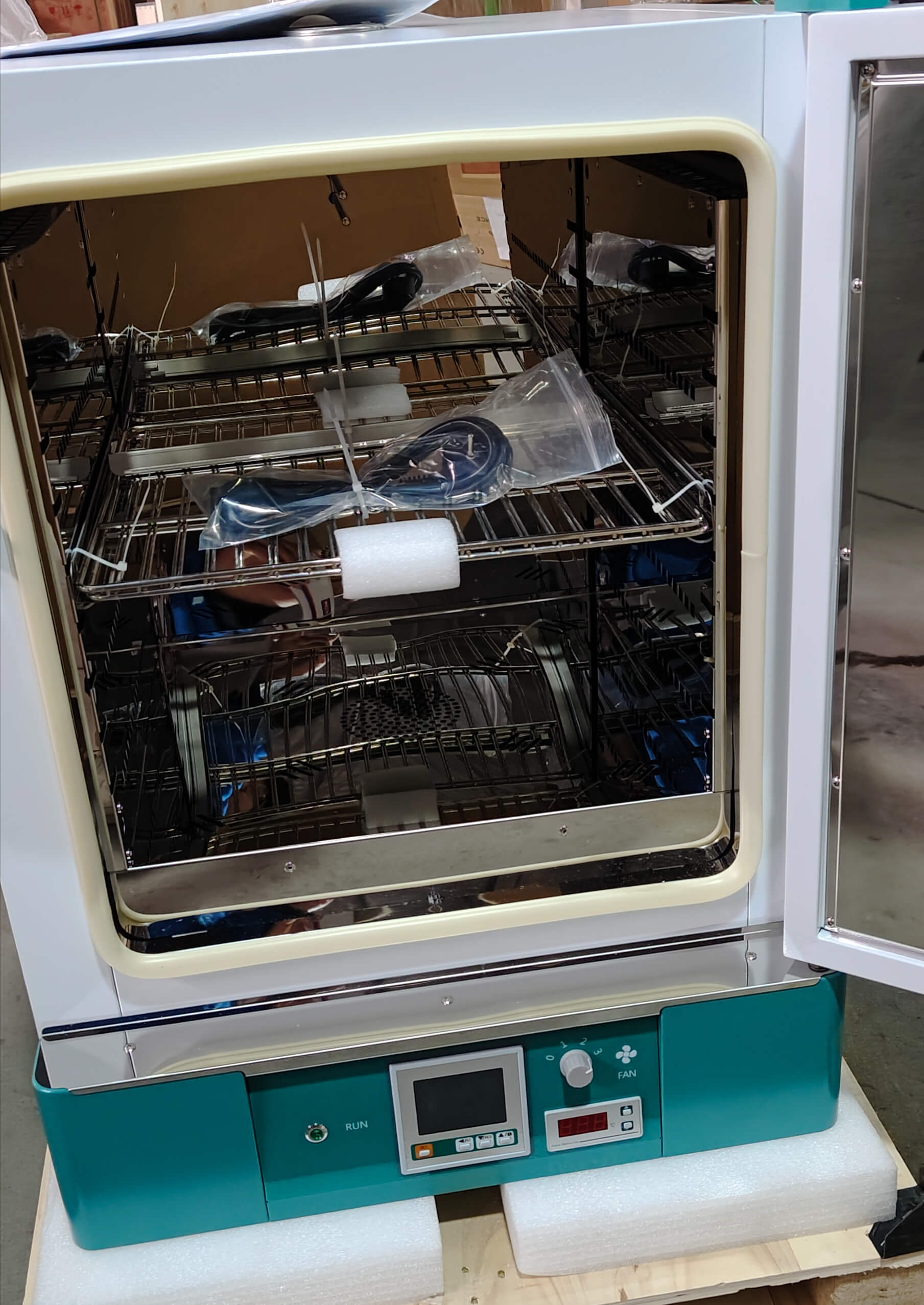

The interior is made of stainless steel, which is corrosion resistant and easy to clean. The unit is equipped with several adjustable shelves for placing samples to ensure uniform air circulation and temperature distribution. The air circulation system is located on the top and sides of the unit to ensure fast and uniform temperature distribution for efficient drying.

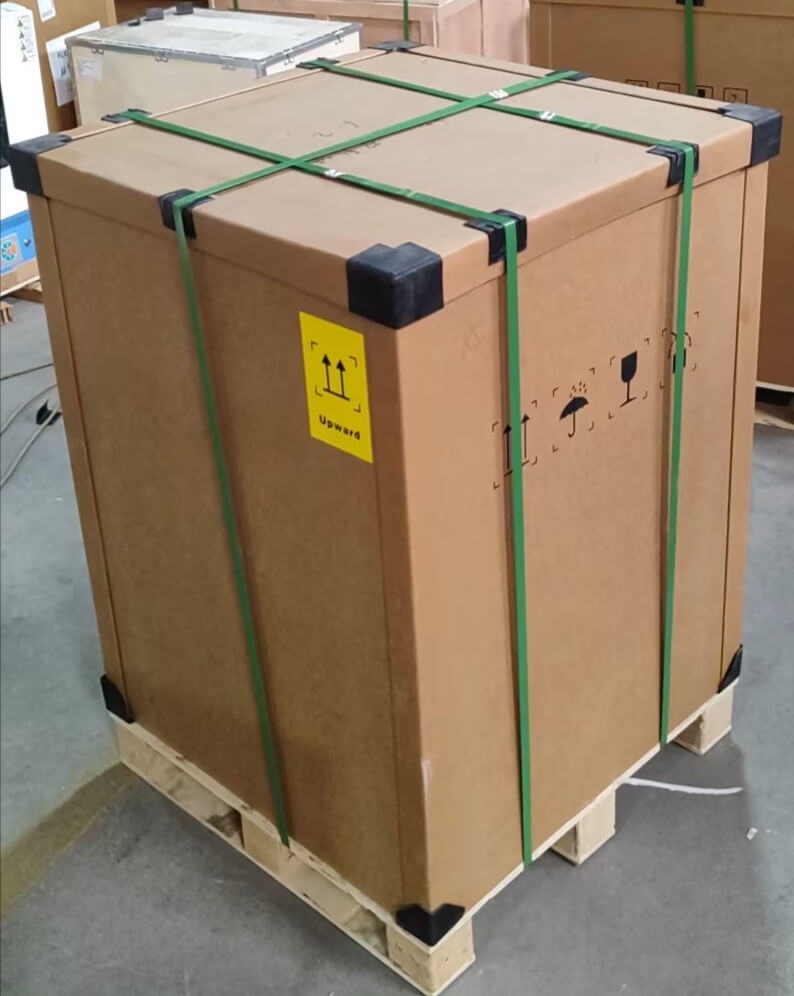

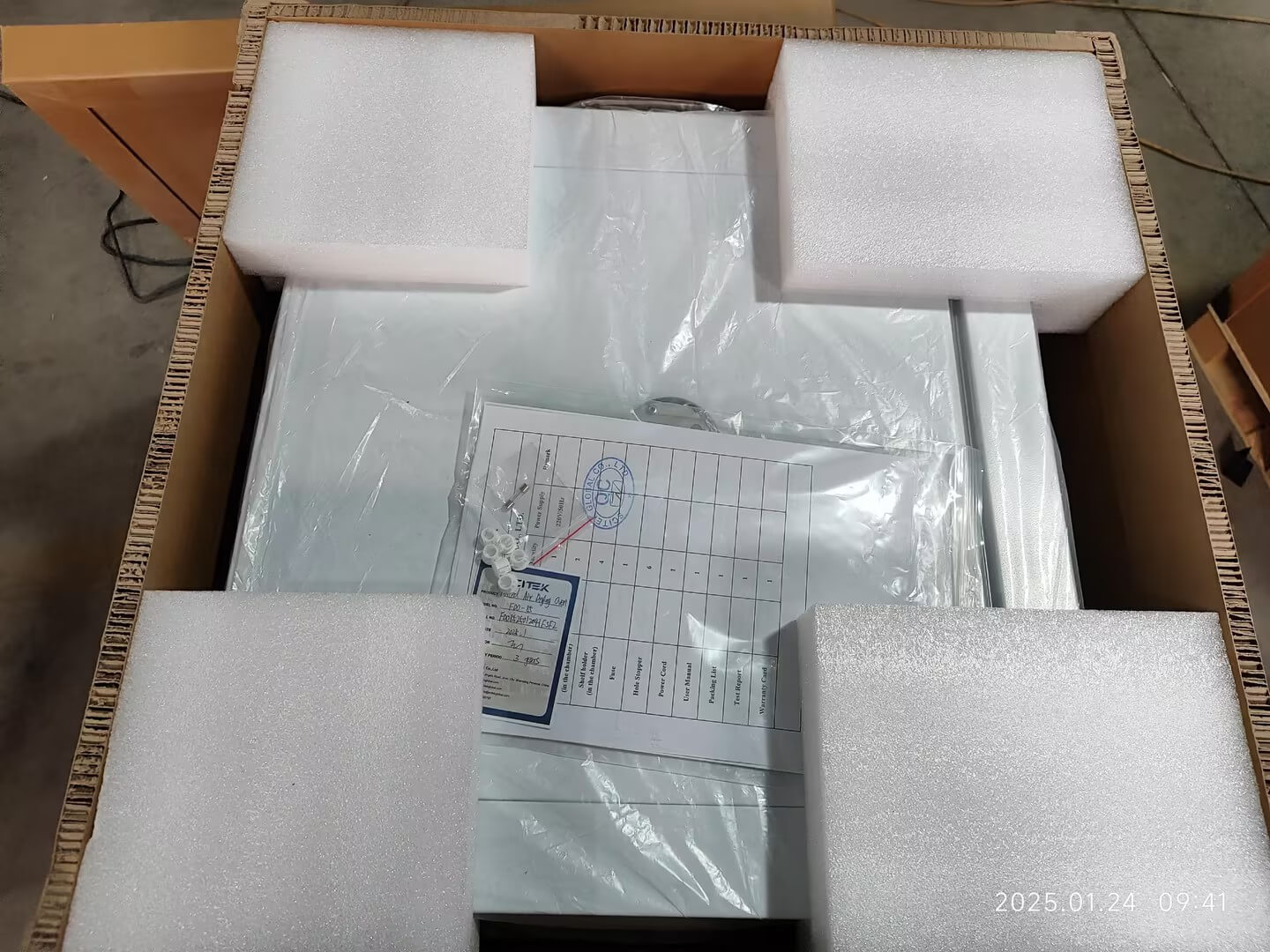

The equipment is carefully placed inside a high-strength corrugated cardboard box to ensure protection from shock and damage during transportation. The inner packaging is foam filled and the equipment is securely fastened inside the box to prevent shaking and bumping.
