Horizontal Pulse Vacuum Autoclave, Motorised Door

The ST-BVA series horizontal pulse vacuum autoclave utilizes saturated steam to achieve sterilization. Through the application of pulsating vacuum, the steam deeply permeates the surfaces of articles. The combination of high pressure and high-temperature saturated steam proves highly effective in eradicating all microorganisms and their spores, establishing itself as a potent physical sterilization method. The impact of cold air on temperature is mitigated by the pulsating vacuum exhaust, ensuring thorough sterilization through vacuum dehumidification and jacket drying processes.

Horizontal Pulse Vacuum Autoclave Features:

1. Translation door, with anti-pinch hand function. Pulse vacuum autoclave also adopts a double-door channel design, which is not only equipped with a powerful pressure safety interlock function but also a temperature safety interlock on the liquid process door to guarantee the safety of operation in all aspects.

2. The high-efficiency design of the automatic sealing ring makes its sealing effect outstanding. The pulse vacuum autoclave life is up to 1500 times, providing users with long-lasting and stable performance.

3. The main structure is european ring reinforcement jacket structure, programmable controller PLC, color touch screen.

4. Provides a wealth of customized procedures, covering aseptic clothing, utensils, rubber, liquids, media, waste, sterilization, and many other areas, but also includes BD test, vacuum leakage test, and other professional test procedures to meet the needs of different areas.

5. Automatic drainage device, optional jacket automatic control drainage device, the inner chamber are installed automatic control drainage device, automatic detection jacket and inner chamber temperature pressure automatic drainage, to ensure the saturation of steam.

6. Intelligent maintenance system: Optional remote monitoring and maintenance module; Water saving noise reduction system is optional

Internal Structure

Internal Structure

Internal Structure

Pressure gauge

Pump

Horizontal Pulse Vacuum Autoclave Specifications:

Application of Horizontal Pulse Vacuum Autoclave:

This horizontal pulse vacuum autoclaves is well-suited for various applications, including pharmaceutical and biological engineering, medical health, laboratory animals, among others. It is particularly effective in sterilizing a range of items such as utensils, aseptic clothing, rubber plugs, aluminum caps, raw materials, filters, media, and more.

Details of Horizontal Pulse Vacuum Autoclave(ST-BVA2000PV):

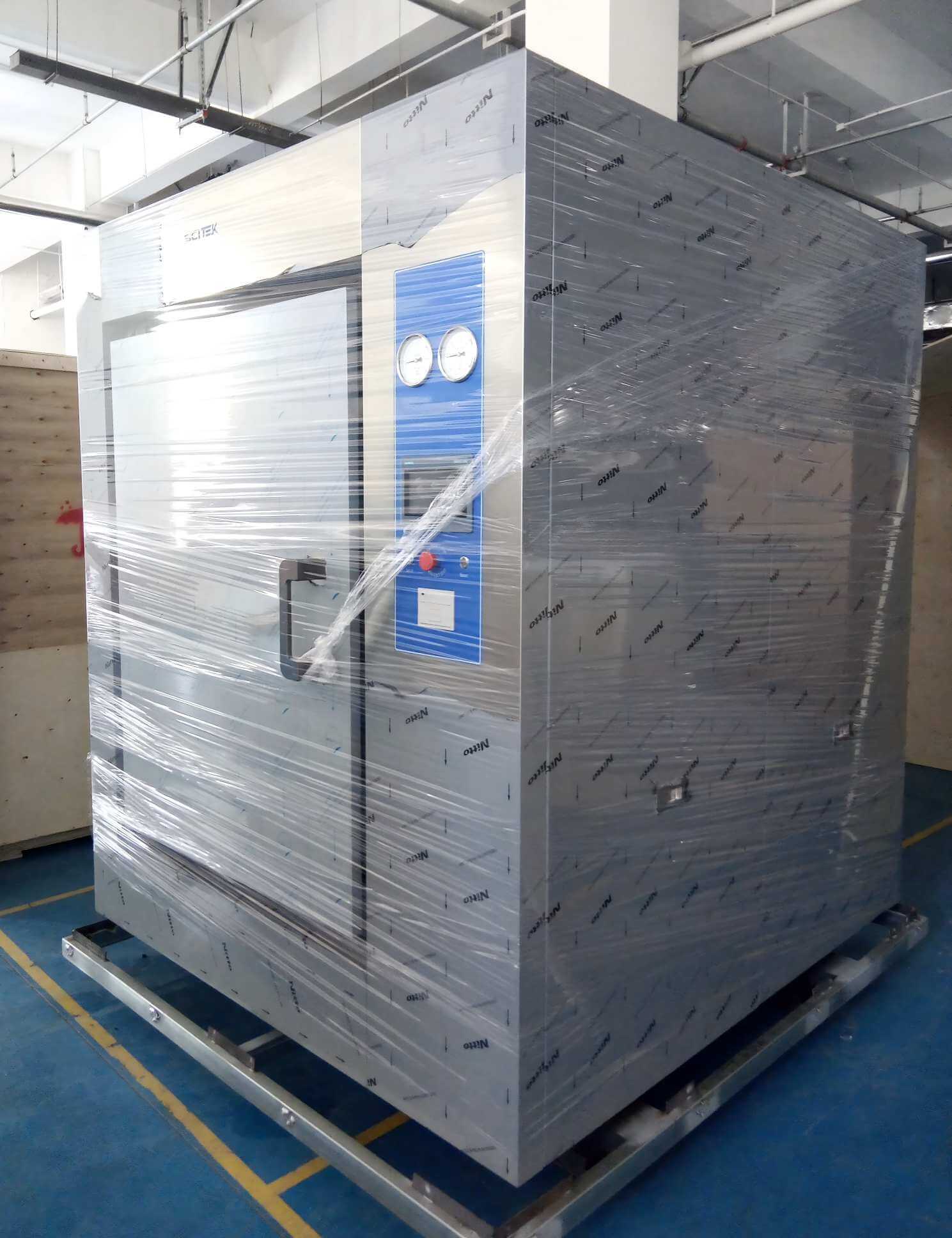

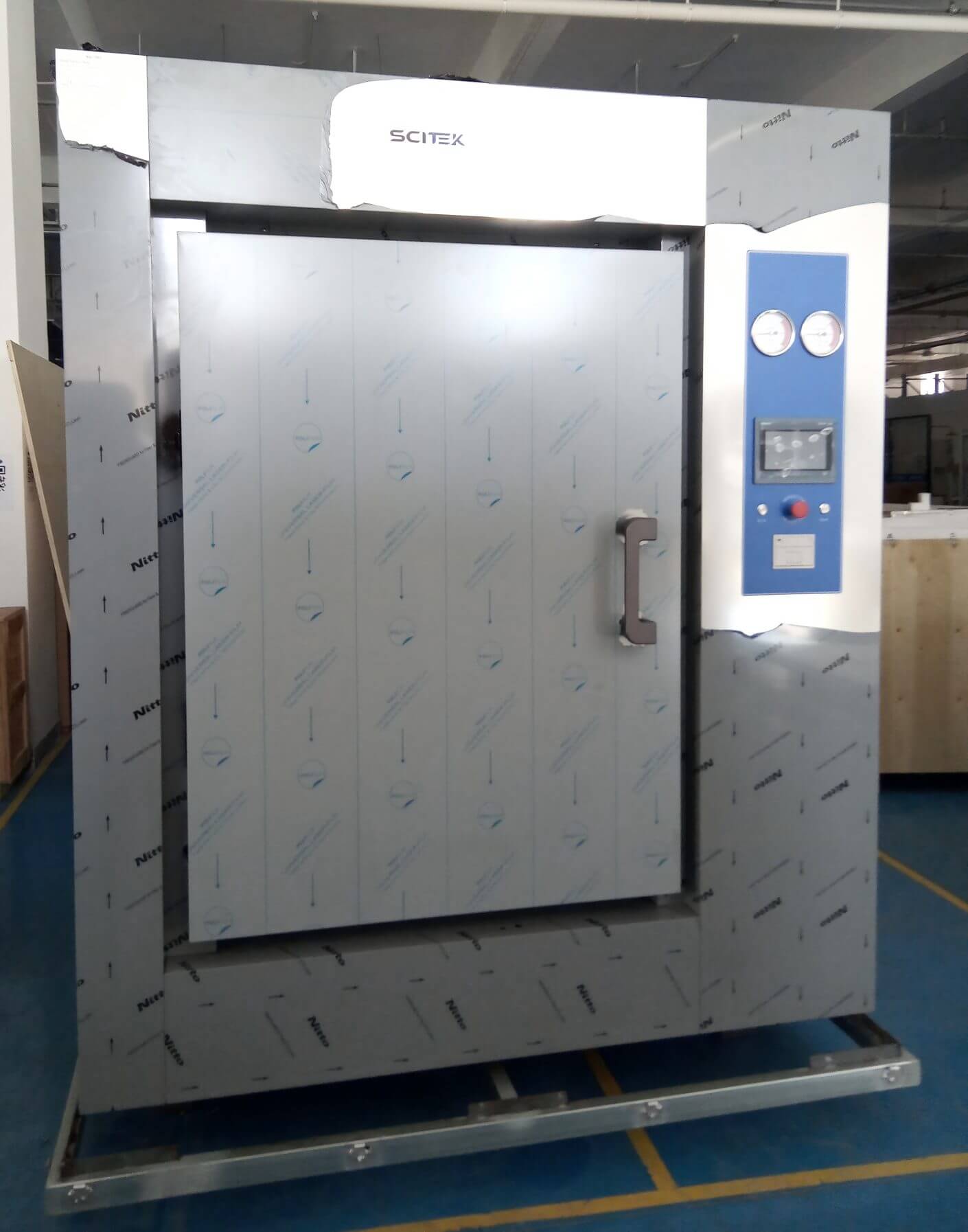

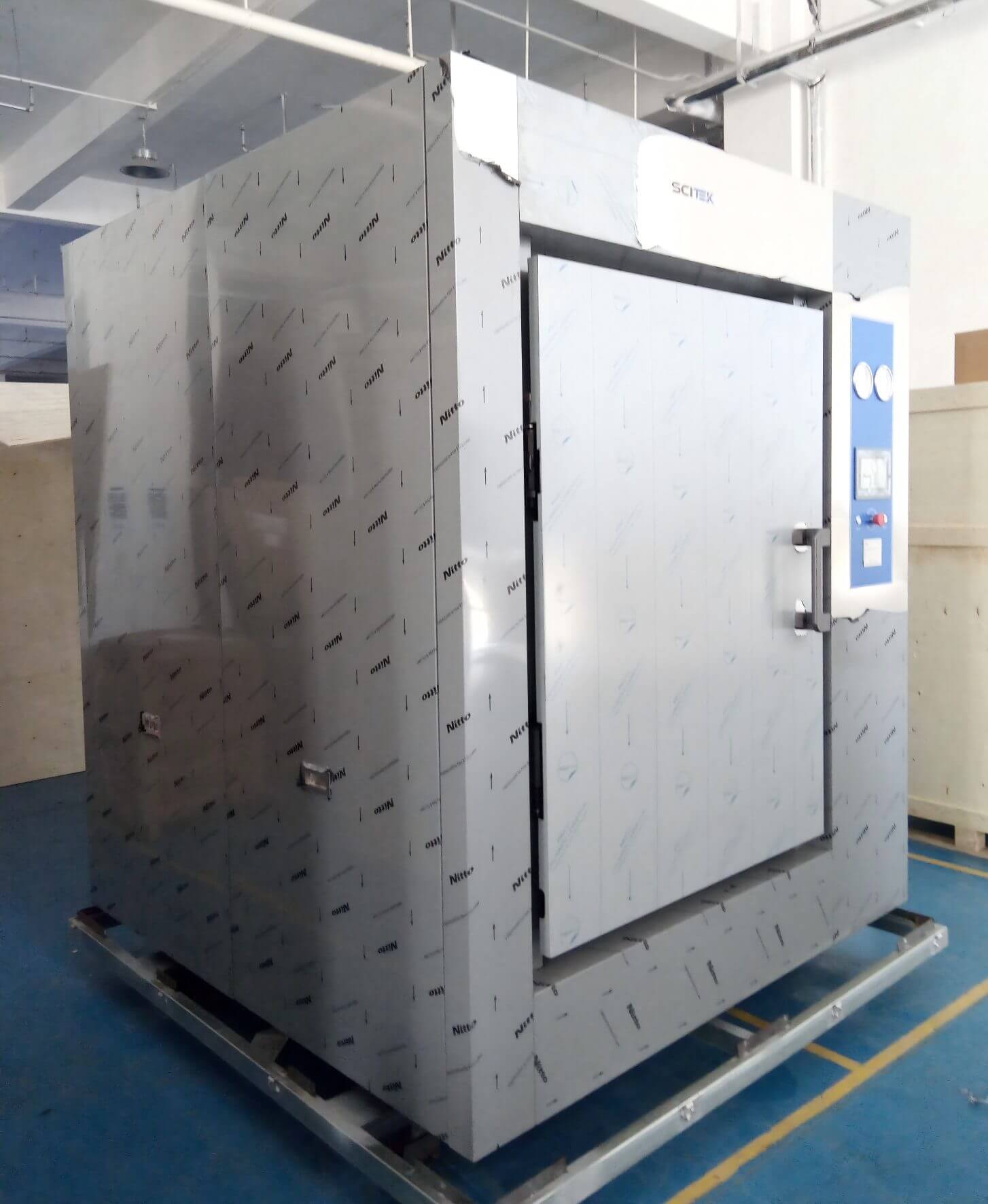

Clear view of the horizontal chamber, control panel, and overall stainless-steel construction.

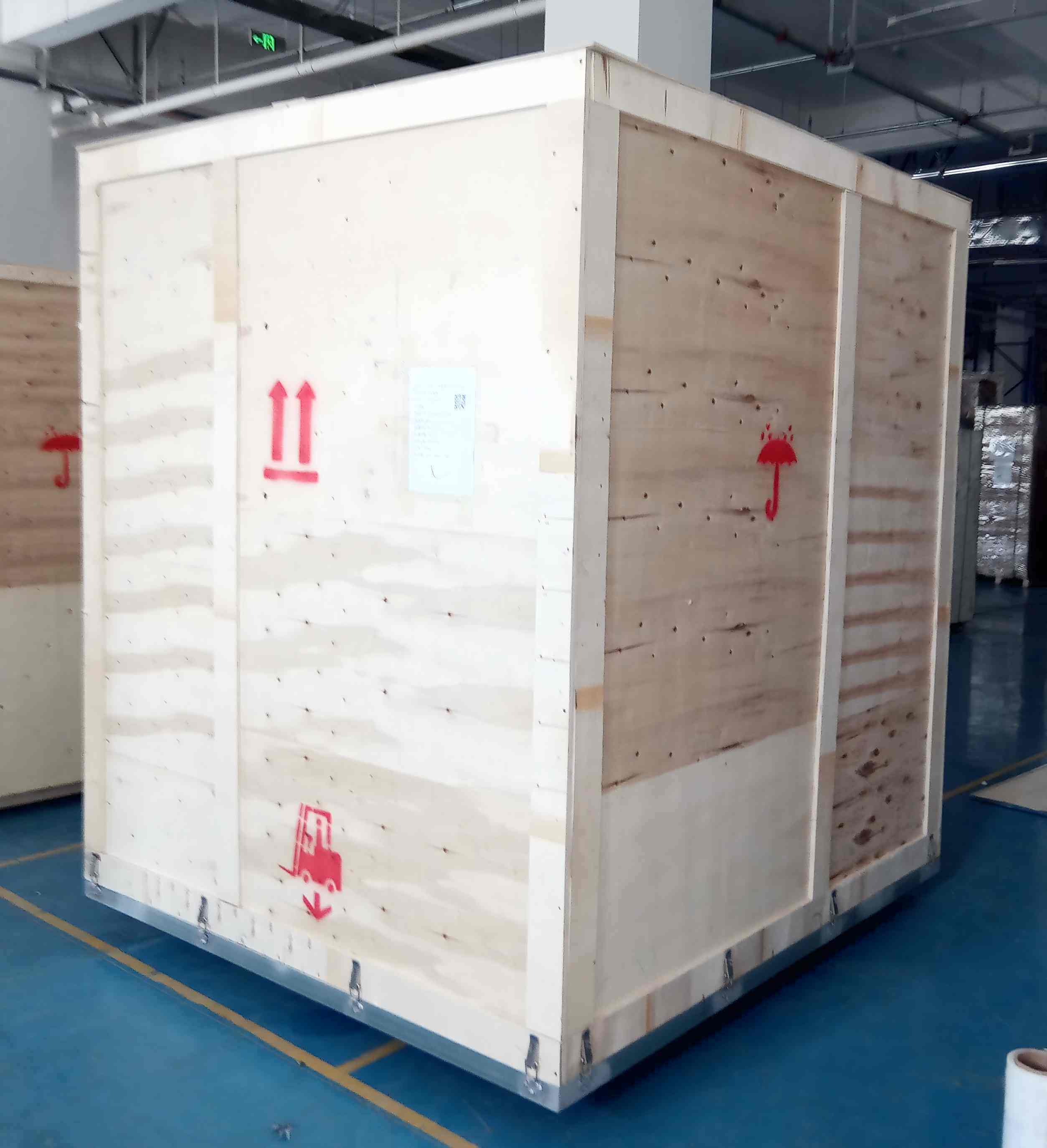

Securely packed in a sturdy export wooden crate to ensure safe handling and reliable protection during transportation.Robust protective packaging designed to minimize damage risks during loading, shipping, and delivery.
