Display : 10" inch touch screen Printing Speed : 2.5–4 seconds/cassette Printing Resolution : Up to 2500 dpi Number of Cassette Hopper Position : 4 Total Capacity : Up to 160 one-piece cassettes/Up to 400 two-piece/lidless cassettes

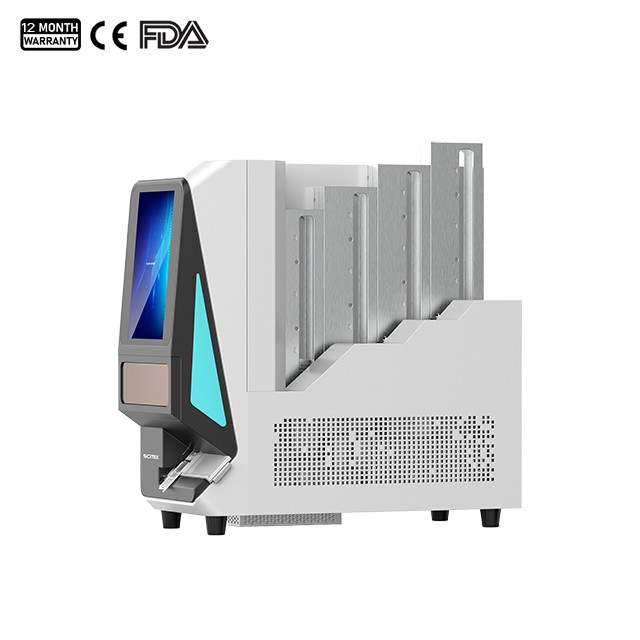

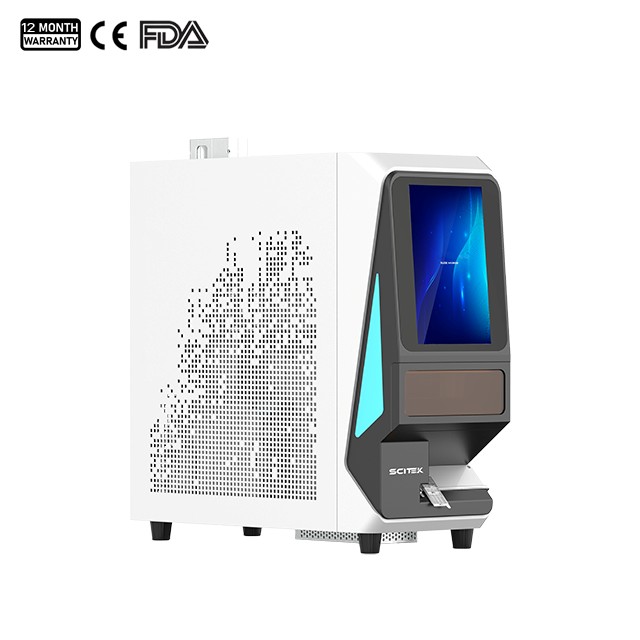

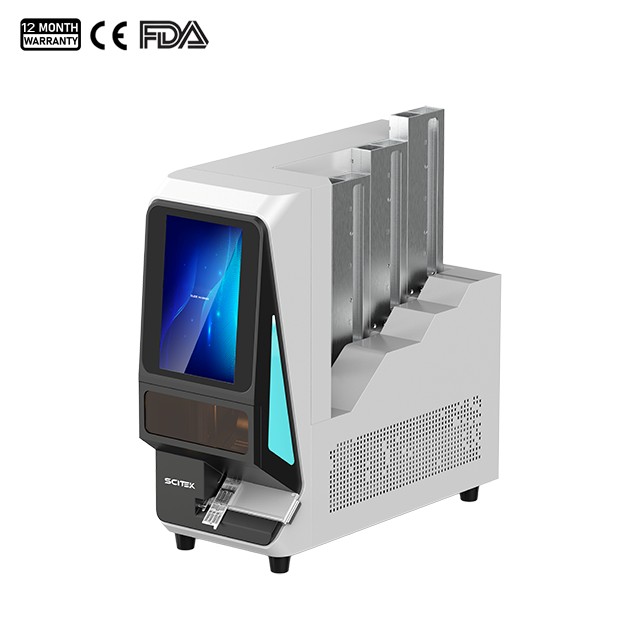

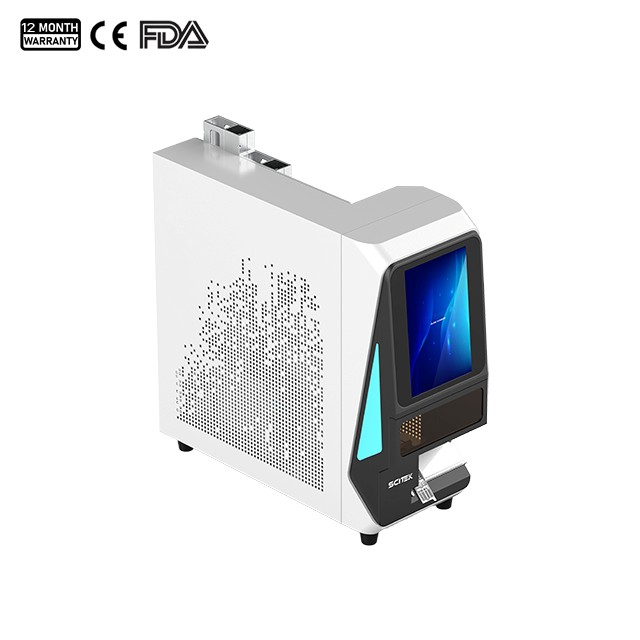

UV Laser Cassette Printer is an essential equipment for sample tracking and standardized management in modern pathology labs. It is specifically designed for high-precision, permanent identification of tissue embedding cassettes, ensuring accurate identification and secure traceability of pathology samples throughout the entire process from receipt, processing, embedding to diagnosis.

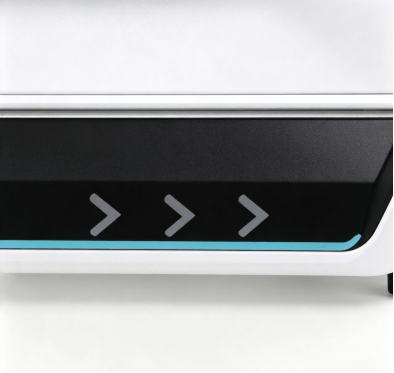

Light Bar (status indicator)

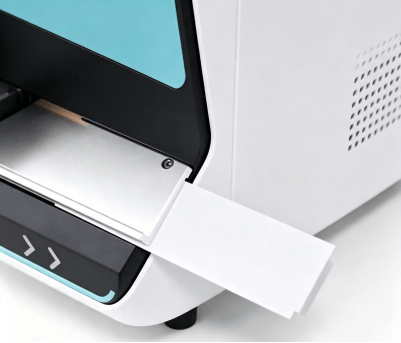

Unloading Station with Extended Collection

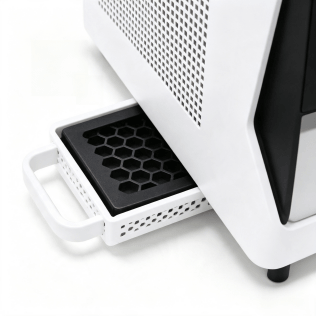

Activated Carbon Box
Built-in Barcode Reader

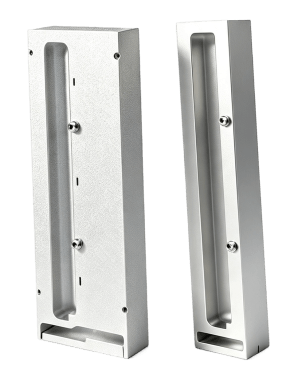

Wide/Narrow Cassette Hopper

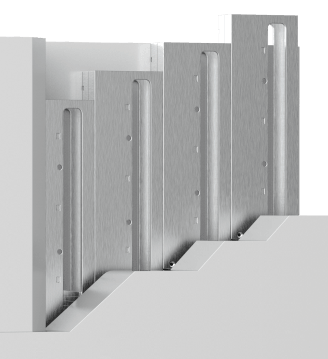

4 Cassette Hopper Positions
UV Laser Cassette Printer Feature:
10.1-inch touchscreen display, no external PC required, providing a smart and user-friendly operating experience.
High-speed automated printing, with a single embedding cassette printing time of only 2–4 seconds (adjusted according to the printing content), meeting the needs of high-throughput sample processing and improving efficiency.
High-precision QR code recognition (size ≥6 × 6 mm), meeting the needs of digital pathology.
Multi-type embedding cassette compatible design, offering high equipment adaptability.
Provides 8 independent feeding slots and high throughput loading design, with a maximum loading capacity of up to 400 cassettes, the cassette printer suitable for large pathology laboratories.
Supports simultaneous processing and printing of different types of embedding cassettes on the same device without switching devices or adjusting configurations.
Multiple information printing formats including text, numbers, symbols, Chinese characters, barcodes, and QR codes, and can achieve multi-level grayscale printing to meet the identification needs of different pathological samples.
Intelligent printing software supports batch printing and individual printing modes, and allows for flexible information editing and personalized sample information management.
A transparent observation window design allows for real-time viewing and supports rapid printing of special samples.
A horizontal guide rail-type embedding cassette collection structure saves space and optimizes daily workflows.
Cassette printer is equipped with a 1W UV laser system, providing stable and efficient laser output capabilities.
Supports connection to laboratory information systems, enabling automatic transmission and intelligent management of sample information.
UV Laser Cassette Printer Specification:
Model
MMG-4C
Display
10" inch touch screen
Printing Technology
UV Laser Direct Printing Technology
Printing Speed
2.5–4 seconds/cassette
Printing Resolution
Up to 2500 dpi
Cassette Type
One-piece cassettes with integrated lids; Two-piece cassettes with assembled lids; Lidless cassettes;
Number of Cassette HopperPosition
4
Capacity Per Hopper
Up to 40 one-piece cassettes; Up to 100 two-piece or lidless cassettes;
Total Capacity
Up to 160 one-piece cassettes; Up to 400 two-piece/lidless cassettes;
Cassette Hopper (Wide)
4 pcs
Cassette Hopper (Narrow)
4 pcs
Function
Built-in bar-code scanner; Built-in air purification system;
Power Supply
AC100–240V, 50/60 Hz
Consumption
300 W
N.W./G.W.
25.3/39kg
External Size (W×D×H)
228×575×554 mm
Shipping Size (W×D×H)
380×700×700 mm
