Display : 10" inch touch screen Printing Speed : 2.5–4 seconds/cassette Printing Resolution : Up to 2500 dpi Number of Cassette Hopper Position : 6 Total Capacity : Up to 600 cassettes

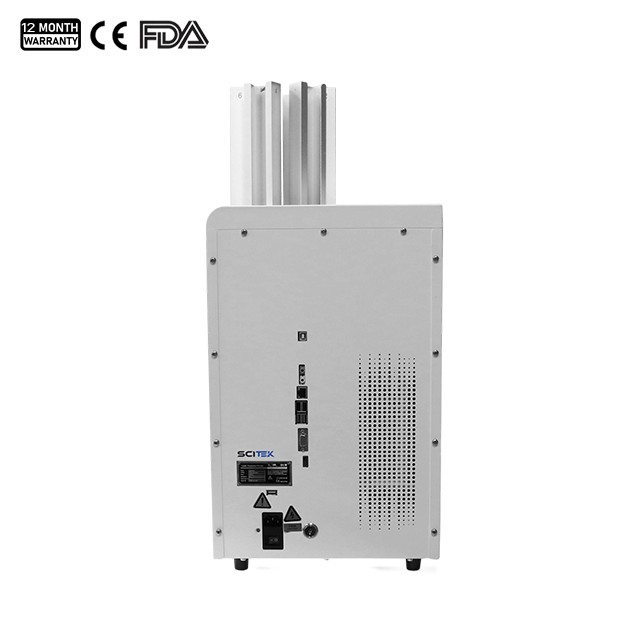

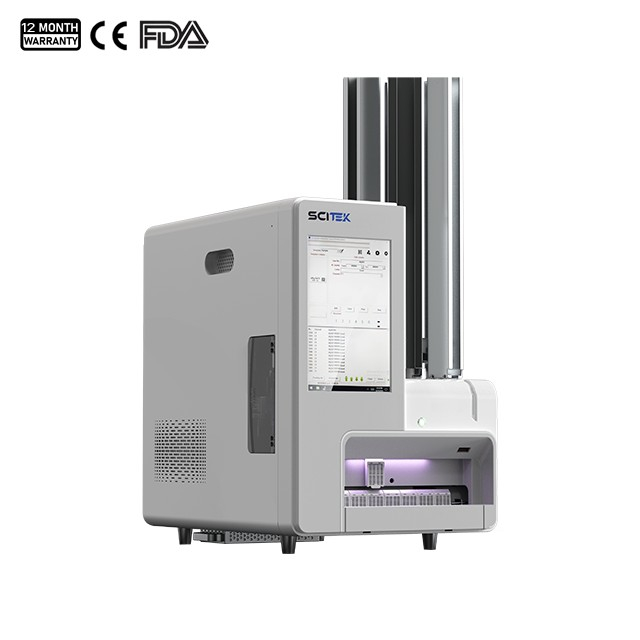

High-throughput UV Laser Cassette Printer designed specifically for histological and pathological labs with large sample volumes. MMG-6C improves the efficiency of automated laboratory operations and ensures long-term traceability management of pathological specimens. Widely used in high-throughput pathology platforms such as large hospital pathology centers, third-party independent medical laboratories, and regional pathology testing centers, meeting the needs for continuous batch labeling of large quantities of tissue embedding cassettes.
UV Laser Cassette Printer Feature:
10.1-inch touchscreen display, no external PC required, compact and lightweight.
High-speed automated printing with per cassette in 2-4 seconds, with a maximum continuous and stable printing capacity of 600 cassettes, easily handling throughput pathology specimen transfers.
6-slot rotary design can hold six embedding cassettes simultaneously, allowing for manual or automatic selection of different colors for printing.
Dual collection slot design can hold up to 240 cassettes.
Intelligent sequential output eliminates the need for manual reorganization, significantly improving pipeline efficiency.
Built-in barcode scanning module and can also be connected to external scanning devices to flexibly adapt to different applications.
Supports connection to laboratory information systems, enabling automated sample data management.

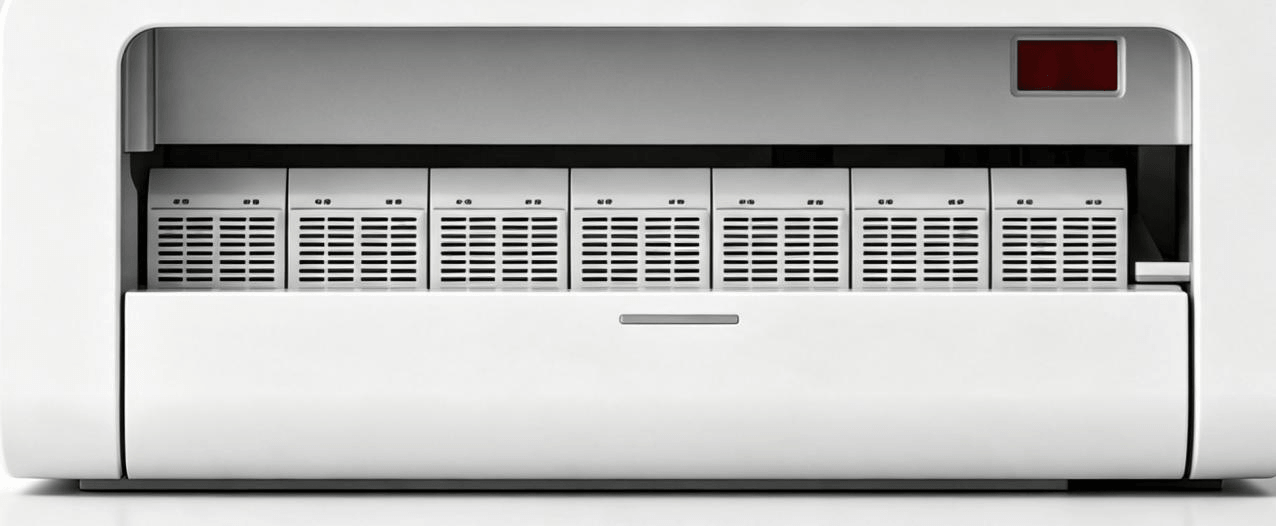

Smart Cassette Collector

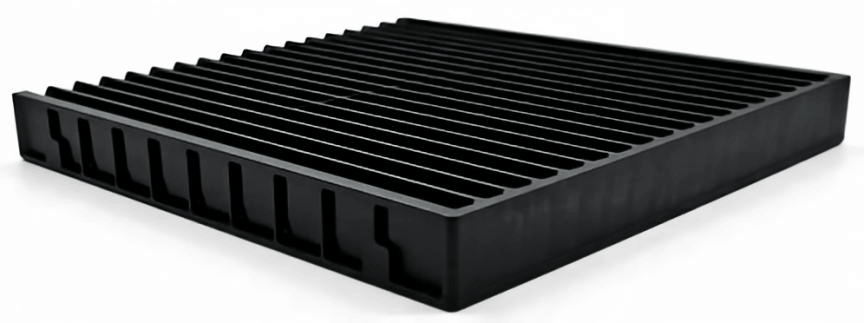

Cassette Collection Tray

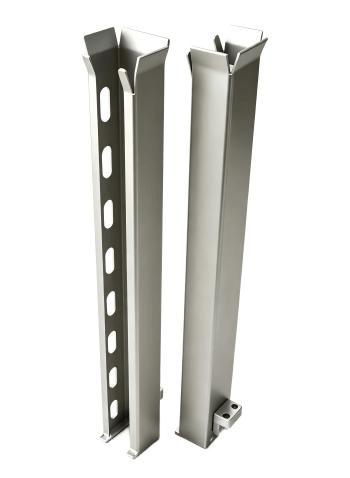

Cassette Loading Hopper
UV Laser Cassette Printer Specification:
Model
MMG-6C
Display
10" inch touch screen
Printing Technology
UV Laser Direct Printing Technology
Printing Speed
2.5–4 seconds/cassette
Printing Resolution
Up to 2500 dpi
Cassette Type
Two-piece cassettes with assembled lids;
Lidless cassettes;
Number of Cassette Hopper Position
6
Capacity Per Hopper
Up to 100 cassettes
Total Capacity
Up to 600 cassettes
Cassette Hopper (Narrow)
4 pcs
Cassette Hopper (Wide)
4 pcs
Function
Built-in bar-code scanner;
Built-in air purification system;
Automatic alarm for printing errors；
Smart indicator light for cassette;
Correct position indicator light for cassette feed slot;
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
