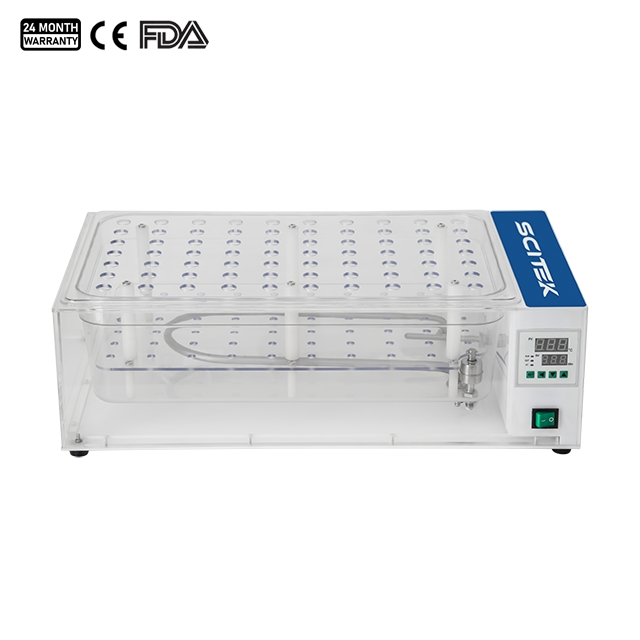

Precision Transparent Water Bath

Model : TWB-6; TWB-10; TWB-20

Temp. Control Range : RT+5～100℃
Volume : 6L/10L/20L
Sizes (W×D×H)(mm) : 400×190×190; 400×280×190; 605×340×190
Thermostatic water baths support a variety of applications and are designed to maintain temperatures between ambient and 100°C.
Availability:
Quantity:
Inquiry Add to Inquiry List

Transparent Water Bath Specifications:

Model TWB-6 TWB-10 TWB-20
Volume (L) 6L 10L 20L
Temp. Fluctuation (℃) ±0.5 ±0.5 ±0.5
Temp. Control Range (℃) RT+5～100℃
Temp. Sensitivity (℃) ≤±1
Indication Errorm (℃) ≤±2.5
Power Supply 110V, 200-240V, 50/60Hz;
Power (W) 500 800 1500
Chamber Size (W×D×H)(mm) 290×140×150 280×220×150 480×280×150
Sizes (W×D×H)(mm) 400×190×190 400×280×190 605×340×190
Shipping Size (W×D×H)(mm) 473×293×278 473×383×278 673×443×278
N.W./G.W. (kg) 3/5 3.5/5.5 5/8

Transparent Water Bath Features:

  1. Large-screen background LCD, shows the measured value, set value and the setting time and the remaining time.

  2. High-precision temperature control.

  3. Tube rack and water bath flask seat for standard configuration, with function of water bath.

Details of Transparent Water Bath:

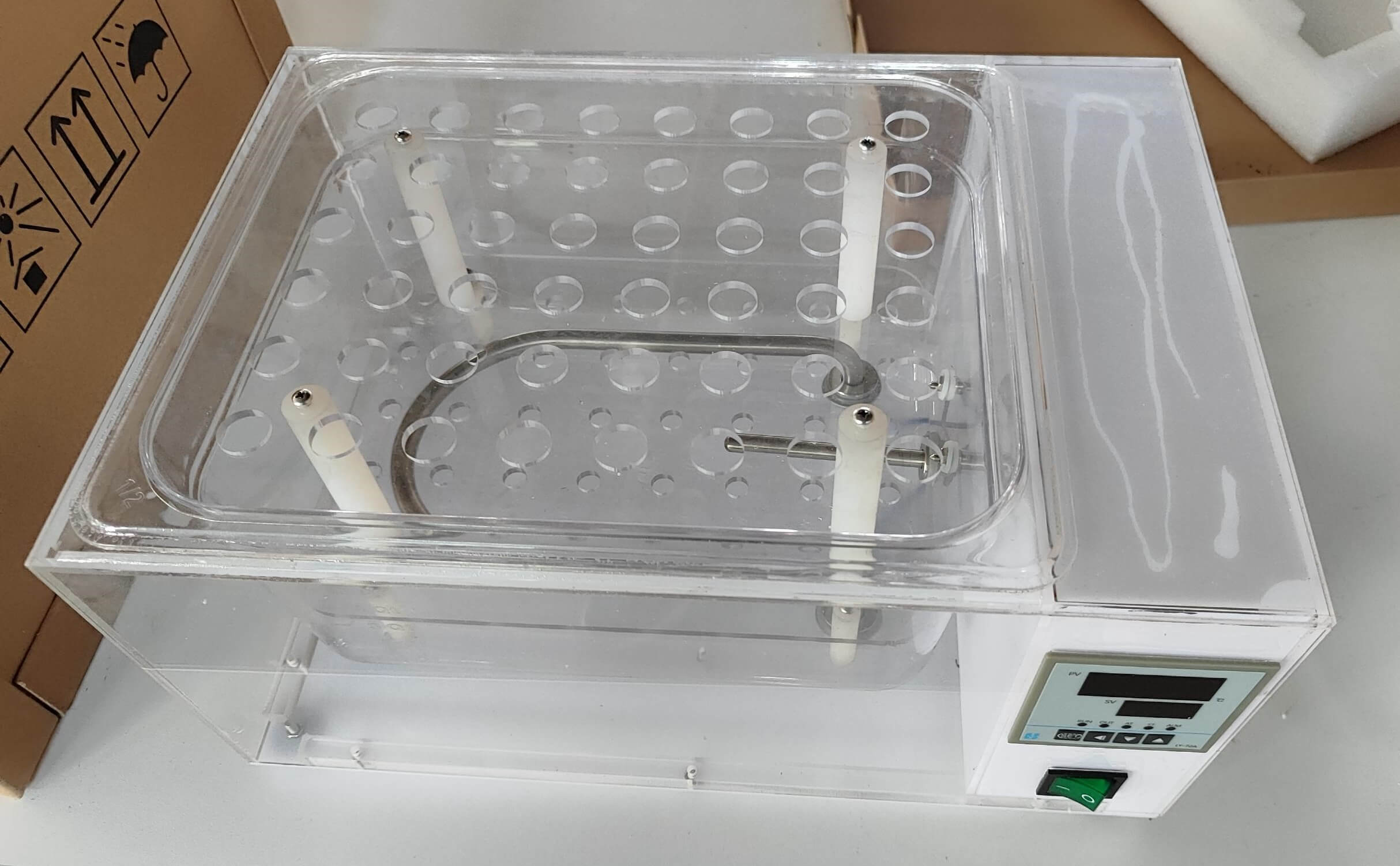

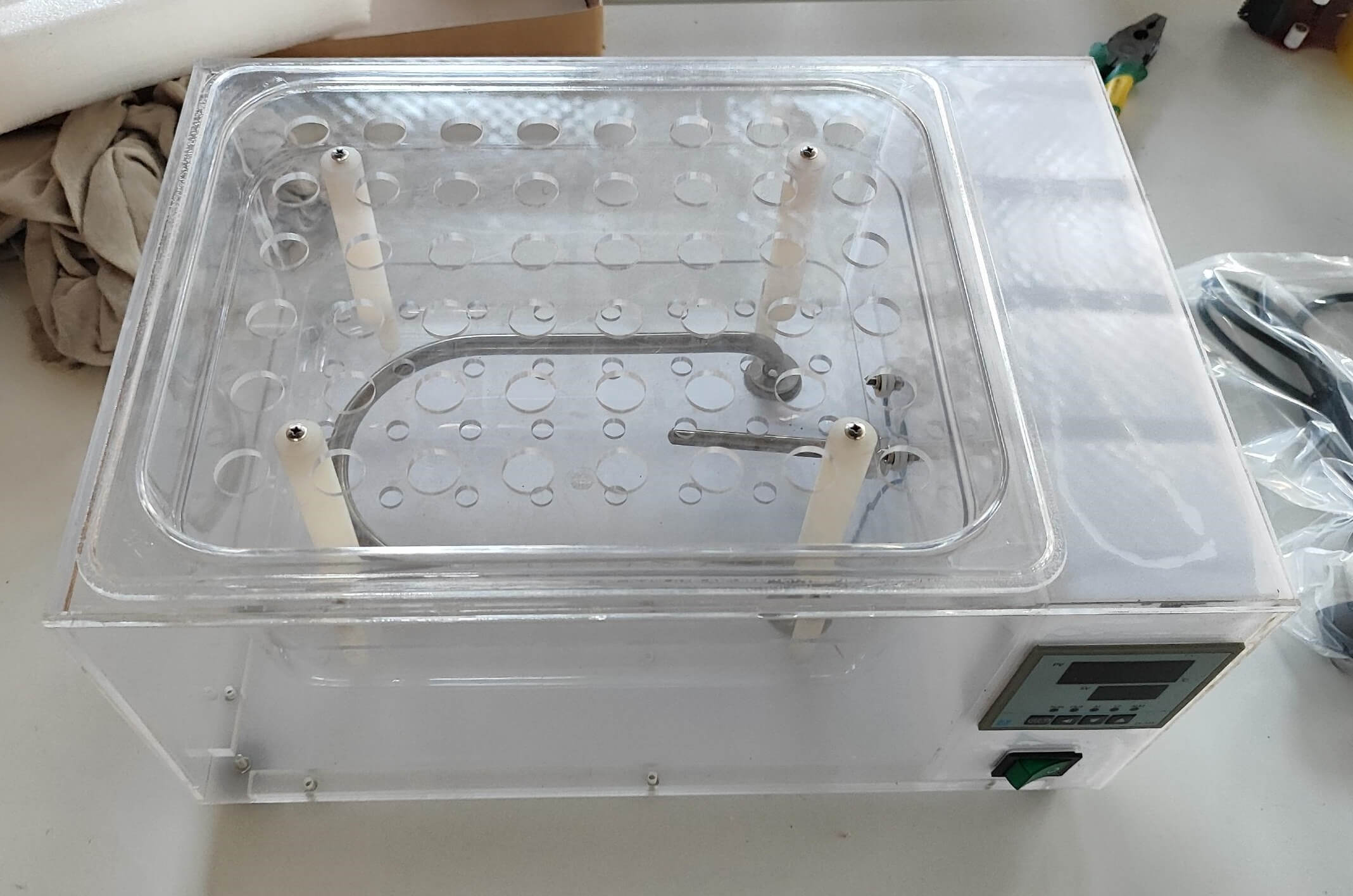

TWB-6 Transparent Water Bath:

Transparent Water Bath
The transparent design allows the operator to visually observe liquid changes in the water bath, greatly facilitating temperature control and experimental monitoring.

Transparent Water Bath

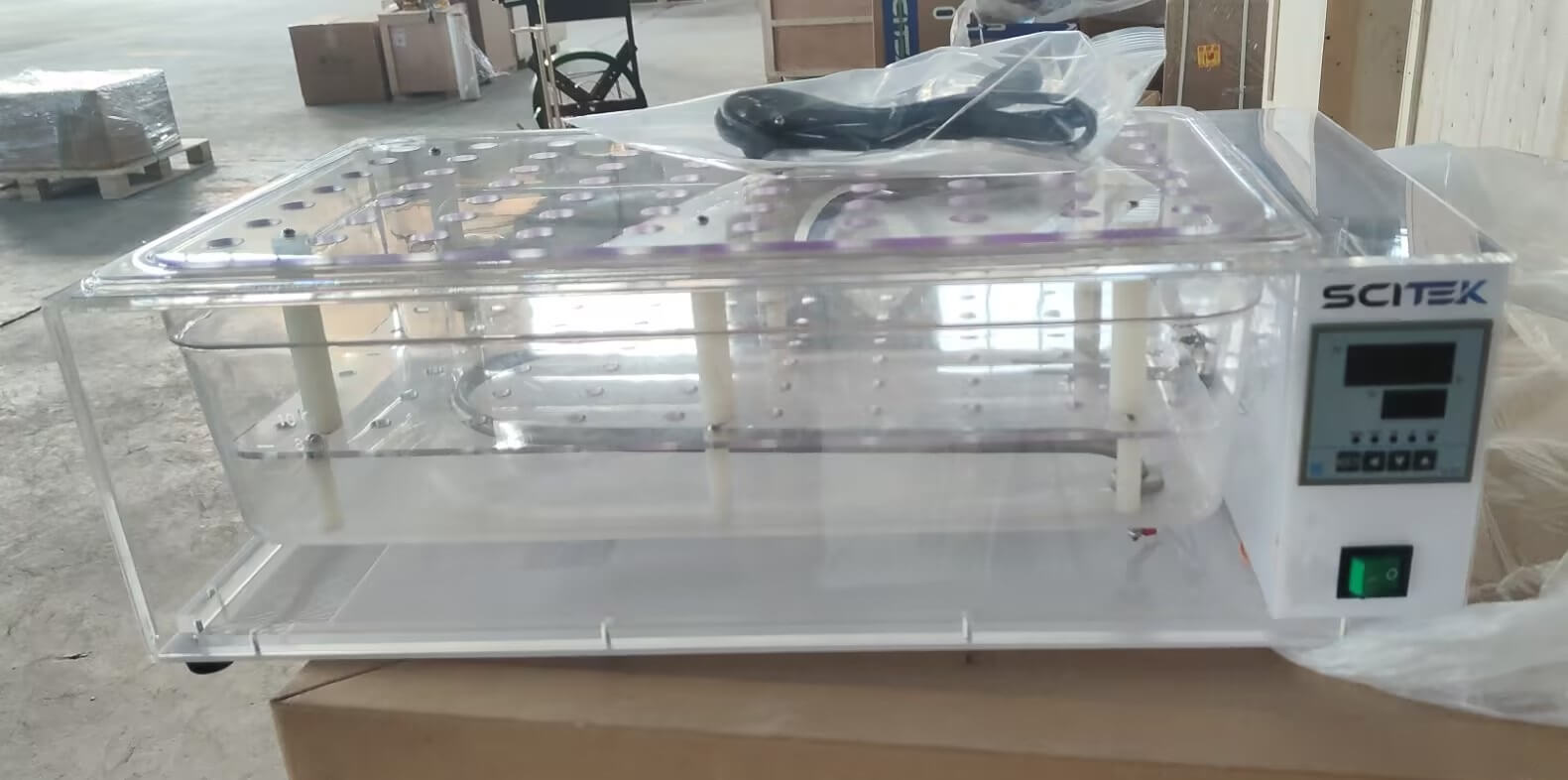

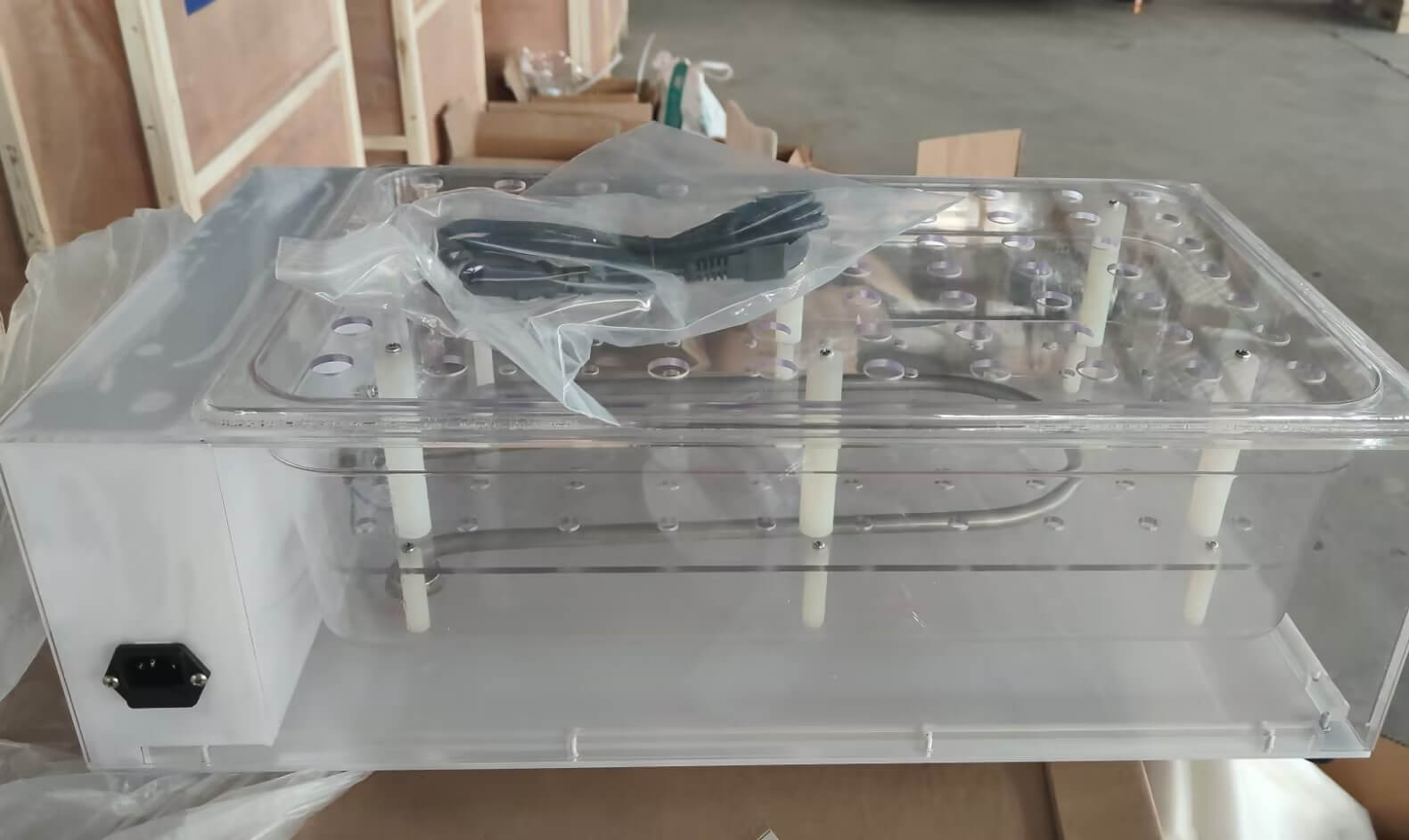

TWB-20 Transparent Water Bath:

Transparent Water Bath

The intuitive control panel and easy-to-operate temperature control knobs provide a user-friendly operating experience.

Transparent Water Bath

Adopting high-temperature resistant design, it can withstand long time use and is not easy to be damaged, suitable for laboratory and industrial environments.
