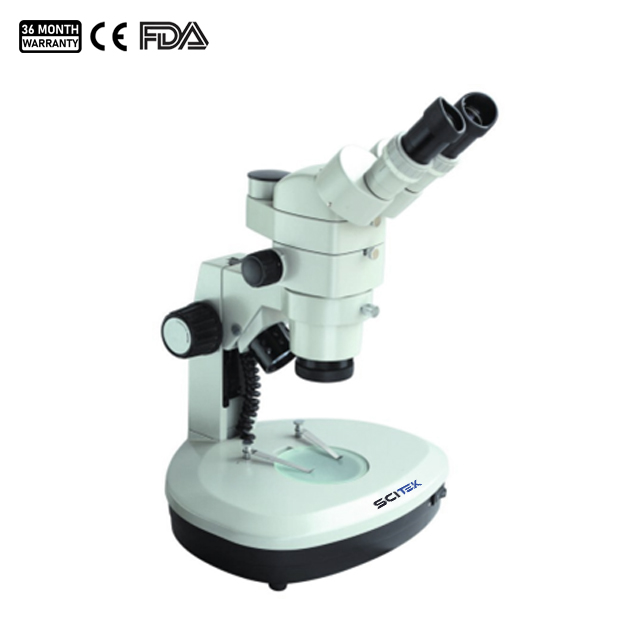

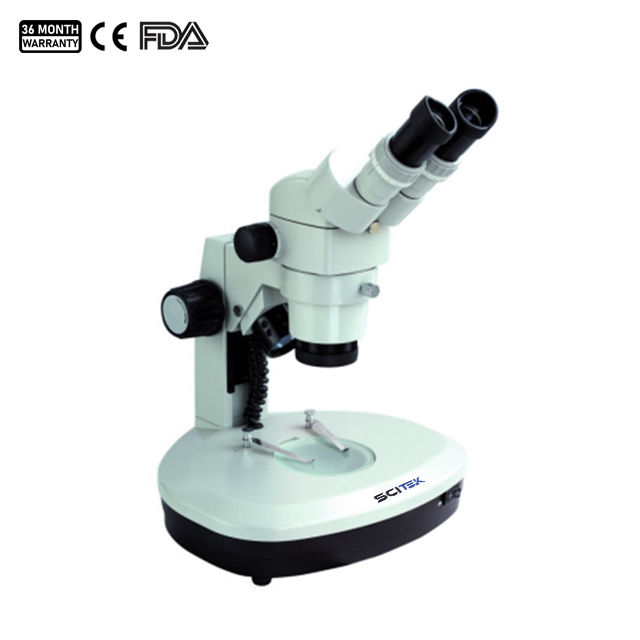

Stereoscopic Microscope MSC-ST830 Series

Model : MSC-ST830B; MSC-ST830T

Objective : 0.6X-5X stereo zoom; Zoom Ratio1:8.3
Working distance : 95mm
Focusing Mount : Focusing track mount with vertical working distance 104mm
Availability:
Quantity:

Stereoscopic Microscope Specifications:

ModelMSC-ST830B; MSC-ST830T
MagnificationZoom objective 6X-50X
EyepieceWF10X/22mm high-eyepoint, wide-field; Convenient for bservers wearing glasses
Main BodyBinocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment: ±5 diopters
Interpupillary Distance adjustment:48-75mm
Objective0.6X-5X stereo zoom; Zoom Ratio1:8.3
Working Distance95mm
Focusing MountFocusing track mount with vertical working distance 104mm
IlluminationUpper light source: halogen lamp; Lower light source: 5W fluorescent lamp
C-MountThree vision road annex
MSC 1X C-Mount; *MSC 0.5X C-MountL; *MSC 0.3X C-Mount

Stereoscopic Microscope Feature:

MSC-ST830 series high performance continuous haploid visual microscope with doubling ratio of 1:8.3. The whole machine adopts modular structure, can easily access to photography, camera, coaxial lighting and other functions in the optical road, support the series of accessories, but also connect digital camera, facilitate on-site shooting. Non-coaxial image technique improves the edge clarity of the field and strong three-dimensional sense, which has good clear effect on observing bright background objects. Comfortable to use, large working platform, convenient operation and reliable performance. It can be widely used in medical and health care, agriculture and forestry geology, electronic precision.
