Display: 9" Touchscreen Min. Sample Volume: 30 mL Inlet Temp. : 30–300 ℃, Accuracy ±1℃ Evaporation: 1500–2500 mL/h Average drying time: 1.0–1.5 s (suitable for heat-sensitive samples) Air Compressor: Built-in With a minimum sample volume of 30 mL and completes the drying process in approximately 1.0 to 1.5 seconds, particularly suitable for heat-sensitive materials. Widely used in universities, research institutes, food, pharmaceutical, and chemical industries.

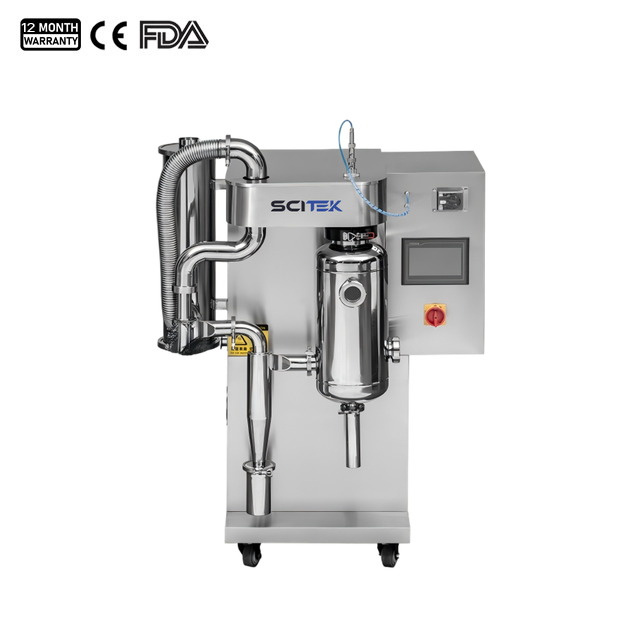

Spray Dryer operates with two-fluid atomization, offering broad applicability to various solutions, including emulsions and suspensions. With a minimum sample volume of 30 mL and completes the drying process in approximately 1.0 to 1.5 seconds, particularly suitable for heat-sensitive materials such as biological products, biopesticides, and enzyme preparations. Widely used for the preparation of micro-particles and powders in universities, research institutes, food, pharmaceutical, and chemical industries.
Spray Dryer Feature:
9" color touchscreen with real-time parameter display and intuitive operation.
Constructed entirely of SUS304 stainless steel, with compact dual-fluid atomization design, corrosion-resistant and durable
Automatic nozzle cleaner (cleaning needle) featuring adjustable frequency to clear blockages, reducing the need for manual monitoring and enhancing experimental continuity.
PID temperature control with ±1℃ precision, ensuring accurate temperature regulation, stable drying conditions, and consistent results across batches.
Peristaltic pump for sample feeding with a minimum sample volume of 30 mL, reducing consumption and costs during the R&D phase.
Over 95% of the finished dry powder falls within the same particle size range, minimizing the need for subsequent sieving and improving product quality.

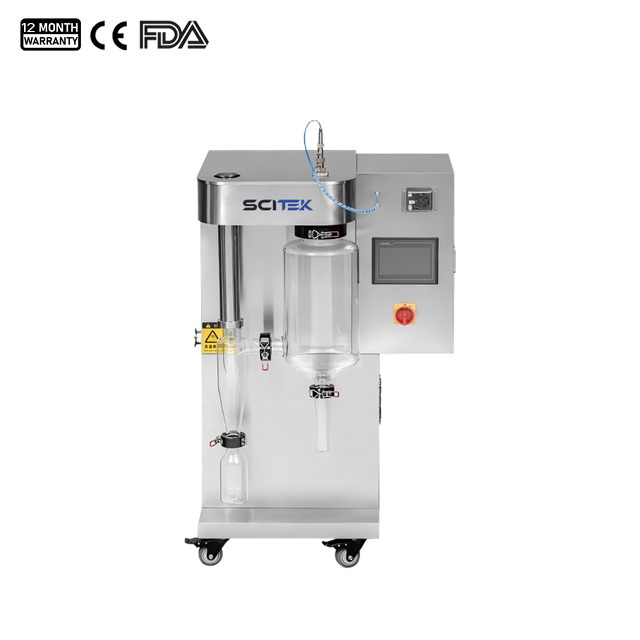

Spraying, drying, and collection systems utilize transparent, heat-resistant borosilicate glass, allowing for real-time observation of the atomization-drying process while meeting pharmaceutical-grade cleanliness standards (only for SD-3 and SD-3R).
Shutdown/Pause mode deactivates all components except the blower, protecting the equipment and reducing the risk of damage and maintenance costs.
Comes standard with a nitrogen circulation interface and supports upgrades to a nitrogen closed-loop circulation system.

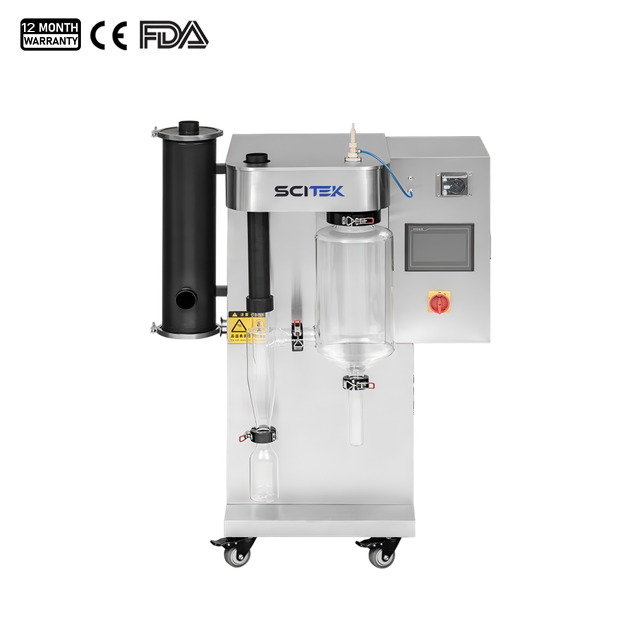

SD-3R equipped with a polyether ether ketone (PEEK) atomizer, a filter cartridge dust removal system, and an anti-corrosion coating on the exhaust system, enabling the processing of corrosive media.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
