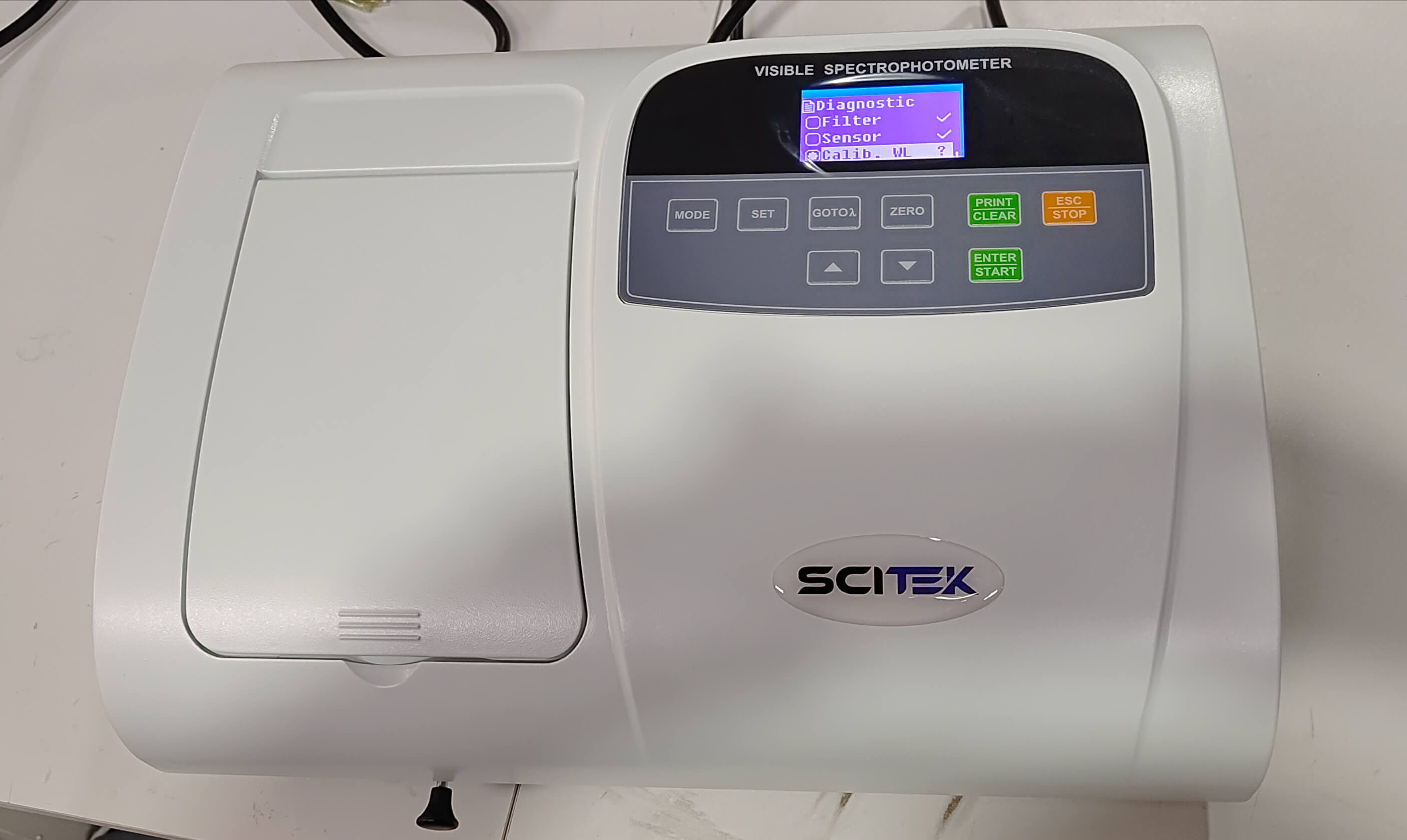

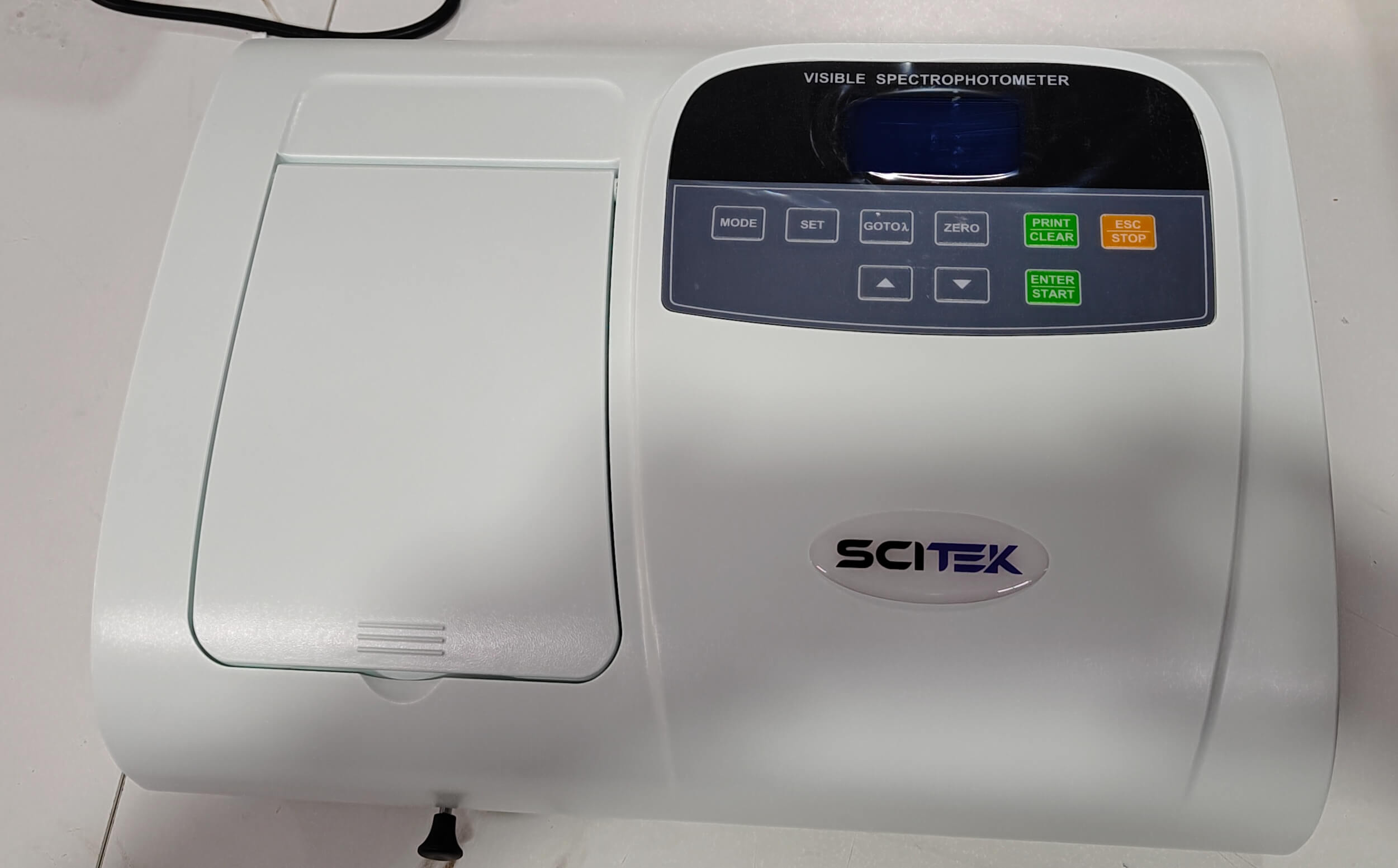

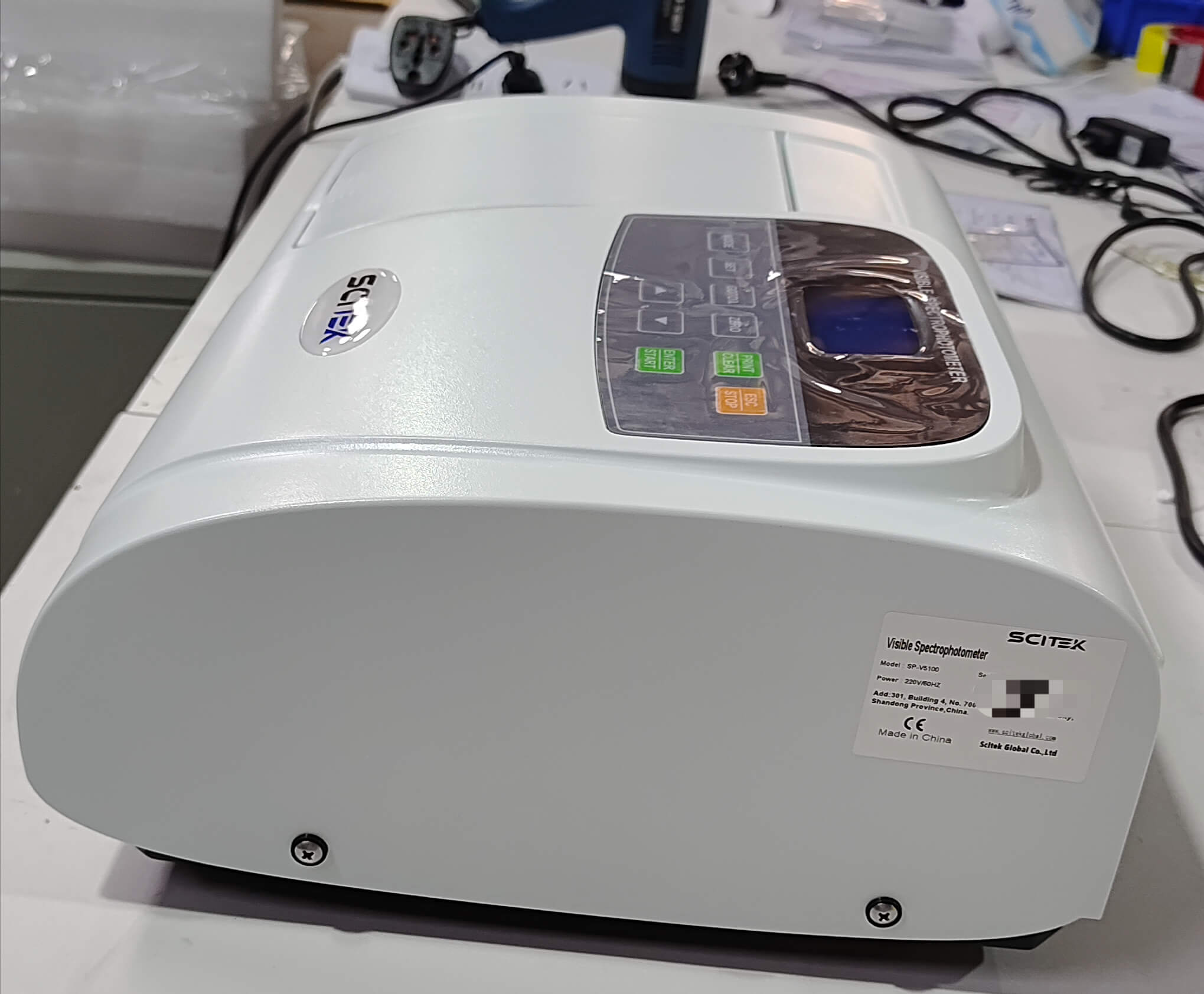

Visible Spectrophotometer, Bandwidth 2/4nm

Model : SP-V5100

Wavelength Range : 325-1000nm
Wavelength Accuracy : ±2nm
Wavelength Repeatability : 0.5nm
Output : USB Port & Parallel Port(Printer)
Size(W×D×H)(mm) : 420x280x180

Visible spectrophotometer with automatic wavelength setting, designed for ease of use.

Single Beam Visible Spectrophotometer Specifications:

Optical SystemSingle beam, Grating 1200 lines/mm
Wavelength Range325-1000nm
Bandwidth4nm(optional 2nm)
Wavelength Accuracy±2nm
Wavelength Repeatability0.5nm
Wavelength SettingAuto
Photometric Accuracy±0.5%T
Photometric Repeatability≤0.2%T
Photometric Range-0.3-3A, 0-200%T, 0-9999C
Photometric  ModeT, A, C, F
Stray Light≤0.1%T
Stability± 0.002A/h @ 500nm
Display128x64  LCD
DetectorSilicon Photodiode
Light SourceTungsten Lamp

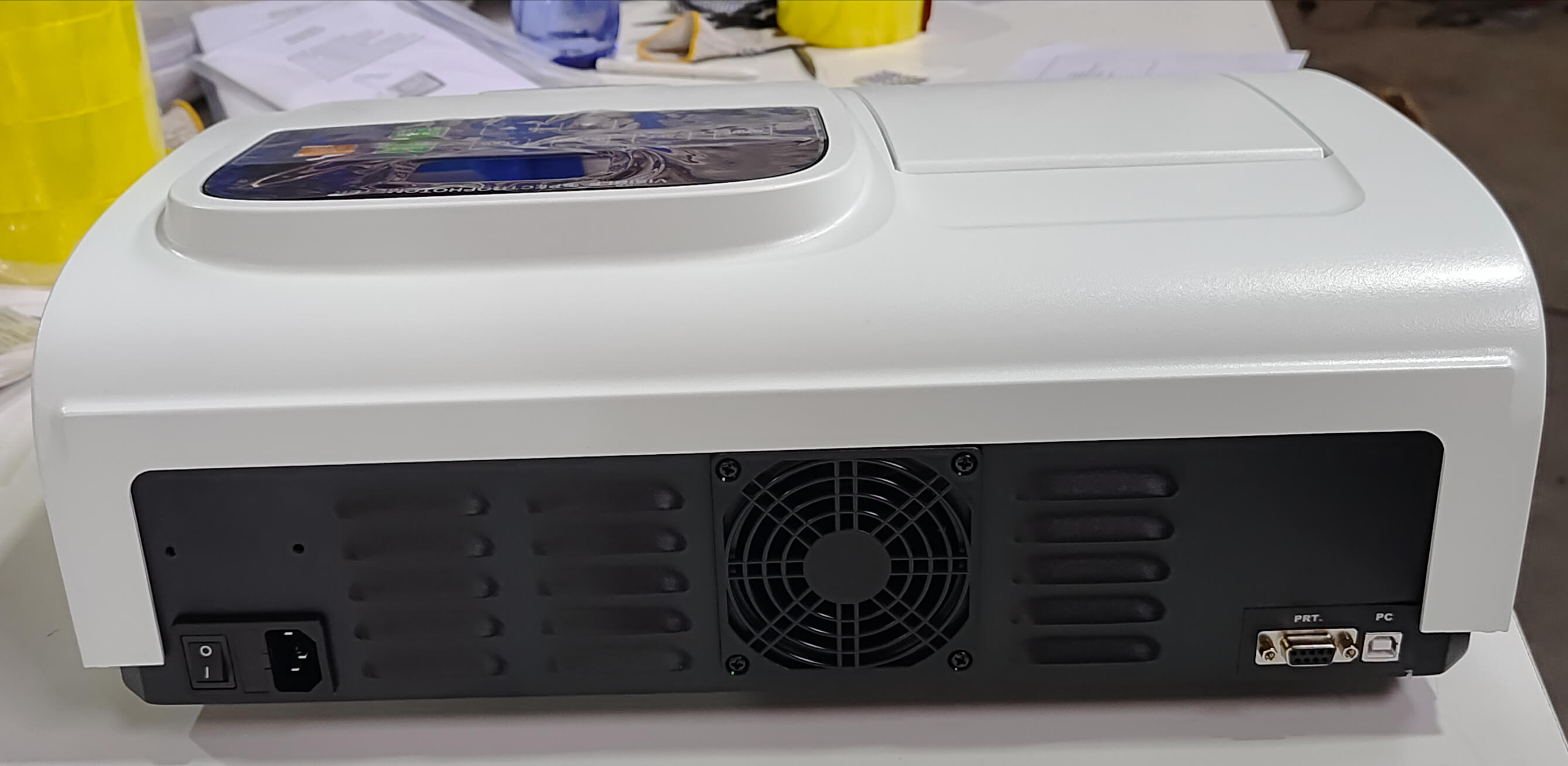

OutputUSB Port & Parallel Port (Printer)
Power RequirementsAC 85~250V
Shipping Size(W×D×H)(mm)600x460x330
N.W./G.W. (kg)10/14

Single Beam Visible Spectrophotometer Features:

  1. A 2.5 inch LCD screen is included to display standard curves and groups of results.

  2. Various standard curves can be established based on the customer's solutions to determine the concentration of unknown solutions.

  3. The device has a USB port for data output, which can be connected to a PC to display spectrum scanning, kinetics, and multi-wavelength testing results on the screen.

  4. The device can display wavelength, absorption, and transmittance with 5 results per screen and store up to 200 results in its memory.

  5. Users can set the wavelength automatically using arrow keys to avoid operation errors.
