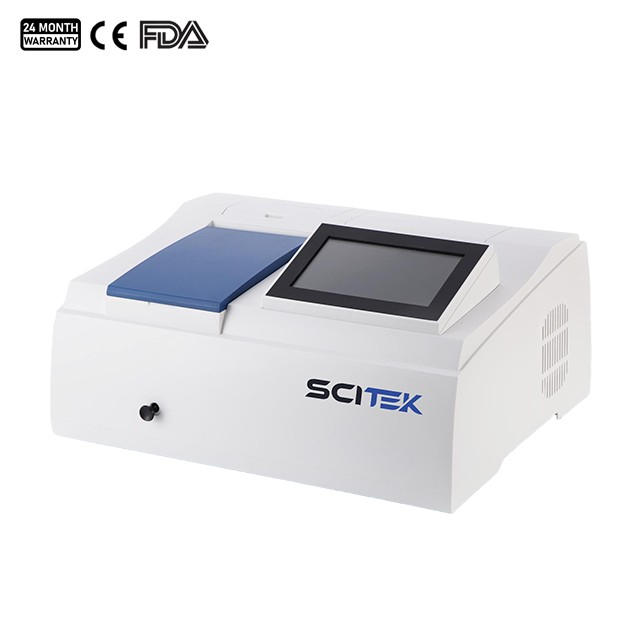

UV-Vis Spectrophotometer, SP-UV4S/SP-UV4

Model : SP-UV4S; SP-UV4

Photometry : Single Beam
Focal Length : 160 mm
Grating : 1200 lines/mm
Detector : Silicon Photocell
Spectrum Bandwidth : 2 nm
Wavelength Range : 190-1100 nm
It provides long-lasting, reliable performance for various applications in scientific, pharmaceutical, and environmental analysis.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

The UV-Vis Spectrophotometer offers advanced features designed for efficient and precise analysis.

With a 7-inch multi-color touch screen and patented technology, it ensures easy human-computer

interaction with clear data displays. The built-in thermal printer allows instant printouts of test results,

simplifying data report creation. The USB communication port, paired with UVWIN8 professional software (optional),

supports data processing, mapping, and file storage, enabling easy secondary development. It provides long-lasting,

reliable performance for various applications in scientific, pharmaceutical, and environmental analysis.

Advantage:

7-inch multi color touch-screen and patented technology to achieve simple and effective human-computer

interaction with a clear display of test data.

2. A built- in thermal printer to achieve printout of test results so as to facilitate the formation and retention of data reports.

3. A USB communication port and UVWIN8 professional data processing software (optional) to achieve data processing

and mapping functions and storage of massive amounts of data files, and to facilitate the secondary development by customers.

4. Automatic wavelength setting, fast and accurate.

5. Functions such as wavelength scanning (SP-UV4S model only), kinetic time scanning, automatic wavelength,

linear regression, direct read-out of concentration, peak detection, regular printing and etc.

6. Advanced power shut-down protection measures to memorize detected data, regression equation and

instrument correction parameters to achieve fast initialization.

7. Tungsten lamp and deuterium lamp (SP-UV4S model only) with lifetime protection.

Specification:

Model	SP-UV4S	SP-UV4
Photometry	Single Beam
Monochromator Type	Czerny-Turner
Focal Length	160 mm
Grating	1200 lines/mm
Detector	Silicon Photocell
Spectrum Bandwidth	2 nm
Wavelength Setting	7-inch color touch-screen
Wavelength Range	190-1100 nm
Wavelength Accuracy	±1 nm
Wavelength Repeatability	≤0.5 nm
Scanning Speed	Fast-Medium-Slow	---
Stray Light	≤0.1% T (at 220 nm NaI, 360 nm NaNo₂)
Photometric Range	0.0-200.0% T; -0.301-4.000 A; 0.000-9999 C;


Photometric Accuracy	±0.5% T; ±0.004 Abs (0-0.5A); ±0.008 Abs (0.5-1A);


Photometric Repeatability	≤0.2% T; 0.002 Abs (0-0.5A); 0.004 Abs (0.5-1A)


Noise	100%(T) noise≤0.2% (T); 0%(T) noise≤0.1% (T);
Power	AC 220±22 V, 50±1 Hz, 120 W
Standrad Accessories	Operation manual 1pc; Glass cuvette 10 mm 4pcs; Quartz cuvette 10 mm 2pcs; Power cable 1pc; Fuse 2pcs; Cuvette holder 10 mm;





Optional Accessories	UV WIN8 station pro software; Cuvette holder 50; 100 mm; Cuvette 20; 30; 50; 100 mm;


External Size (W×D×H)	480×370×240 mm
Shipping Size (W×D×H)	650×525×400 mm
N.W/G.W.	12.9 / 16.9 kg
