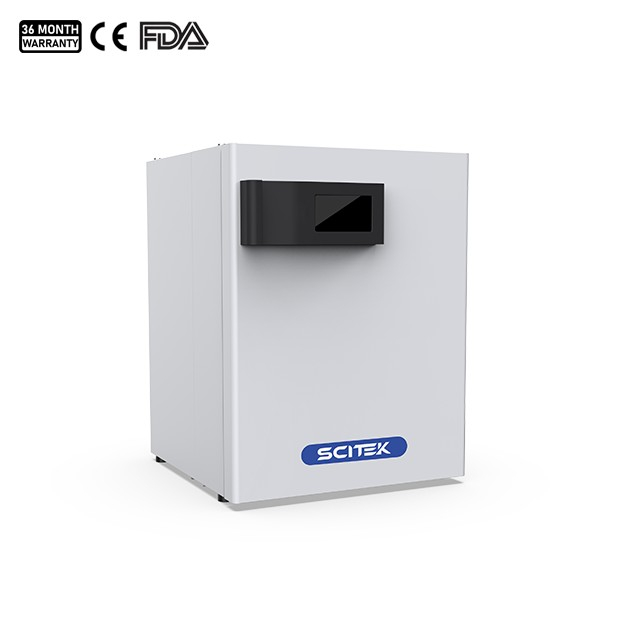

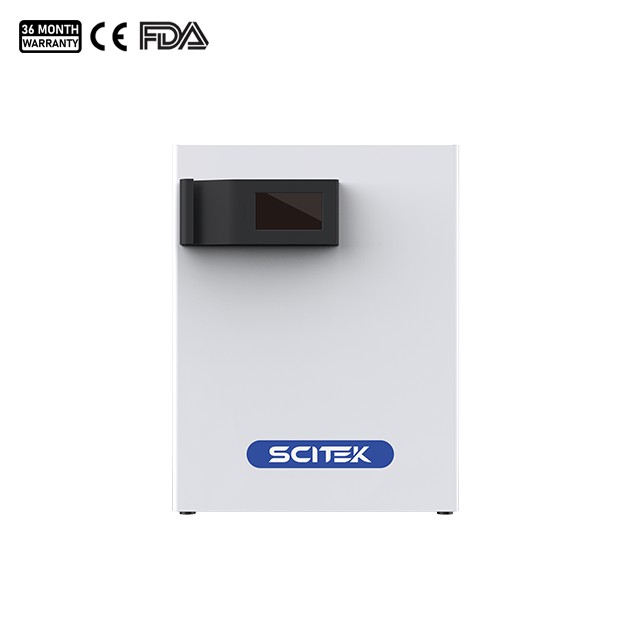

Semiconductor Incubator

Model: ICB-200S

Capacity: 200 L
Temperature Range: 0~70 °C
Heating Program Setting: 5×100 steps
Standard Interface: USB, RS485
Shelves: 3
Availability:

Semiconductor low-temperature constant temperature incubators are widely used in laboratories in fields such as biology, agriculture, environmental protection, pharmaceutical, drug testing, and aquaculture. They are ideal temperature control equipment for microbial culture, breeding experiments, and sample storage under low-temperature conditions.

Semiconductor Incubator Feature:

1. Semiconductor(Peltier)cooling/heating technology allows for rapid switching. A single module can replace both discrete heating and cooling systems.

2. No refrigerant required, no leaks, no pollution. It operates without noise or vibration, and has a long lifespan.

3. Dual PT100 temperature sensors, polyurethane foam insulation, and high-precision temperature control.

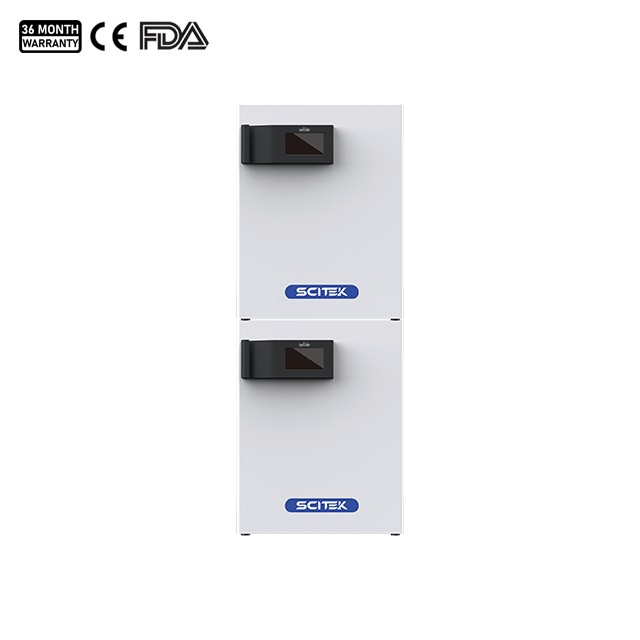

4. 7-inch touchscreen, real-time data display, three-level access control, password protection, double-layer stackable design.

5. An independent ambient temperature sensor automatically adjusts heating based on changes in ambient temperature to prevent temperature overshoot within the chamber.

6. The cabinet features a glass inner door and internal lighting. The inner liner and shelves are made of 304 stainless steel for easy cleaning.

7. An independent temperature limit controller automatically cuts off heating and sounds an alarm when the temperature exceeds the limit.

8. It features multiple alarm systems, such as over-temperature alarm, high and low temperature alarm, door open alarm, sensor error alarm, overheat protection, and overcurrent protection.

Semiconductor Incubator Specification:

Model

ICB-200S

Capacity

200 L

Circulation Mode

Variable air speed airflow circulation

Temperature

Range

0~70 °C

Fluctuation

±0.1 °C

Control Accuracy

0.1 °C

Uniformity

±0.2 @ 22 °C; ±0.5 @ 37 °C

Heating Program Setting

5×100 steps (max. 999 cycles)

Exhaust Hole

Standard Φ42 mm test hole

Standard Interface

USB, RS485

Shelf

3 (standard)

Power Supply

AC 220/110 V, 50/60 Hz

Consumption

400 W

Internal Size (W×D×H)

500×580×690 mm

External Size (W×D×H)

680×835×870 mm

Shipping Size (W×D×H)

745×940×1120 mm

N.W./G.W.

90/100 kg

Optional

UV lamps, shelves, stacked components, internal sockets
