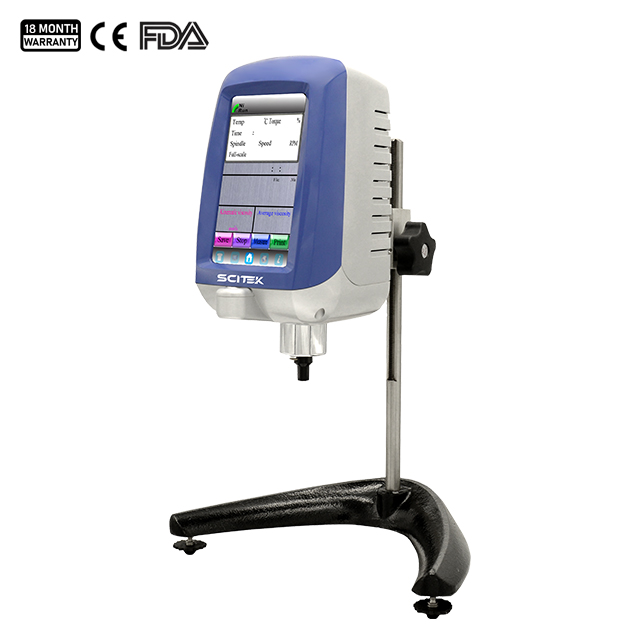

Intelligent Rheometer RV-P Series

Model : RV-P1L; RV-P1R; RV-P1HA; RV-P1HB

Rotate Speed(rpm) : 0.3-100; 0.1-200; 0.1-250;
Accuracy : ±1.0%(of full range)
Repeatability : ±0.2%
Rheometer is an advanced rheometer instrument for controlled rate and controlled stress measurements.
Availability:
Quantity:
Inquiry Add to Inquiry List

It is used for glue, latex, adhesives (solvent base), polymer solutions, oil, painting and coating, solvent, cosmetic, dairy products, medicine, juice etc.

Intelligent Rheometer Features:

  1. Shear rate and shear stress are displayed.

  2. Anti-static shell and metal lifter.

  3. ARM chip processor: higher data processing speed.

  4. New designed durable axle.

  5. Powerful human-computer interactive interface.

  6. Gigabit Ethernet port: ensure rapid and stable data transfer.

  7. External storage supports: single point, continuous and timing data.

  8. Temperature and correction factor: protected by password.

  9. Rotate speed: variety of speed and easy to choose.

  10. Auto switch between dynamic and kinematic viscosity.

  11. Variety of viscosity units and continuous viscosity testing.

  12. Sound alarm when beyond measurement range.

  13. Linear calibration by a computer.

Intelligent Rheometer Specifications:

ModelRV-P1L
RV-P1R
RV-P1HA
RV-P1HB		RV-P2L
RV-P2R
RV-P2HA
RV-P2HB		RV-P3L
RV-P3R
RV-P3HA
RV-P3HB
Range (mPa.s)RV-P1L: 1-2M
RV-P1R: 100-13M
RV-P1HA: 200-26M
RV-P1HB: 800-104M		RV-P2L: 1-6M
RV-P2R: 100-40M
RV-P2HA: 200-80M
RV-P2HB: 800-320M		RV-P3L: 0.5-6M
RV-P3R: 100-40M
RV-P3HA: 200-80M
RV-P3HB: 800-320M
Rotate Speed(rpm)0.3-1000.1-2000.1-250
SpindlesL: (#1, #2, #3, #4 spindles)(#0 is optional)
R, HA, HB: (#2, #3, #4, #5, #6, #7, 6 Spindles)(#0, #1 are optional)
Accuracy±1.0% (of full range)
Repeatability±0.2%
Display7 inch touch screen: rich information and easy to operate.
Temp.SensorBuild-in RTD temp probe
Power Supply100V-240V, powerful anti-interference
Optional AccessoriesDV Software; Thermostatic water bath; Ultra-low viscosity adapter; Small sample adapter; Standard oil; Micro printer; External circulatory glass beaker
Package Size (WxDxH)(mm)L type: 410×380×420
R, HA, HB type: 410×380×500
Gross Weight (KG)L type:10.5
R, HA, HB type: 11
Previous:
Next:
Get Quotation/Become Distributor

Related Products

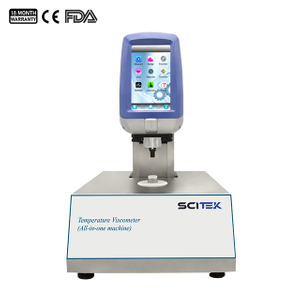

Rheometer RV-T2 Series
