It is used for glue, latex, adhesives (solvent base), polymer solutions, oil, painting and coating, solvent, cosmetic, dairy products, medicine, juice etc.
Intelligent Rheometer Features:

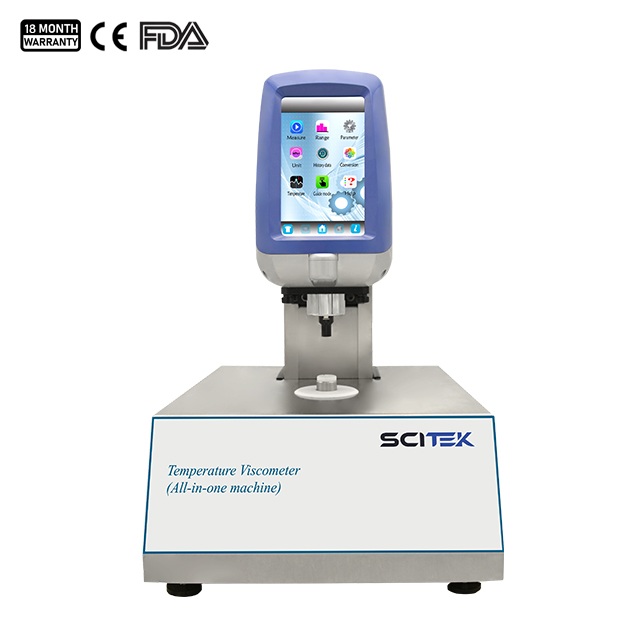

RV-T2 series is an all-in-one instrument that combines a temperature controller with a viscometer. It has broken through the old split machine in the market. The measuring system of RV-T2 is consists of a touch-screen viscometer head, a temperature controller, a small sample adapter (SSR) and its spindles. The shear rate and shear stress can be displayed on the screen. A small sample adapter can help get accurate values with only 2-16 ml sample volume under a certain shear rate(SC4 cylindrical spindles can provide more precise measurement, and small sample tube is easy to load and clean). Small sample adapter is connected with the temperature closely, so the sample temperature is more precise and heating time is shorten.Electric lifting, precise positioning.
Intelligent Rheometer Specifications:
| Model | RV-T2L | RV-T2R | RV-T2HA | RV-T2HB |
|---|
| Range(mPa.s) | 5-330,000 | 50-3.3M | 100-6.6M | 400-26.4M |
| Rotate Speed | 0.1-200 rpm (stepless variable speed) |
| Spindles | Standard configuration: SC4-21, 27, 28, 29
(Optional: SC4-14, 15, 16, 18, 25, 31, 34) |
| Sample Volume | 2-16ml |
| Temperature Range | -5℃-120℃ (Accuracy: ±0.1℃) |
| Accuracy | ±1.0 (F/S) |
| Repeatability | 0.5% (F/S) |
| Software | DV-T2 Software (RS232-USB interface) |
| Power Supply | Input AC100-240V, 50Hz/60Hz. Output DC17V1.2A |
| Package Size (WxDxH)(mm) | 490×430×650 |
| Gross Weight (KG) | 25 |
