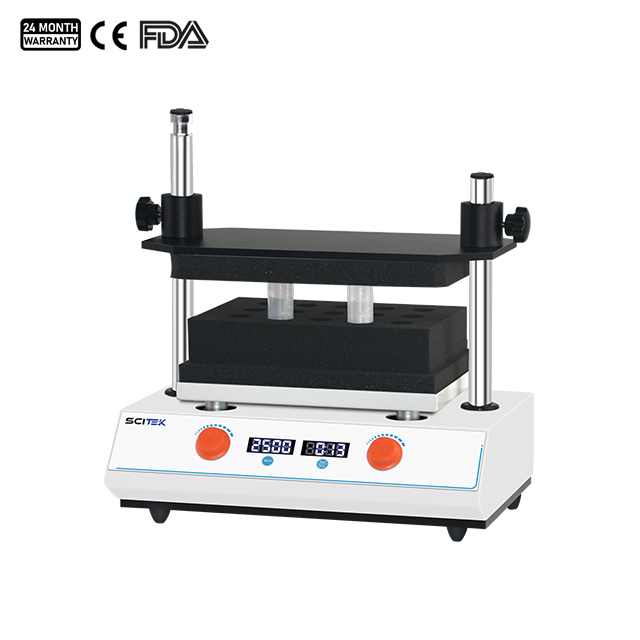

Pulse Multi-tube Vortex Mixer

Model : VMX-T200

Amplitude : 4mm horizontal rotation
Motor type : Brushless DC Motor
Speed range : 100-2500rpm ±10rpm
Size (W×D×H)(mm) : 410x276x432
Availability:
Quantity:

Pulse Multi-tube Vortex Mixer Feature:

  1. VMX-T200-001 standard configuration: 15 holes, φ26mm; Scope of application: 50ml test tube, φ26-32mm

  2. One-button knob operation mode, simple and easy to use;

  3. Set the time arbitrarily within the range of 1min~99h59min, after the end of operation, the machine will automatically emit prompt sound;

  4. A variety of sponge test tube racks are available, which are widely used;

  5. Soft start, uniform acceleration, effectively avoid sample splashing;

  6. Brushless DC motor driven, precise speed, long life, maintenance-free;

  7. Up to 50 test samples can be processed at one time, making the experiment efficient and fast;

  8. The operation panel is simple, the micro-processing capacity is precisely controlled, and the LED displays the speed and time in real time;

  9. Humanized program design, built-in pulse, continuous, jog and timing four operating modes

Pulse Multi-tube Vortex Mixer Specifications:

ModelVMX-T200
Voltage100-240V, 50/60Hz
Input power70W
Amplitude4mm horizontal rotation
Time setting range1min~99h59min
Max. load5.5kg
Motor typeBrushless DC Motor
Speed range100-2500rpm ±10rpm
Size (W×D×H)(mm)410x276x432
Shipping size (W×D×H)(mm)515x385x470
N.W./G.W. (kg)20.0/23.0
Sample capacity (test tube rack)VMX-T200-T26 (standard), optional with other models
