Availability: | |
---|---|
Quantity: | |

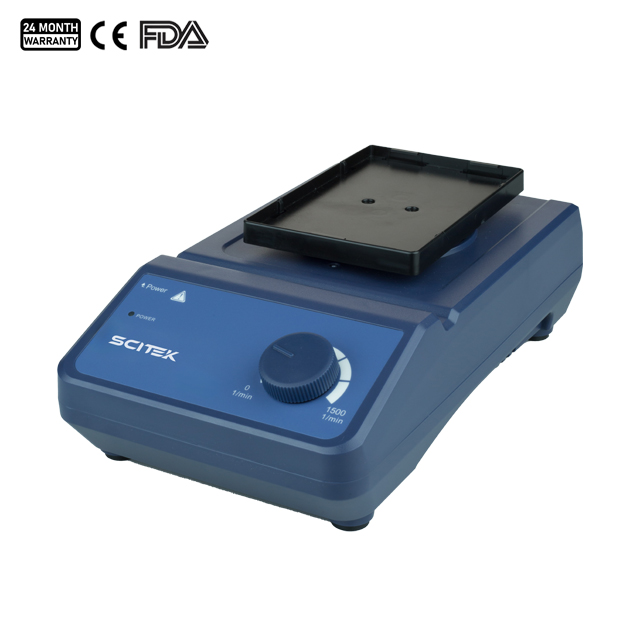

Model | VMX-M |
---|---|
Shaking Movement | Orbital |
Orbital Diameter | 4.5mm |
Max. Shaking Weight (With Accessory) | 0.5kg |
Motor Type | Brushless DC motor |
Motor Rating Input | 18W |
Motor Rating Output | 10W |
Speed Range | Single microplate: 0-1500rpm (Standard) |
Double microplate: 0-1000rpm (Optional) | |
Speed Display | Scale |
Voltage | 100-240V, 50/60Hz |
Power | 20W |
Permissible Ambient | 5-40℃, 80%RH |
Temperature and Humidity | |
Protection Class | IP21 |
Size(W×D×H)(mm) | 260x150x80 |
Shipping Size(W×D×H)(mm) | 480x260x250 |
N.W./G.W. (kg) | 2.4/3 |
Wide range of speed from 0 to 1500rpm.
Used for various mixing applications with optional adapters.
Orbital shaking motion ensures that the wells on the microplate are fully covered while mixing and improves the homogeneity of mixing.
Small orbital diameter, suitable for micro reagent mixing operation.
The maximum mixing weight is up to 0.5kg, ensuring it can meet the common mixing requirements in experiments.
Maintenance-free brushless DC motor with high efficiency, low noise and long life ensures stable and reliable mixing operation.
A wide range of micro-speed adjustments provides flexible speed selection to adapt to different experimental conditions.
Microplate mixer equipped with an intuitive scale-type speed display, users can conveniently monitor and adjust the mixing speed to ensure the accuracy of the experiment.
Model | VMX-M |
---|---|
Shaking Movement | Orbital |
Orbital Diameter | 4.5mm |
Max. Shaking Weight (With Accessory) | 0.5kg |
Motor Type | Brushless DC motor |
Motor Rating Input | 18W |
Motor Rating Output | 10W |

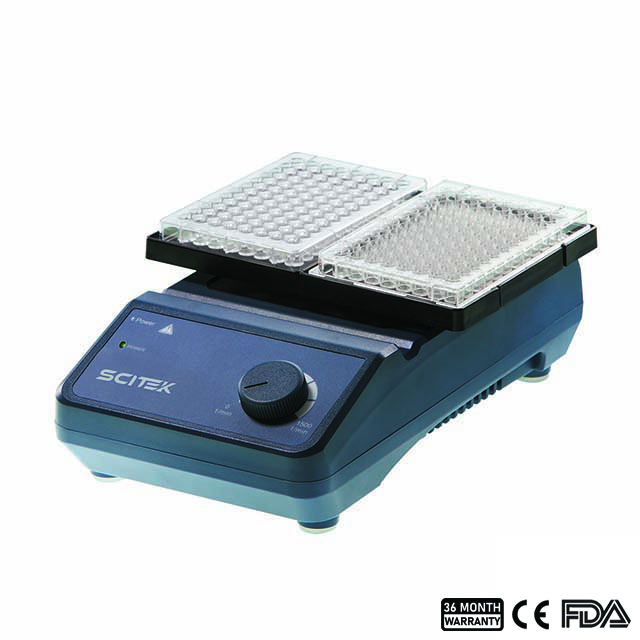

Speed Range | Single microplate: 0-1500rpm (Standard) |
Double microplate: 0-1000rpm (Optional) | |
Speed Display | Scale |
Voltage | 100-240V, 50/60Hz |
Power | 20W |
Permissible Ambient | 5-40℃, 80%RH |
Temperature and Humidity | |
Protection Class | IP21 |
Size(W×D×H)(mm) | 260x150x80 |
Shipping Size(W×D×H)(mm) | 480x260x250 |
N.W./G.W. (kg) | 2.4/3 |
Wide range of speed from 0 to 1500rpm.
Used for various mixing applications with optional adapters.
Orbital shaking motion ensures that the wells on the microplate are fully covered while mixing and improves the homogeneity of mixing.
Small orbital diameter, suitable for micro reagent mixing operation.
The maximum mixing weight is up to 0.5kg, ensuring it can meet the common mixing requirements in experiments.
Maintenance-free brushless DC motor with high efficiency, low noise and long life ensures stable and reliable mixing operation.
A wide range of micro-speed adjustments provides flexible speed selection to adapt to different experimental conditions.
Microplate mixer equipped with an intuitive scale-type speed display, users can conveniently monitor and adjust the mixing speed to ensure the accuracy of the experiment.
