Multiparameter Benchtop Turbidimeter

Model : TB-B200

Measuring Range : 0 to 2000 NTU / 0 to 500 EBC / 0 to 9999 ASBC
Minimum Resolution(NTU)  : 0.01, 0.1, 1, automatic
Accuracy : ±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU)
Calibration : 2 to 7 points
Calibration Standard : 0.02 / 10 / 200 / 500 / 1000 / 1500 / 2000 NTU
This benchtop turbidimeter is designed to measure turbidity and TSS quickly and easily in the laboratory.
Availability:
Quantity:

Multiparameter benchtop turbidimeter with a total suspended solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units, the meter is suitable for laboratory use.

Benchtop Turbidimeter Specifications:

Model TB-B200
Turbidity Measuring Range 0 to 2000 NTU/0 to 500 EBC/0 to 9999 ASBC
Minimum Resolution (NTU) 0.01, 0.1, 1, automatic
Accuracy ±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU)
Calibration 2 to 7 points
Calibration Standard 0.02/10/200/500/1000/1500/ 2000 NTU
TSS Range Depending on the TSS conversion factor
Resolution 0.1 / 1
Accuracy ±3% of reading
Other Specification Light Source Infrared-emitting diode, wavelength 850 nm
Detector Silicon photodiode
Stray Light < 0.02 NTU
Sample Vial 60×25(Ø) mm
Sample Volume (ml) 20
Auto-Power Off 2 hours after last key pressed
Memory Stores up to 200 data sets
Output USB communication interface
Display 4.5 inches TFT LCD
Power Supply 12V DC power adapter
Size(W×D×H)(mm) 250x177x96
Shipping Size (W×D×H)(mm) 300x200x200
N.W./G.W.(kg) 1.2/1.5

Benchtop Turbidimeter Features:

  1. Multiparameter benchtop turbidimeter is equipped with a 4.5 inches TFT display.

  2. 2 to 7 points calibration using the Formazin Standards.

  3. Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.

  4. TSS conversion factor ensures the accurate measurement of total suspended solids.

  5. Auto-read function senses and locks a stable reading.

  6. Setup menu allows setting the date and time, measurement mode, resolution, auto-power off, etc.

  7. Password protection prevents the unauthorized calibration and settings.

  8. Expanded memory stores or recalls up to 200 data sets.

  9. Reset function automatically resumes all settings back to the factory defaults.

  10. USB communication interface enables easy transfer of data from the meter to a PC.

Application of Benchtop Turbidimeter:

  1. Industrial wastewater plants

  2. Municipal water and other industrial applications

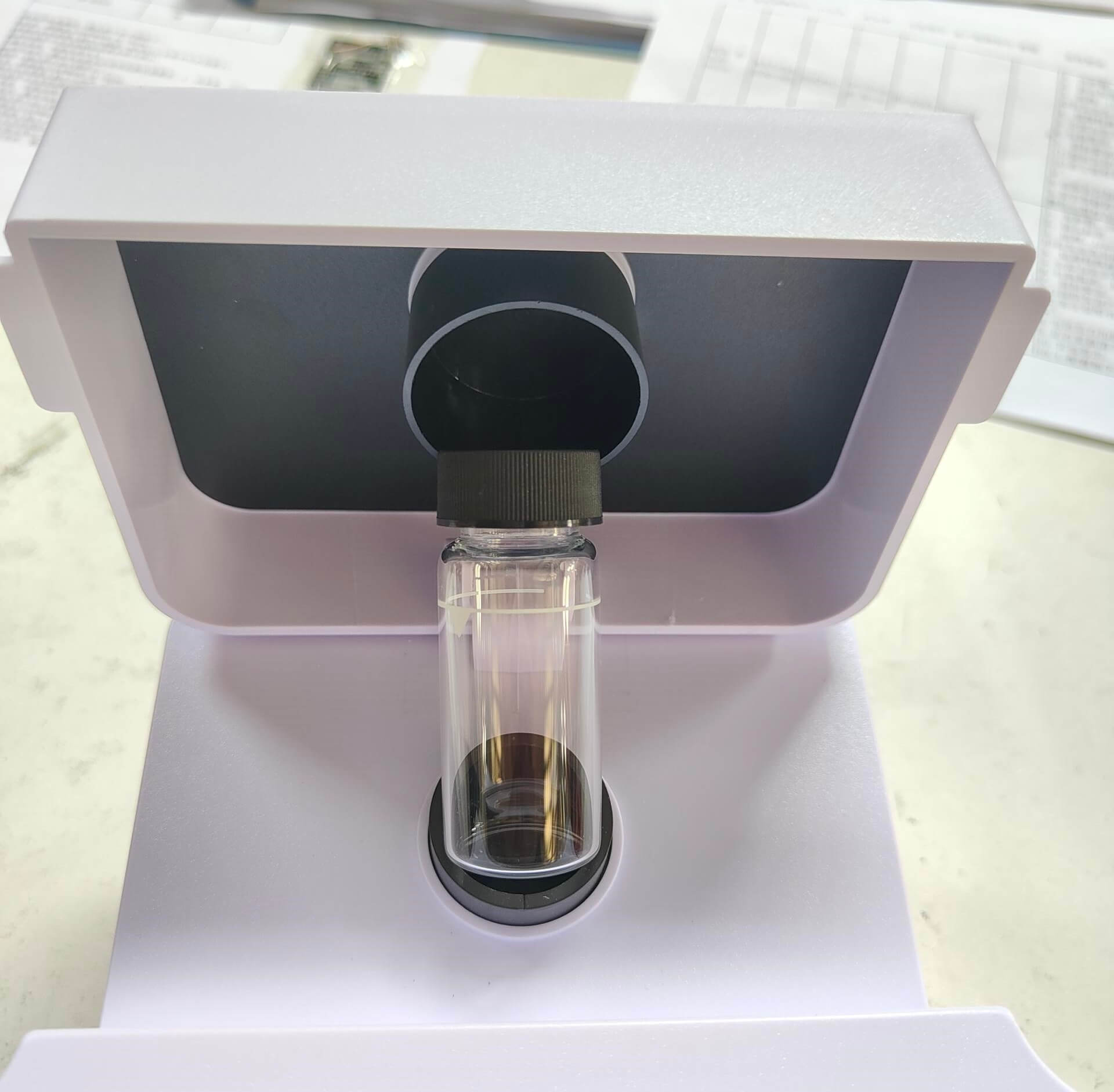

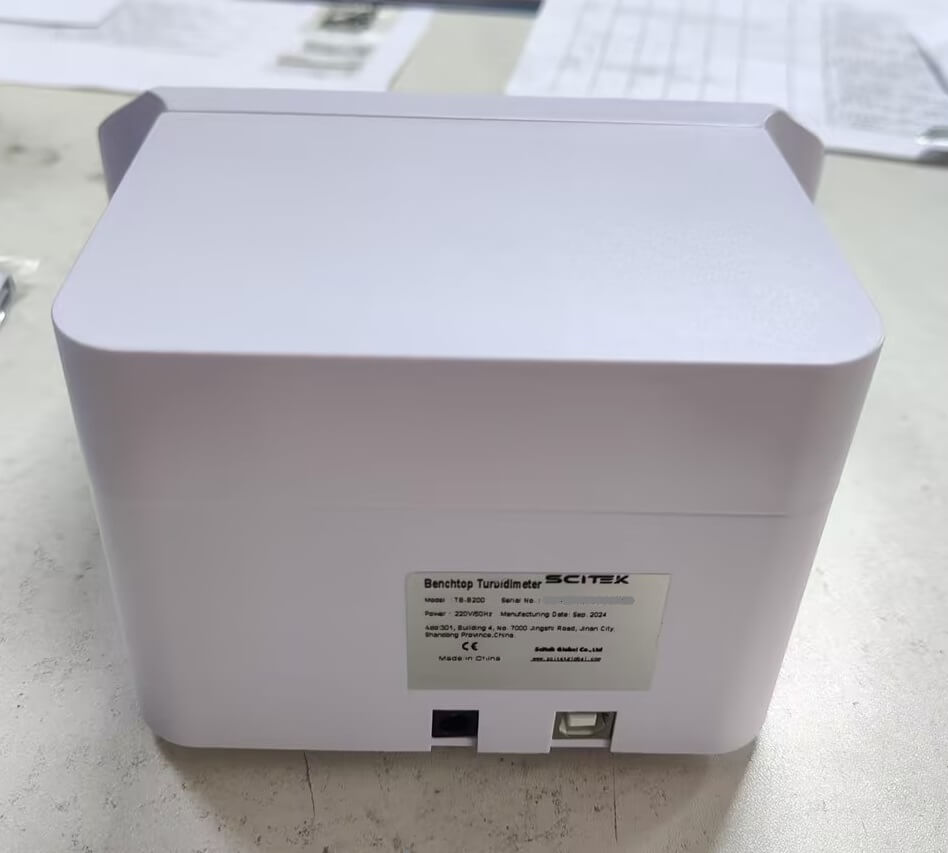

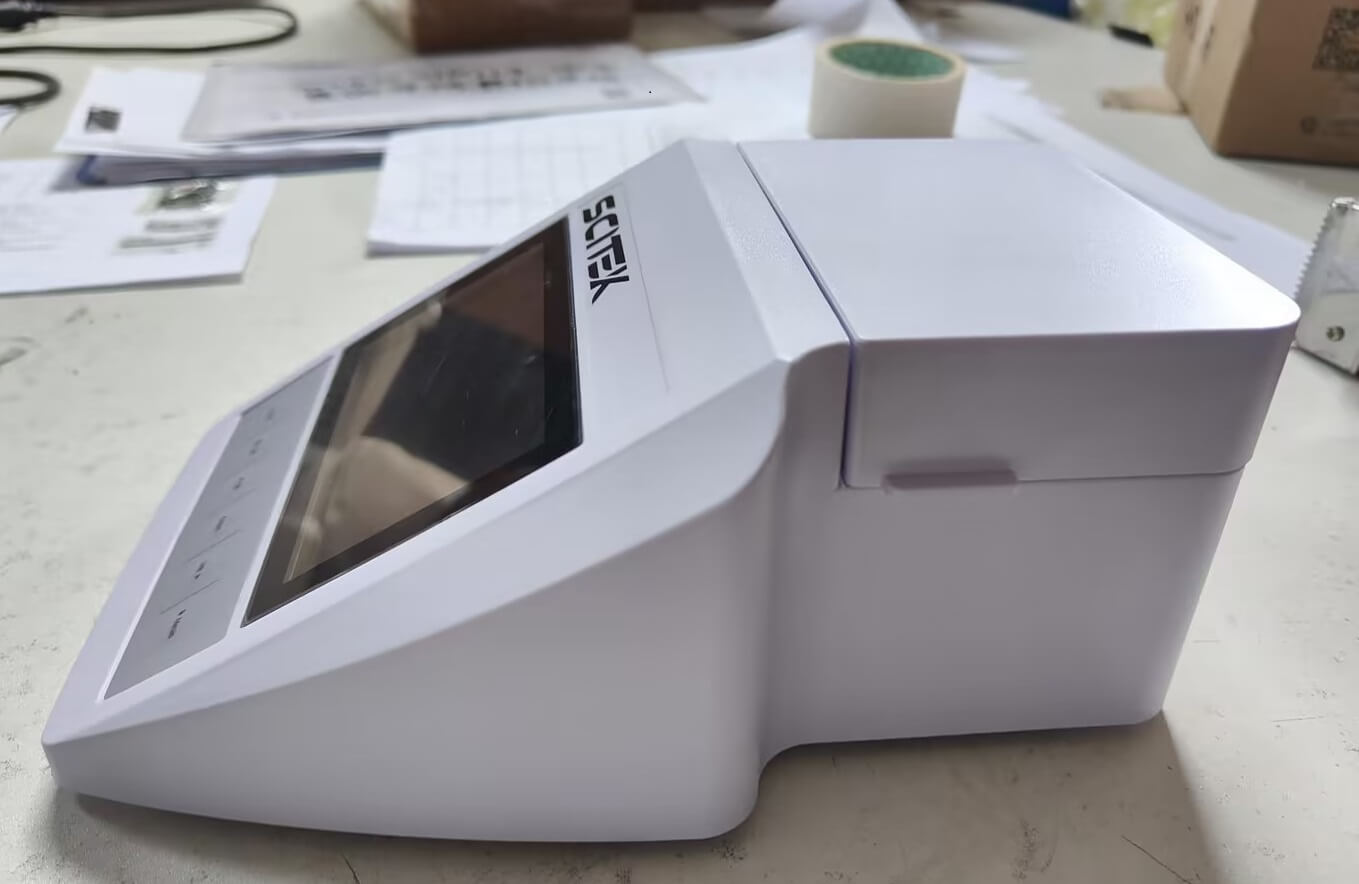

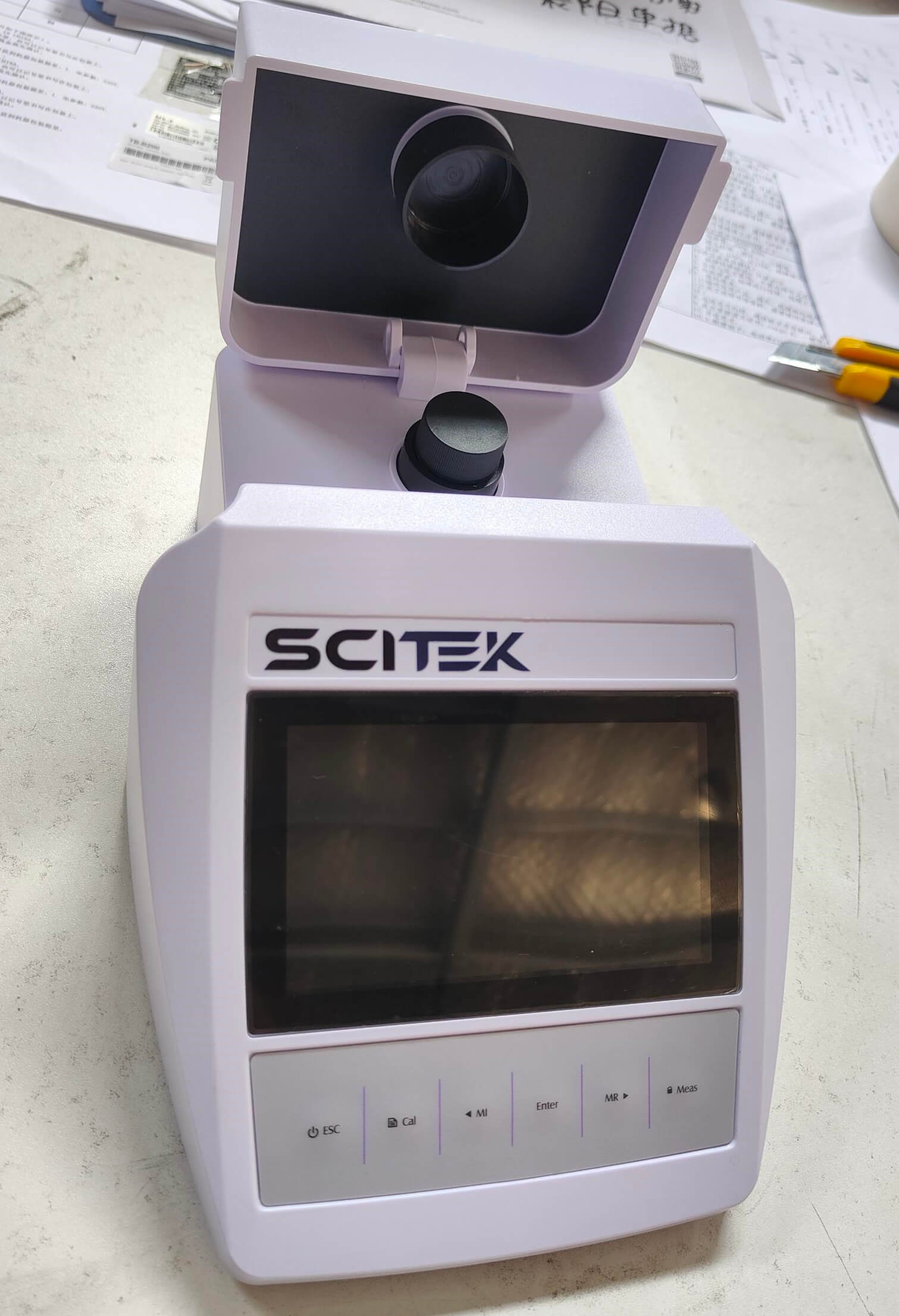

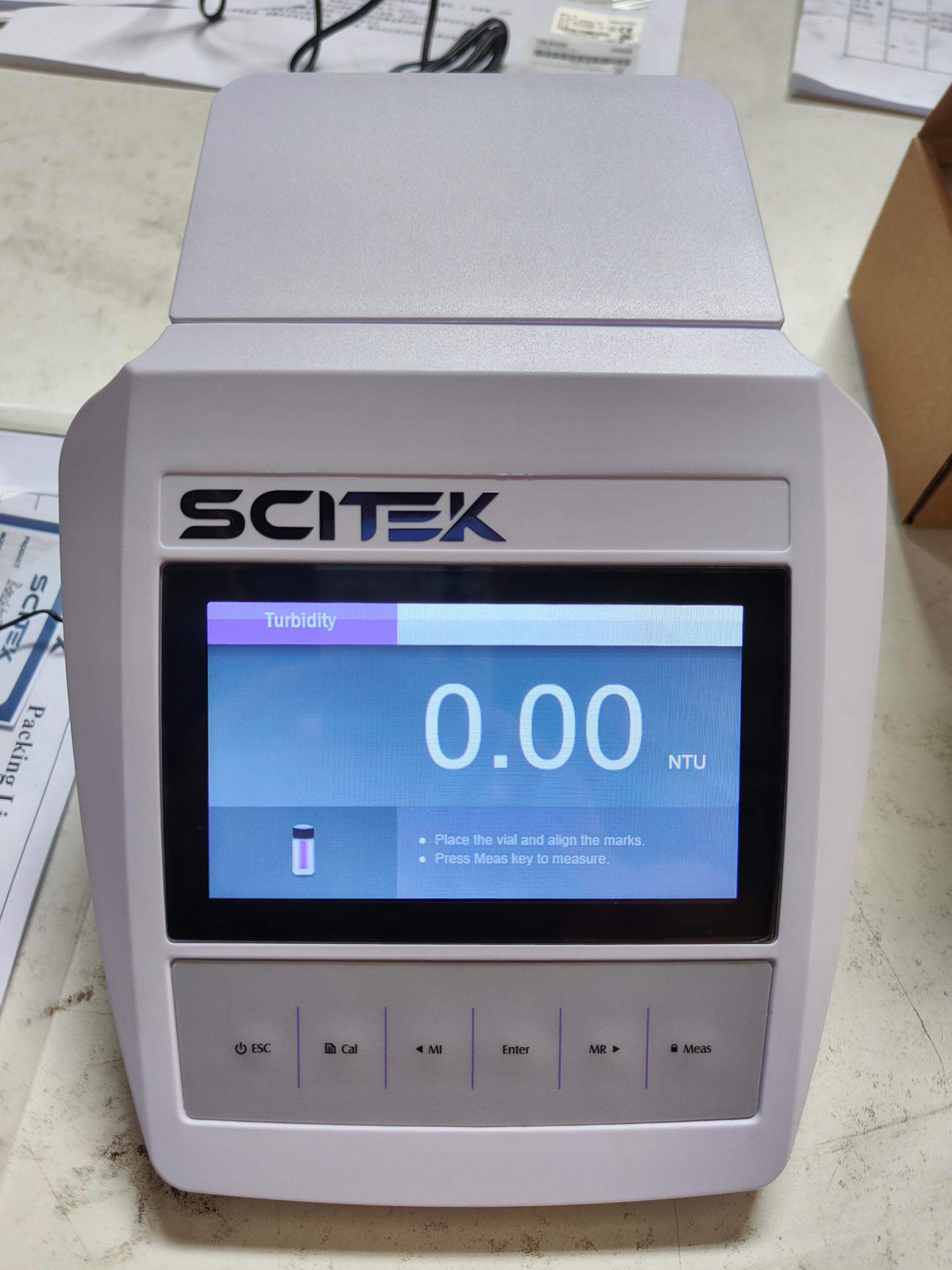

Multiparameter Benchtop Turbidimeter Detail:

Multiparameter Benchtop Turbidimete
Multiparameter Benchtop Turbidimete-1
