This multifunctional grinder can grind samples of different mechanical properties, including hard, soft, brittle, elastic, hydrated and fibrous samples. It can grind a wide variety of samples and can be applied in multiple fields such as molecular, chemical, plant, environmental and mining.

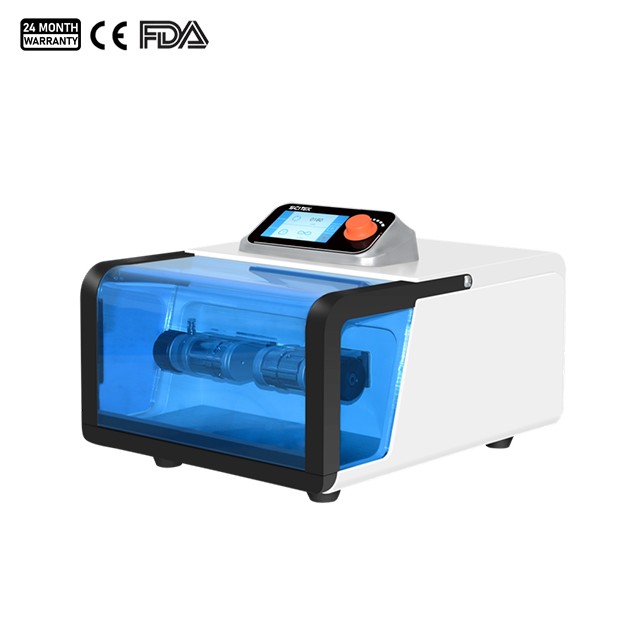

The GM-H400 multifunctional grinder is specially designed to handle fine grinding, especially for fine grinding of hard, medium-hard and brittle specimens in the laboratory. The specimen range contains specimens of grains, oil seeds, soil, tobacco, wood, animal feed, cheese, fruits, bones, hair, plant and animal tissues, fertilizers, electronic waste, sludge, alloys, coal, ores, chemicals, plastics, ceramics, glass, DNA extraction, etc.
Advantages & Features:
1. Features a large-screen touchscreen interface for intuitive operation, setting and display.
2. Equipped with memory function, which can store many kinds of operation procedures.
3. Grinding time can be Intelligent controlled. Time and speed can also be set and displayed.
4. High reproducibility of grinding results.
5. Fast grinding and homogenization with short grinding time, which can be used for XRF analysis with high processing capacity of rapid sample preparation.
6. Dual chamber grinding and the ability of high throughput grinding for biological specimens.
7. For most samples it takes only a few tens of seconds to grind, mix and homogenize.
Specifications:
Model
HMD-400
Features
Crushing ,grinding ,mixing and homogenizing
Specimen Type
Hard, soft, brittle, elastic, hydrated, fibrous
Sample Feed Size (mm)
40
Sample Discharge Particle Size (μm)
about 5-10
Capacity (mL)
≤ 2×50
Standard Grinding Duration (min)
1-3
Grinding Mode
Dry grinding, wet grinding, low temperature grinding, high throughput grinding
Grinding Chamber qty
2
Grinding Chamber Category
Screw-cap chambers (various material options)
Speed (rpm)
60-2100
Frequency (Hz)
1-35
Grinding Time (min)
0-9999
Power (W)
250
W×H×D (mm)
395×475×300
N.W. (kg)
About 28
Application:
The GM-H400 multifunctional grinder is specially designed to handle fine grinding, especially for fine grinding of hard, medium-hard and brittle specimens in the laboratory. The specimen range contains specimens of grains, oil seeds, soil, tobacco, wood, animal feed, cheese, fruits, bones, hair, plant and animal tissues, fertilizers, electronic waste, sludge, alloys, coal, ores, chemicals, plastics, ceramics, glass, DNA extraction, etc.
Advantages & Features:
1. Features a large-screen touchscreen interface for intuitive operation, setting and display.
2. Equipped with memory function, which can store many kinds of operation procedures.
3. Grinding time can be Intelligent controlled. Time and speed can also be set and displayed.
4. High reproducibility of grinding results.
5. Fast grinding and homogenization with short grinding time, which can be used for XRF analysis with high processing capacity of rapid sample preparation.
6. Dual chamber grinding and the ability of high throughput grinding for biological specimens.
7. For most samples it takes only a few tens of seconds to grind, mix and homogenize.
Specifications:
Model
HMD-400
Features
Crushing ,grinding ,mixing and homogenizing
Specimen Type
Hard, soft, brittle, elastic, hydrated, fibrous
Sample Feed Size (mm)
40
Sample Discharge Particle Size (μm)
about 5-10
Capacity (mL)
≤ 2×50
Standard Grinding Duration (min)
1-3
Grinding Mode
Dry grinding, wet grinding, low temperature grinding, high throughput grinding
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
