Single stage multi rotary vacuum pump has a small volume and is suitable for indoor installation. It follows the principle of rotary operation, utilizing oil seal gaps, lubricating blades, and compression heat to separate oil from exhaust gas through an exhaust filter. After pumping the gas and vapor, the vacuum pump can evacuate the container or vacuum system from the vacuum range. It is suitable for extracting water vapor under the allowable pressure.
Single stage multi rotary vacuum pump is suitable for extracting air and other dry, non-toxic, non corrosive, and non explosive gases.

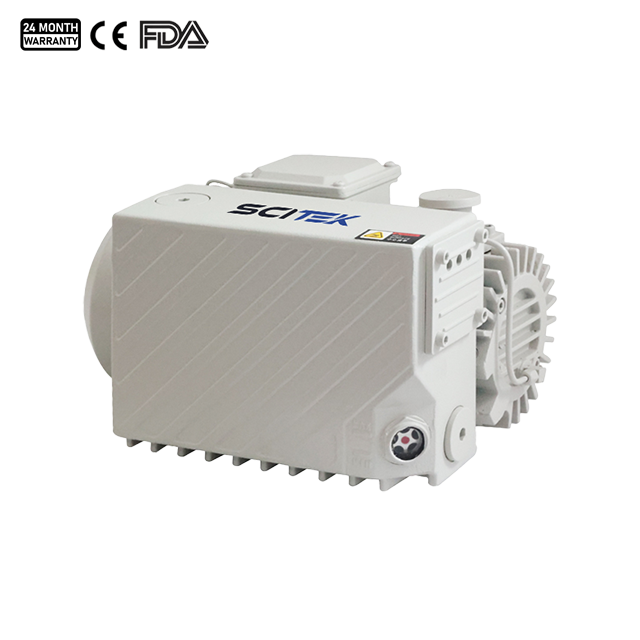

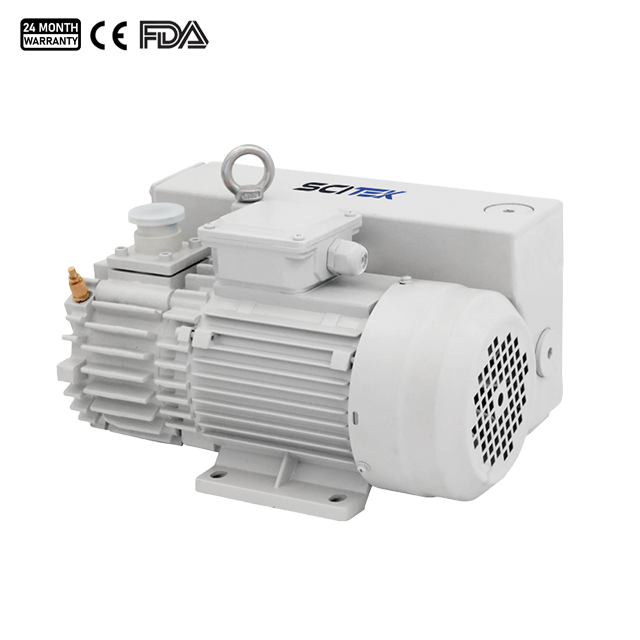

Single Stage Multi Rotary Vane Vacuum Pump Specifications:
| Model | VP-RS10 | VP-RS16 | VP-RS20 | VP-RS25 |
|---|
| Pumping Speed(m³/h) | 50Hz | 10 | 16 | 20 | 25 |
| 60Hz | 12 | 19.2 | 24 | 30 |
| Ultimate totalpressure (Pa) | 150 | 100 |
| Power supply (kW) | 0.75 | 0.9 |
| Inlet connector (inch) | G1/2(KF25) |
| Rotary speed (rpm) | 2800 |
| Oil capacity (L) | 0.3 | 0.3 | 0.5 | 0.5 |
| G.W(kg) | 18 | 18 | 20 | 20 |
| NoisedB(A) | 75 | 75 | 78 | 78 |
| Size(WxDxH)(mm) | 328x228x212 | 328x228x212 | 335x232x243 | 335x232x243 |
Single Stage Multi Rotary Vane Vacuum Pump Features:
Fluororubber seals improve corrosion resistance and prevent oil leakage issues.
Integrated design of pump and motor, with simple and compact structure.
Innovative exterior design, small size, easy to carry.
Unique filter design reduces oil mist discharge and extends the service life of the filter.
High precision machining center ensures high reliability and precision.
Built in oil backflow prevention device, no oil backflow during shutdown.
Scope of application:
Food packaging, processing, filling, and preservation;
Composite material molding;
Vacuum handling, loading and unloading;
ZVacuum defoaming and filling;
Bacterial filtration at hospital negative pressure station.
