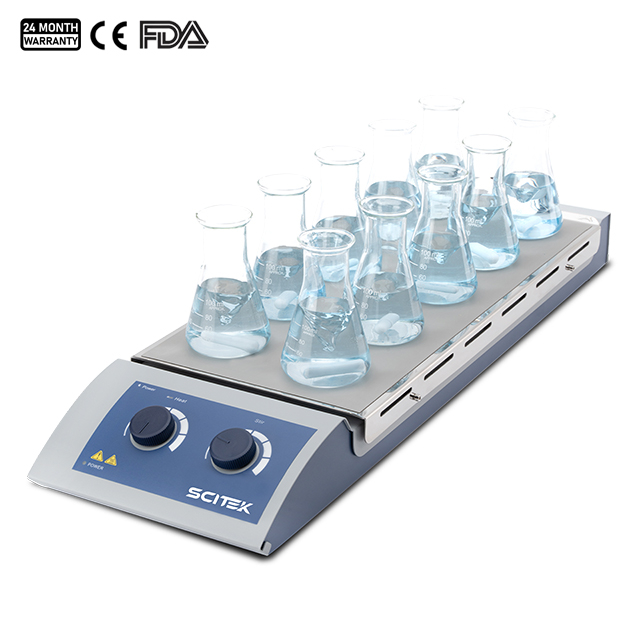

| Model | MMS-H10 |
|---|---|
| Work Plate Size (WxD) | 180x450mm |
| Work Plate Material | Stainless steel with silicone |
| Motor Type | Brushless DC motor |
| Stirring Positions | 10 |
| Max. Stirring Quantity | 0.4Lx10 |
| Max. Magnetic Bar (Length) | 40mm |
| Speed Range | 0-1100rpm |
| Speed Display | Scale |
| Temperature Display | Scale |
| Heating Temperature Range | Room temp.-120°C |
| Overheating Protection | 140°C |
| Protection Class | IP42 |
| Motor Rating Input | 12W |
| Motor Rating Output | 4W |
| Power | 490W |
| Heating Output | 470W |
| Permissible Ambient Temperature and Humidity | 5-40°C, 80%RH |
| Power Supply | 100-120/200-240V 50/60Hz |
| Size(W×D×H)(mm) | 622×182×65 |
| Shipping Size(W×D×H)(mm) | 690×410×260 |
| N.W./G.W. (kg) | 3.2/7.5 |
Maintenance-free brushless DC motor.
Speed range can be adjusted from 0-1200rpm.
Temperature range covers Room temp.-120°C.
Stainless steel work board covered with non-slip silicone mat.
