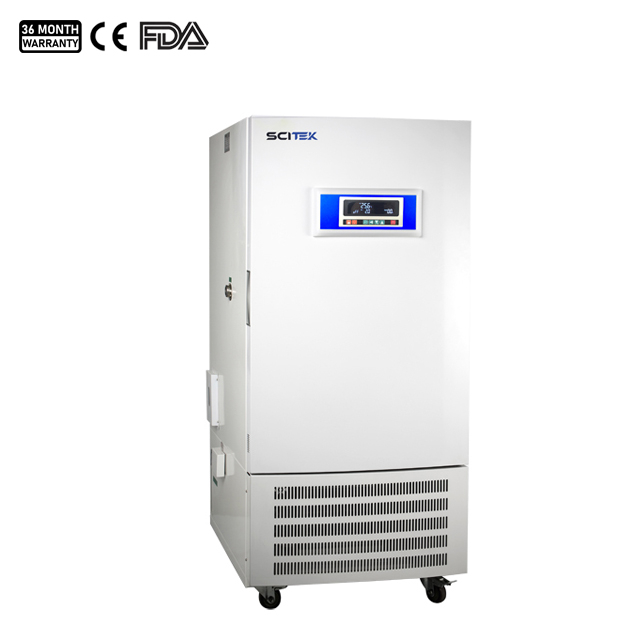

Medicine Stability Testing Chamber

Model : MSTC-175 Series

Capacity : 175L / 275L / 375L / 475L / 800L / 1075L
Mode : Temperature & Humidty / Temperature, Humidity & Light / Temperature & Light
Temperature Range : 0~65℃ / WithoutIllumination: 4~50℃ / WithoutIllumination: 4~50℃
Temperature Fluctuation : High ±0.5℃, Low ±2℃

Availability:
Quantity:
Inquiry Add to Inquiry List

Medicine Stability Testing Chamber Specification:

ModelMSTC-175HT / MSTC-175HTI
MSTC-275HT / MSTC-275HTI
MSTC-375HT / MSTC-375HTI
MSTC-475HT / MSTC-475HTI
MSTC-800HT / MSTC-800HTI
MSTC-1075HT / MSTC-1075HTI		MSTC-175L / MSTC-175LI
MSTC-275L / MSTC-275LI
MSTC-375L / MSTC-375LI
MSTC-475L / MSTC-475LI
MSTC-800L / MSTC-800LI
MSTC-1075L / MSTC-1075LI		MSTC-175TL
MSTC-275TL
MSTC-375TL
MSTC-475TL
MSTC-800TL
MSTC-1075TL
ModeTemperature & HumidityTemperature, Humidity & LightTemperature & Light
Temperature Range0~65℃WithoutIllumination: 4~50℃
Temperature FluctuationHigh ±0.5℃, Low ±2℃
Temperature Uniformity±2℃
Humidity Range(RH)30 - 95%/
Humidity Stability(RH)±3%RH/
Temperature Resolution0.1℃
Illumination/0 - 6000Lux adjustable
Illumination Difference/≤ ±500Lux
Timing Range1 - 99 hours/period
Temp.and Humidity AdjustingBalance temperature and humidity adjustingBalance temperature adjusting
Cooling SystemImported compressor
SensorPT100Capacitance sensorPT100
Ambient TemperatureRT+5~30℃
Power SupplyAC220V±10%, 50HZ
Power Rating(W)1400/1950/2600/2800/3000/32001650/2200/2700/2900/3100/33001300/1750/2400/2600/2700/2800
Chamber Volume(L)175/275/375/475/800/1075
Shelf3
PrinterYes
Safety DeviceCompressor overheating and overpressureprotection, Fan overheating protection, Overtemperature protection, Overload protection, water shortageprotection
Chamber Size (WxDxH) (mm)450x420x930, 580x510x935, 590x550x1160, 700x550x1250, 965x610x1370, 950x700×1600
N.W./G.W.MSTC-175HT: 178kg/232kg
MSTC-275HT: 210kg/285kg
MSTC-375HT: 249kg/283kg
MSTC-475HT: 295kg/358kg
MSTC-800HT: 360kg/468kg
MSTC-1075HT: 470kg/586kg
MSTC-175HTI: 178kg/203kg
MSTC-275HTI: 210kg/260kg
MSTC-375HTI: 249kg/283kg
MSTC-475HTI: 295kg/358kg
MSTC-800HTI: 360kg/468kg
MSTC-1075HTI: 470kg/586kg		MSTC-175L: 182kg/237kg
MSTC-275L: 210kg/260kg
MSTC-375L: 249kg/283kg
MSTC-475L: 295kg/358kg
MSTC-800L: 360kg/465kg
MSTC-1075L: 470kg/586kg
MSTC-175LI: 178kg/203kg
MSTC-275LI: 210kg/260kg
MSTC-375LI: 249kg/283kg
MSTC-475LI: 295kg/358kg
MSTC-800LI: 360kg/468kg
MSTC-1075LI: 470kg/586kg		MSTC-175TL: 178kg/203kg
MSTC-275TL: 210kg/260kg
MSTC-375TL: 249kg/283kg
MSTC-475TL: 295kg/358kg
MSTC-800TL: 360kg/468kg
MSTC-1075TL: 470kg/586kg
Shipping Size (WxDxH)(mm)MSTC-175HT: 750x1860x840
MSTC-275HT: 880x1010x1860
MSTC-375HT: 870x980x2080
MSTC-475HT: 1010x1000x2250
MSTC-800HT: 1250x1030x2300
MSTC-1075HT:1200x1100x2550
MSTC-175HTI: 840x740x1880
MSTC-275HTI: 880x1010x1860
MSTC-375HTI: 870x980x2080
MSTC-475HTI: 1010x1000x2250
MSTC-800HTI: 1250x1030x2300
MSTC-1075HTI: 1200x1100x2550		MSTC-175L: 750x1860x840
MSTC-275L: 880x1010x1860
MSTC-375L: 870x980x2080
MSTC-475L: 1010x1000x2250
MSTC-800L: 1250x1040x2300
MSTC-1075L: 1200x1100x2550
MSTC-175LI: 840x740x1880
MSTC-275LI: 880x1010x1860
MSTC-375LI: 870x980x2080
MSTC-475LI: 1010x1000x2250
MSTC-800LI: 1250x1030x2280
MSTC-1075LI: 1200x1100x2550		MSTC-175TL: 840x740x1880
MSTC-275TL: 880x1010x1860
MSTC-375TL: 870x980x2080
MSTC-475TL: 1010x1000x2250
MSTC-800TL: 1250x1030x2300
MSTC-1075TL: 1200x1100x2550

Medicine Stability Testing Chamber Features:

  1. Dual refrigeration system with imported compressor and self-developed cooling system for extended compressor service life.

  2. PID control & Imported humidity sensor for precise temperature and humidity regulation with an easy-to-use menu interface.

  3. Over-temperature alarm system to ensure safe operation by automatically stopping when the limit temperature is exceeded, accompanied by audible and visual alarms.

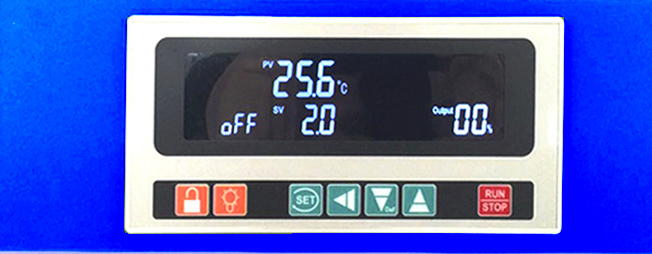

  4. Large LCD screen for displaying multiple data simultaneously.

  5. Advanced multi-segment programmable control technology for temperature and humidity with multiple programs and cycles.

  6. Built-in stainless steel water tank and pump for humidification.

  7. Spare temperature control to ensure continuous operation even in case of main control failure (for heating).

  8. Built-in printer for recording and printing operating parameters as needed.

  9. Medicine stability testing chamber is equipped with power socket and UV lamp for sterilization.

  10. Double door design. Tempered glass inner door for clear observation. The outer door adopts magnetic seal design, good sealing & performance.
