Cycle Mode : Closed cycle Lift Head : 2.7/3.4 m (50/60 Hz) Maximum Flow : 16/19 L/min (50/60 Hz) Temperature Usage Range : -20 ℃–RT Condition Liquid Temperature RT 20 ℃ Temperature Sensor : PT100 thermistor Designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures, compatible with rotary evaporators, vacuum freeze drying oven, etc.

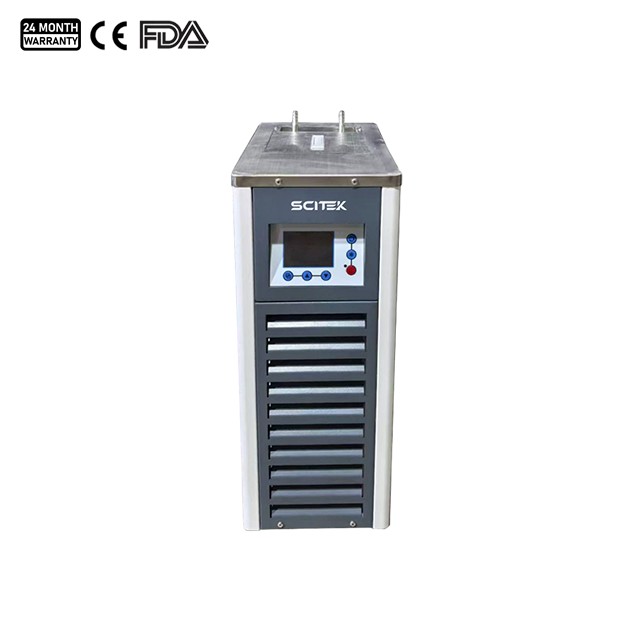

The Low-Temperature coolant circulation pump is a high-performance pump designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures. It is suitable for laboratories, industrial applications, pharmaceutical hygiene, and physical experimental testing. Additionally, it is compatible with rotary evaporators, vacuum freeze drying oven, circulating water-type multipurpose vacuum pumps, magnetic stirrer, etc.
Coolant Circulation Pump Feature:
1. Compressor: Adopting a piston compressor, it has small volume, light weight, smooth operation, low noise, and high reliability.
2. Condenser: Adopting air-cooled fin type, with oxygen free copper tube inside, high heat transfer efficiency and small heat transfer volume.
3. Evaporator: The outer layer of the copper tube is chrome plated for high heat transfer efficiency.
4. The air inlet adopts a louver style air intake to reduce air dryness and increase the heat dissipation area.
5. Adopting a low-temperature resistant magnetic pump, there is no leakage under low-temperature conditions, and the circulation pipeline uses silicone hoses.
6. The circular nozzle can rotate 360 °, making it convenient for various system connections.
7. All parts in contact with the refrigeration agent are made of stainless steel (ANSI standard) and polymer corrosion-resistant materials.
8. Set temperature and actual temperature dual row LCD display, intelligent PID algorithm, high temperature control accuracy.
9. Combined with a rotary evaporator and a vacuum pump, it forms a complete small-scale experimental device.
Coolant Circulation Pump Specification:
Model
LTC-4004
Cycle Mode
Closed cycle
Environmental Temperature
-5–38 ℃
Temperature Usage Range
-20 ℃–RT
Temperature Control Accuracy
±2 ℃
Condition Liquid Temperature
RT 20 ℃
Cooling Capacity
At–0 ℃: 480 W
At–10 ℃: 350 W
Lift Head
2.7/3.4 m (50/60 Hz)
Maximum Flow
16/19 L/min (50/60 Hz)
Temperature Control Method
Intelligent Temperature Control
Temperature Setting and Display
Film key numerical setting;
LCD screen display (minimum unit 0.1 ℃);
Temperature Controller
Digital setting, LCD display
Temperature Sensor
PT100
Cooling Machine, Refrigerant
Output power 475W (piston type), R290
Sink
The total capacity is about 4.5 L, the practical capacity is about 4L, and the material is SUS304
Cooling Coil
Purple copper (chrome plated)
Diameter of Circulating Water Nozzle
Outer diameter 10 ×Inner diameter 6
Size (W×D×H)
208×420×521 mm
Sink Size (W×D×H)
130×250×130 mm
Rated Power Supply
AC 220 V, 50 Hz
Input Power
500 W, 2.5 A
Weight
About 30 kg
The Low-Temperature coolant circulation pump is a high-performance pump designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures. It is suitable for laboratories, industrial applications, pharmaceutical hygiene, and physical experimental testing. Additionally, it is compatible with rotary evaporators, vacuum freeze drying oven, circulating water-type multipurpose vacuum pumps, magnetic stirrer, etc.
Coolant Circulation Pump Feature:
1. Compressor: Adopting a piston compressor, it has small volume, light weight, smooth operation, low noise, and high reliability.
2. Condenser: Adopting air-cooled fin type, with oxygen free copper tube inside, high heat transfer efficiency and small heat transfer volume.
3. Evaporator: The outer layer of the copper tube is chrome plated for high heat transfer efficiency.
4. The air inlet adopts a louver style air intake to reduce air dryness and increase the heat dissipation area.
5. Adopting a low-temperature resistant magnetic pump, there is no leakage under low-temperature conditions, and the circulation pipeline uses silicone hoses.
6. The circular nozzle can rotate 360 °, making it convenient for various system connections.
7. All parts in contact with the refrigeration agent are made of stainless steel (ANSI standard) and polymer corrosion-resistant materials.
8. Set temperature and actual temperature dual row LCD display, intelligent PID algorithm, high temperature control accuracy.
9. Combined with a rotary evaporator and a vacuum pump, it forms a complete small-scale experimental device.
Coolant Circulation Pump Specification:
Model
LTC-4004
Cycle Mode
Closed cycle
Environmental Temperature
-5–38 ℃
Temperature Usage Range
-20 ℃–RT
Temperature Control Accuracy
±2 ℃
Condition Liquid Temperature
RT 20 ℃
Cooling Capacity
At–0 ℃: 480 W
At–10 ℃: 350 W
Lift Head
2.7/3.4 m (50/60 Hz)
Maximum Flow
16/19 L/min (50/60 Hz)
Temperature Control Method
Intelligent Temperature Control
Temperature Setting and Display
Film key numerical setting;
LCD screen display (minimum unit 0.1 ℃);
Temperature Controller
Digital setting, LCD display
Temperature Sensor
PT100
Cooling Machine, Refrigerant
Output power 475W (piston type), R290
Sink
The total capacity is about 4.5 L, the practical capacity is about 4L, and the material is SUS304
