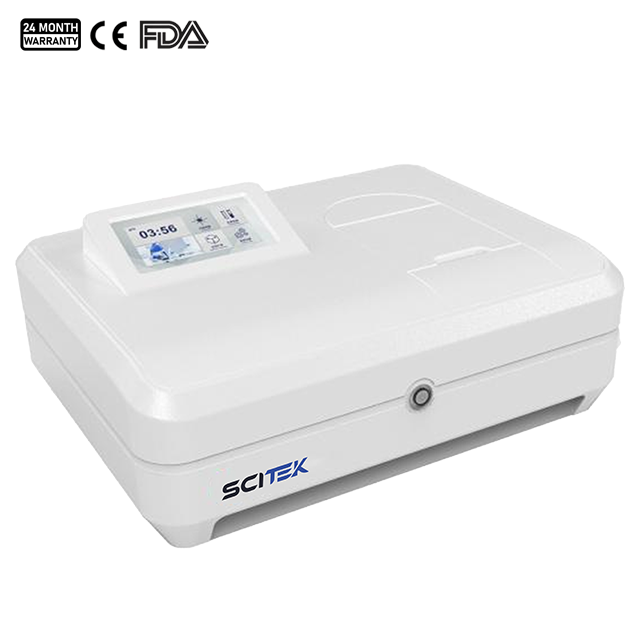

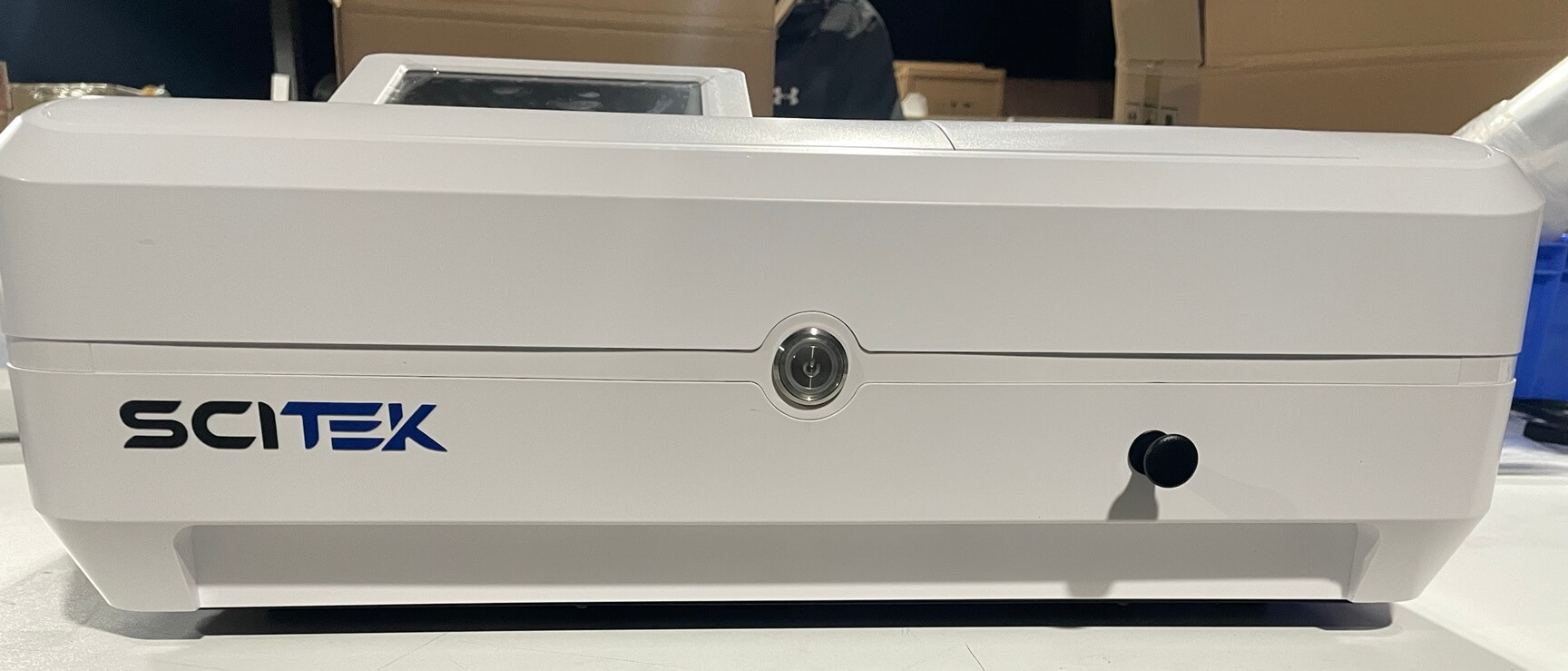

Knob Type IoT Smart UV-VIS Spectrophotometer

Model : SP-UVISL5; SP-UVISL6

Monochromator : Holographic blazed grating C-T monochromator, proportional double beam
Grating : 1200 lines/mm
Wavelength Accuracy : ±0.3nm
Wavelength Repeatability : ±0.1nm
Bandwidth : 2nm
Shipping Size(WxDxH)(mm) : 700×580×340
Economical UV Vis spectrophotometer with spectral measurement, quantitative measurement, data storage and other functions
Availability:
Quantity:

UV Vis Spectrophotometer Features:

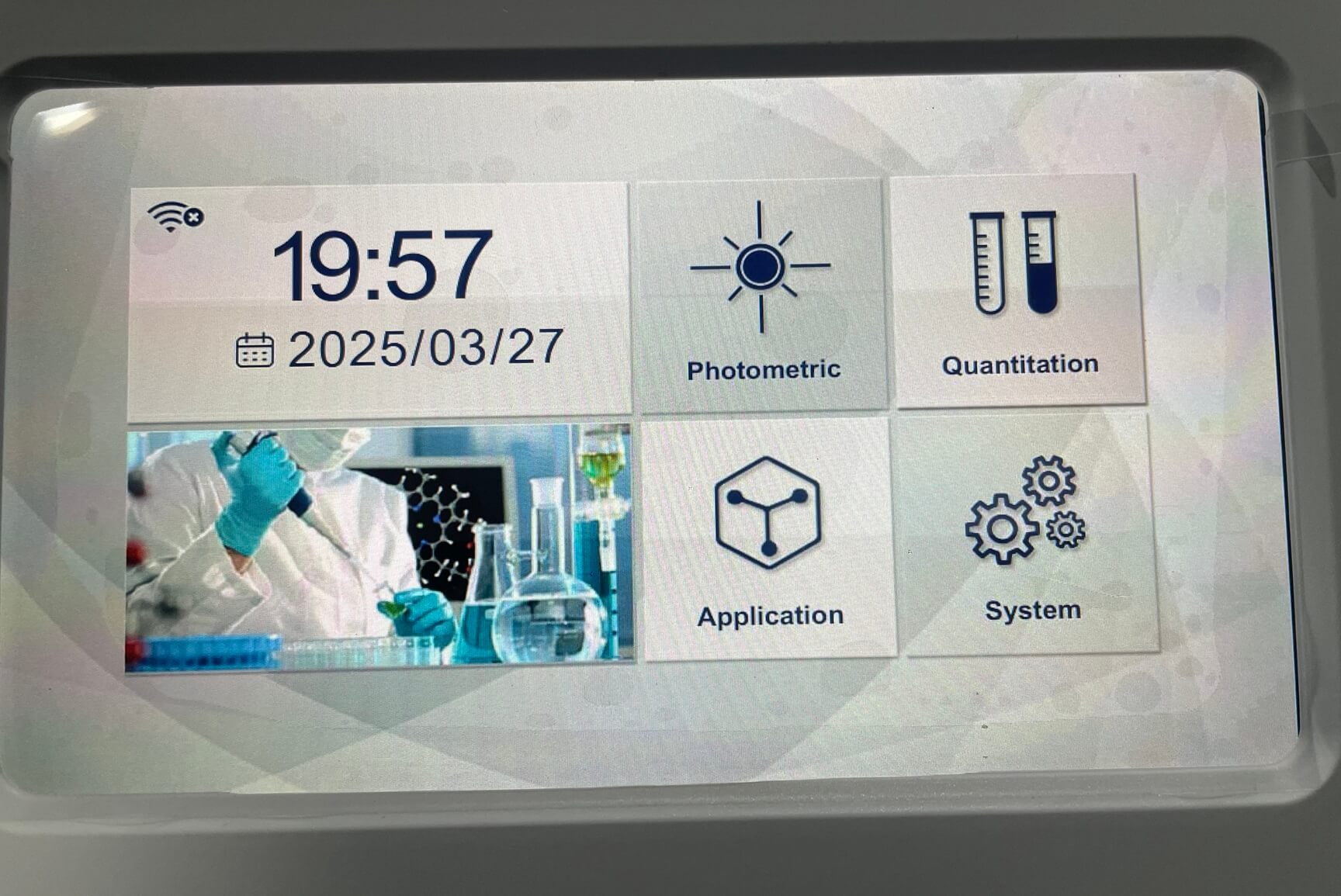

  1. Adopt high-resolution (1024*768) dot matrix 7-inch color touch LCD display, with friendly and simple operation interface.

  2. The UV-VIS spectrophotometer supports cloud storage function, which can be easily scanned by WeChat and added with the data program, which greatly facilitates customer application scenarios.

  3. SP-UVISL5/L6 uses a "blazed holographic grating" high-resolution C-T monochromator and a 24-bit high-precision AD chip from the American AD Company, so that the economical instrument has low stray light (less than 0.1T%) and high Accuracy and high stability (0.002A).

  4. The instrument has strong storage capacity and can store 500 data and 30 working curves, which greatly facilitates customer use.

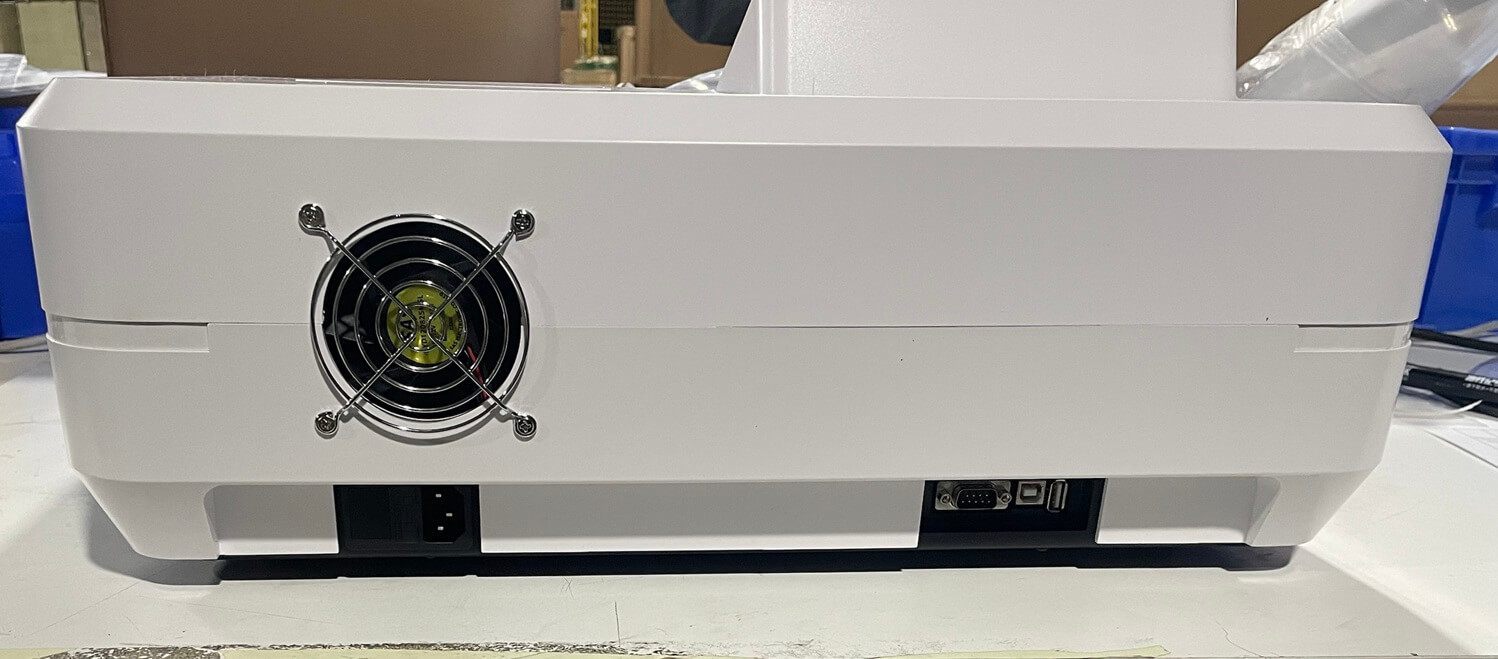

  5. The UV VIS spectrophotometer comes standard with USB interface, WIFI module, and Bluetooth module. Wireless Bluetooth printing is possible; optional connection to computer software can be used to quickly manage spectral data and facilitate data processing; it can be exported directly through a USB flash drive, and the exported data can be directly opened and edited by EXCEL, which greatly facilitates customer applications .

The world is the first to realize that economical instruments can realize basic measurement, quantitative measurement, data storage and other functions.

Automatic wavelength setting and automatic lamp switching setting. After connecting to computer software, advanced functions such as wavelength scanning, kinetic determination, quantitative determination, nucleic acid determination, wavelength superposition, and integral derivative can be realized.

UV VIS Spectrometer Specifications:

ModelSP-UVISL5SP-UVISL6
Display7-inch high-resolution 1024x768 touch screen
MonochromatorHolographic blazed grating C-T monochromator, proportional double beam
Grating1200 lines/mm
PhotocellImported silicon photodiodes
OutputUSB & Bluetooth
WIFI ModuleStandard
Wireless PrintingSupported, optional wireless Bluetooth printer
PC SoftwareOptional
LoT Module SoftwareStandard
Cuvette HolderStandard manual 1cm
Photometric Range0-200%T, -0.3-3A
Wavelength ModeAutomatic
Wavelength Accuracy±0.3nm
Wavelength Repeatability±0.1nm
Bandwidth2nm
Wavelength Range320-1100190-1100
Stray Light0.05T%
Photometric Accuracy±0.5%T, ±0.004Abs (0 ~ 0.5A); ±0.008Abs (0.5 ~ 1A)
Photometric Repeatability±0.5%T, ±0.004Abs (0 ~ 0.5A); ±0.008Abs (0.5 ~ 1A)
Photometric Stability±0.15%T, ±0.002Abs (0 ~ 0.5A); ±0.004Abs (0.5 ~ 1A)
Light Switching MethodAutomatic, 340nm (can be set at will)
Stability0.001A (500nm, 3min)
Noise0.15T%
Consumption40W120W
Power SupplyAC 220/110V, 50/60Hz
Shipping Size(WxDxH)(mm)700×580×340
N.W./G.W.(kg)12/1615/19

Optional Accessory:

  1. Automatic eight-link cuvette holder or automatic five-link long light path (5cm) cuvette holder

  2. Spectrum analyzer software

  3. 5cm or 10cm manual cuvette holder, film sample holder, test tube cuvette holder

  4. Wireless bluetooth printer
